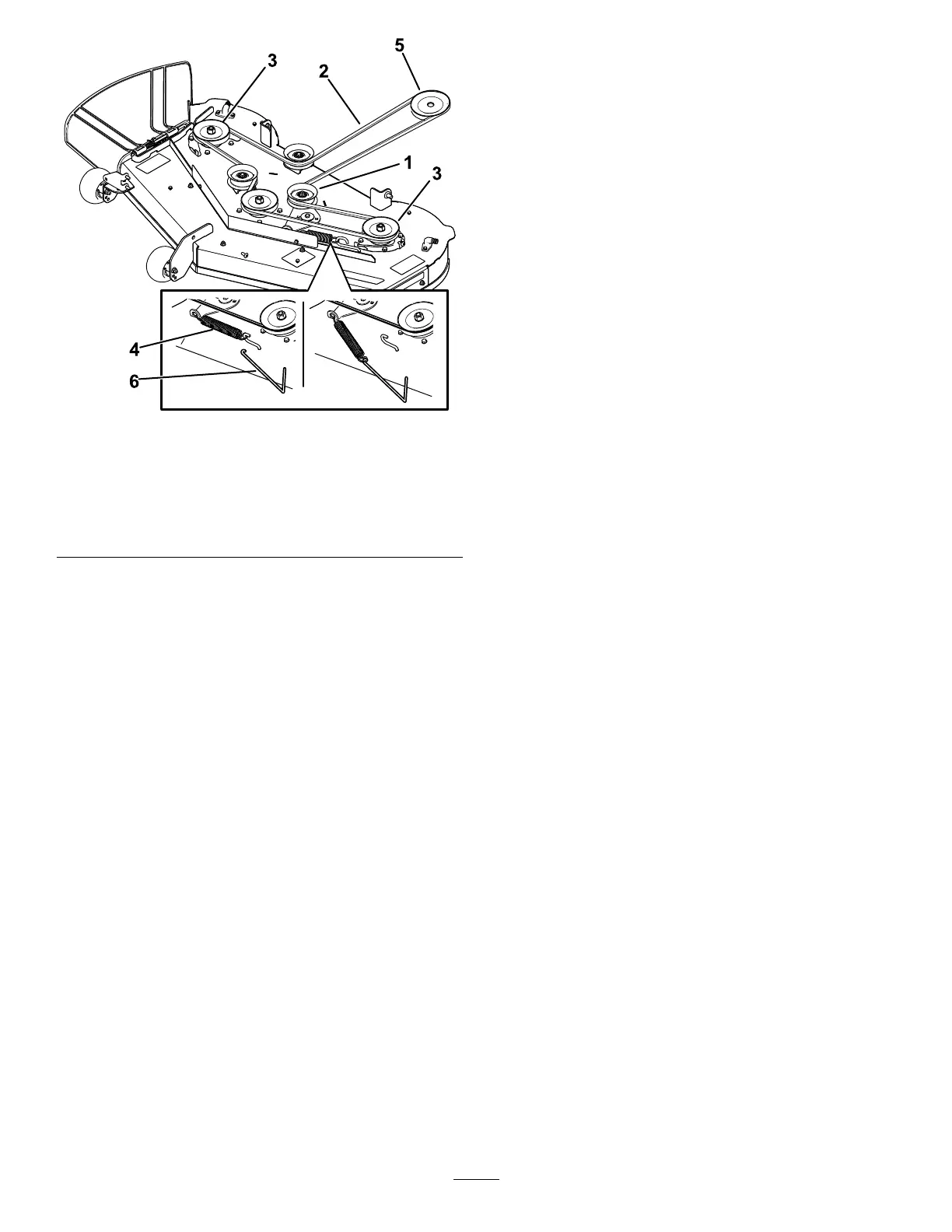

g298026
Figure3
Mowerdeckswith3blades
1.Idlerpulley
4.Spring
2.Mowerbelt
5.Enginepulley
3.Outsidepulley6.Spring-removaltool
6.Routethenewbeltaroundtheenginepulleyand
mowerpulleys(Figure2orFigure3).
7.Usingaspring-removaltool(ToroPartNo.
92-5771),installtheidlerspringoverthedeck
hookandplacetensionontheidlerpulleyand
themowerbelt(Figure2orFigure3).
8.Installthepulleycoversandsecurethemwith
thescrews.
2
