AdjustingtheHeightofCut
Note:Thetransportpositionisthehighest
height-of-cutpositionorcuttingheightat114mm
(4-1/2inches)asshowninFigure25.
Youcanadjusttheheightofcutfrom38to114mm
(1-1/2to4-1/2inches)in13mm(1/2inch)increments.
Theheightofcutiscontrolledbytheleverlocatedto
therightoftheoperatingposition(Figure25).

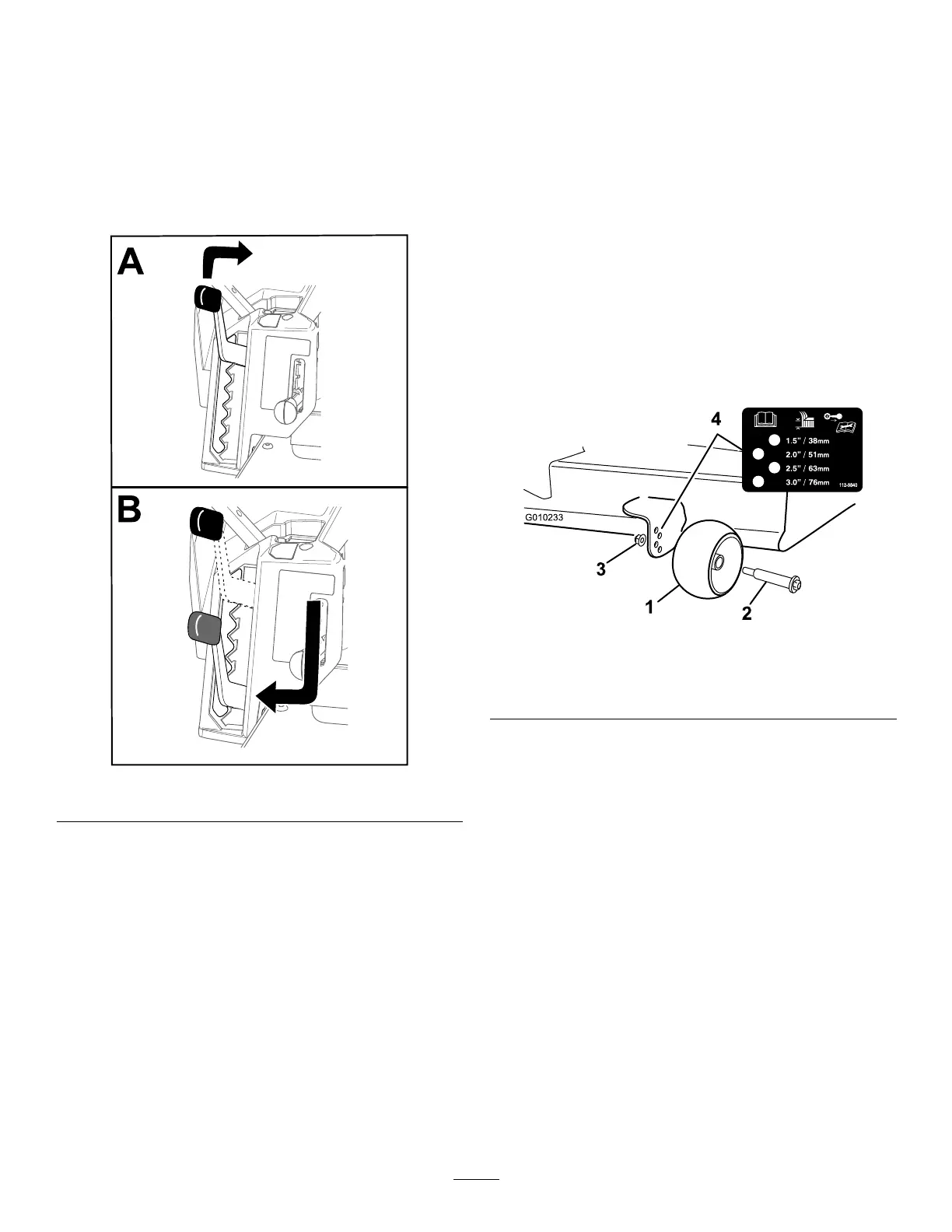

g296586
Figure25
AdjustingtheAnti-Scalp
Rollers
Wheneveryouchangetheheightofcut,adjustthe
heightoftheanti-scalprollers.
Note:Adjusttheanti-scalprollerssothattherollers
donottouchthegroundinnormal,atmowingareas.
1.Parkthemachineonalevelsurface,disengage
theblade-controlswitch,andmovethe
motion-controlleversoutwardtothePARK
position.
2.Shutofftheengine,removethekey,andwait
forallmovingpartstostopbeforeleavingthe
operatingposition.
3.Adjusttheanti-scalprollers(Figure26)tomatch
theclosestheight-of-cutposition.
g010233
Figure26
1.Anti-scalproller3.Flangenut
2.Bolt4.Holespacing
