Toro TimeCutter 74711 - Product Overview and Controls; Mower Component Identification

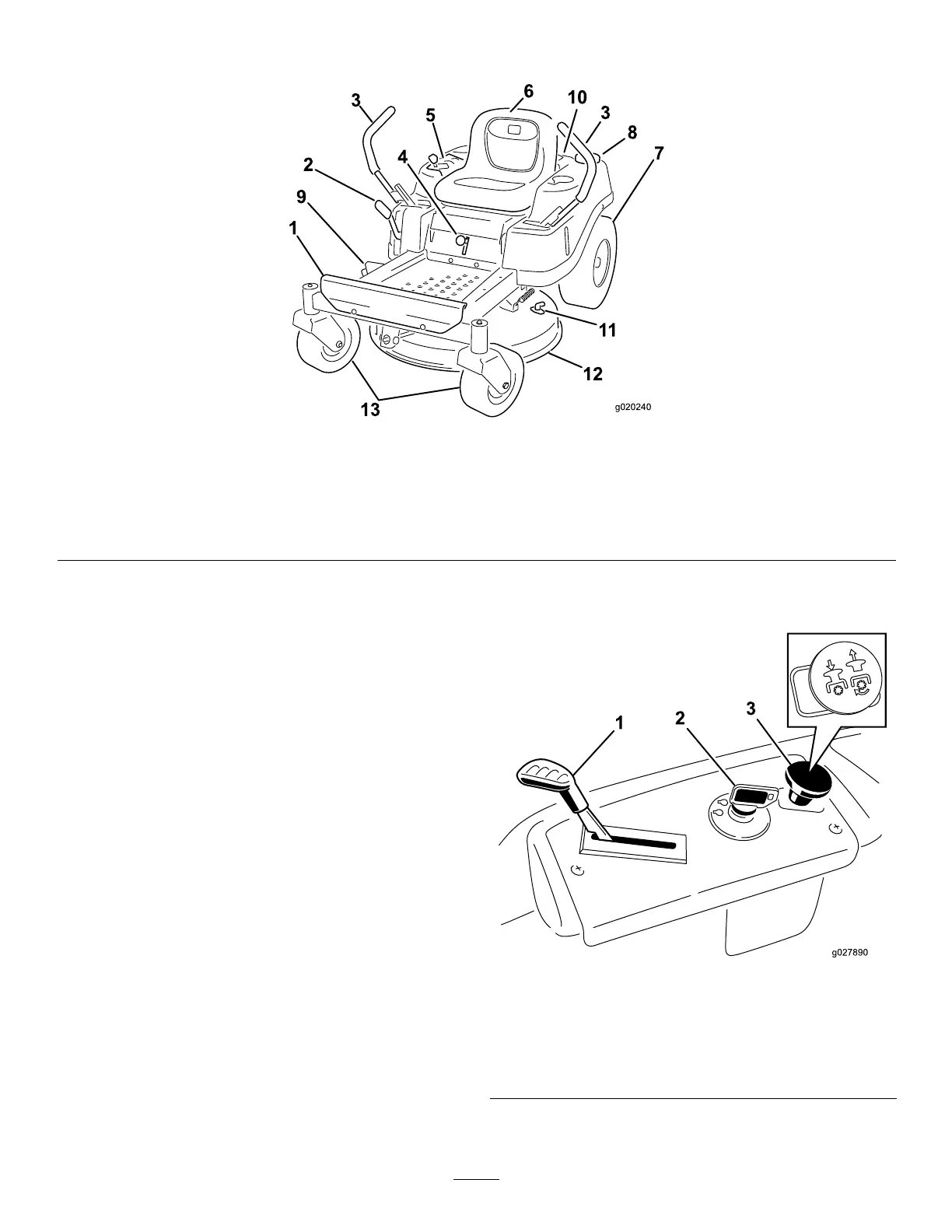

ProductOverview
g020240
Figure5
1.Footrest
5.Controlpanel9.Deector
13.Frontcasterwheels
2.Height-of-cutlever6.Operatorseat
10.Engine
3.Motion-controllever7.Reardrivewheel
11.Washouttting
4.SmartSpeed
TM
lever
8.Fuel-tankcap12.Mowerdeck
Controls
Becomefamiliarwithallthecontrolsbeforeyoustart
theengineandoperatethemachine.
ControlPanel
g027890
Figure6
ControlPanel
1.Throttle/chokecontrol
3.Blade-controlswitch
(powertakeoff)
2.Keyswitch
