DeckLiftAssembly3PointInstallation(continued)
3.Installthe9/16inchboltandnutsecuringtheliftlinktothechassis.Repeat
foroppositeside.Torqueboltandnutto40.5–44.5N•m(30–33ft-lb).

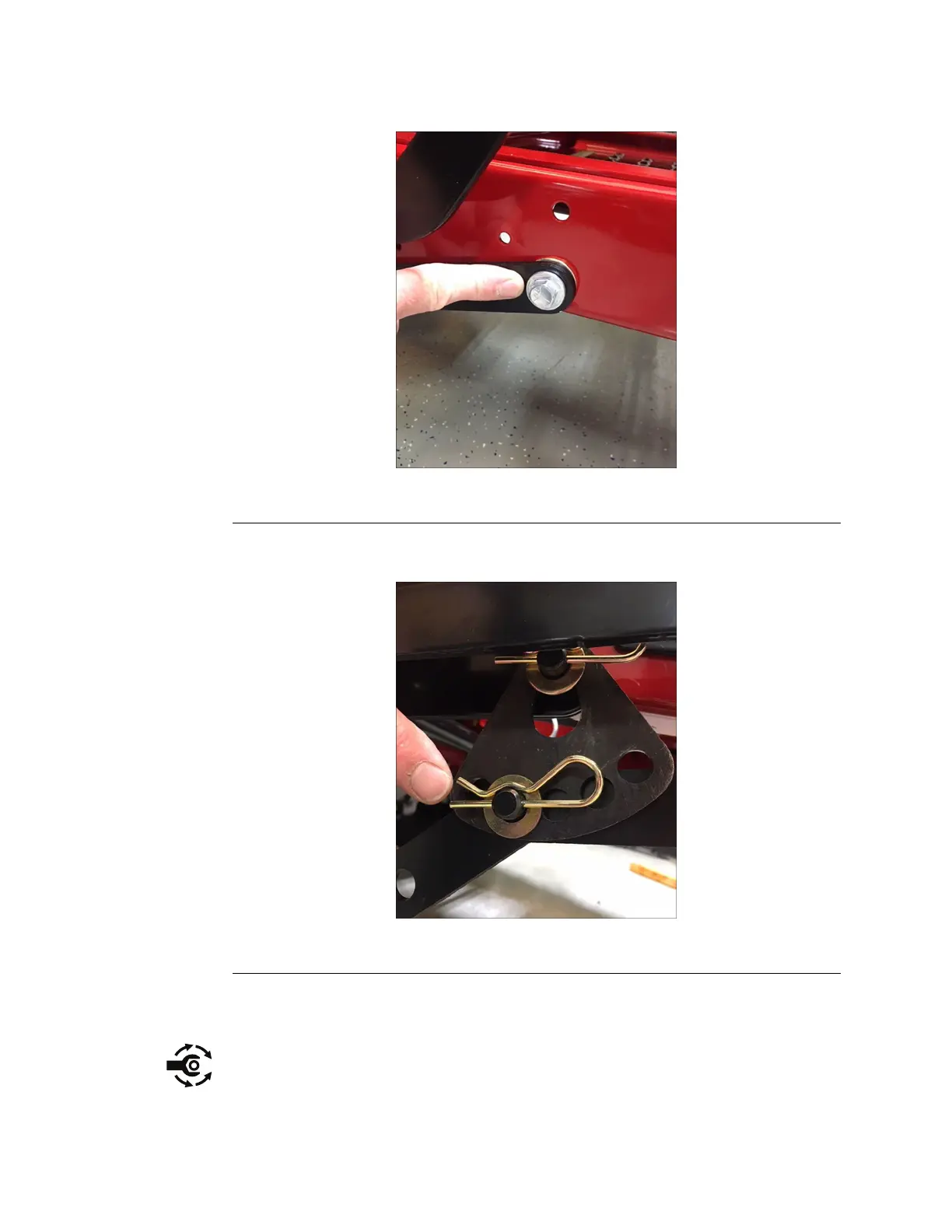

g301968
Figure200
4.Installthe2hairpinandwasherstoconnecttheliftlinktothedecklift
bellcrank.
g301967
Figure201
5.Raisethedecklifthandle.
6.PlacetheRHpodintopositiononthemachine.
7.Installthecontrolpanel.Handtightenwiththescrewsecuringthecontrol
paneltotheRHpod.
