HydroTransaxleDriveBeltInstallation(continued)
g300625
Figure228

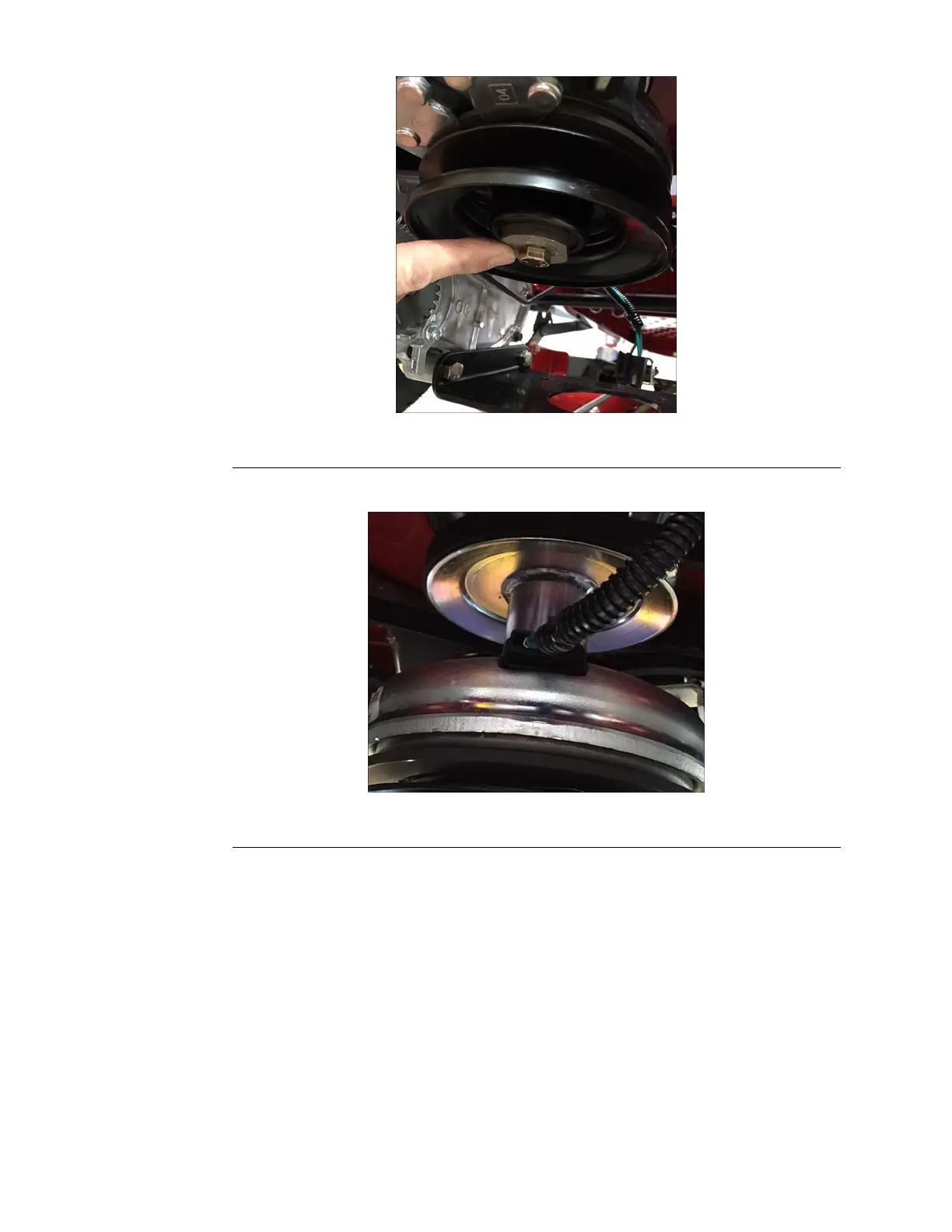

4.Connectthewiringtotheclutch.
g300624
Figure229
5.Installthedeckbelttotheclutchpulley.Usinganappropriateliftingdevice,
lowerthemachine.
6.Installthedecktensionerspringtothespringhook.
HydrostaticDriveSystem:ServiceandRepairs
Page6–8
TIMECUTTER®ServiceManual
3433-938RevA
