Toro TimeCutter MX 4200 User Manual

ProductOverview

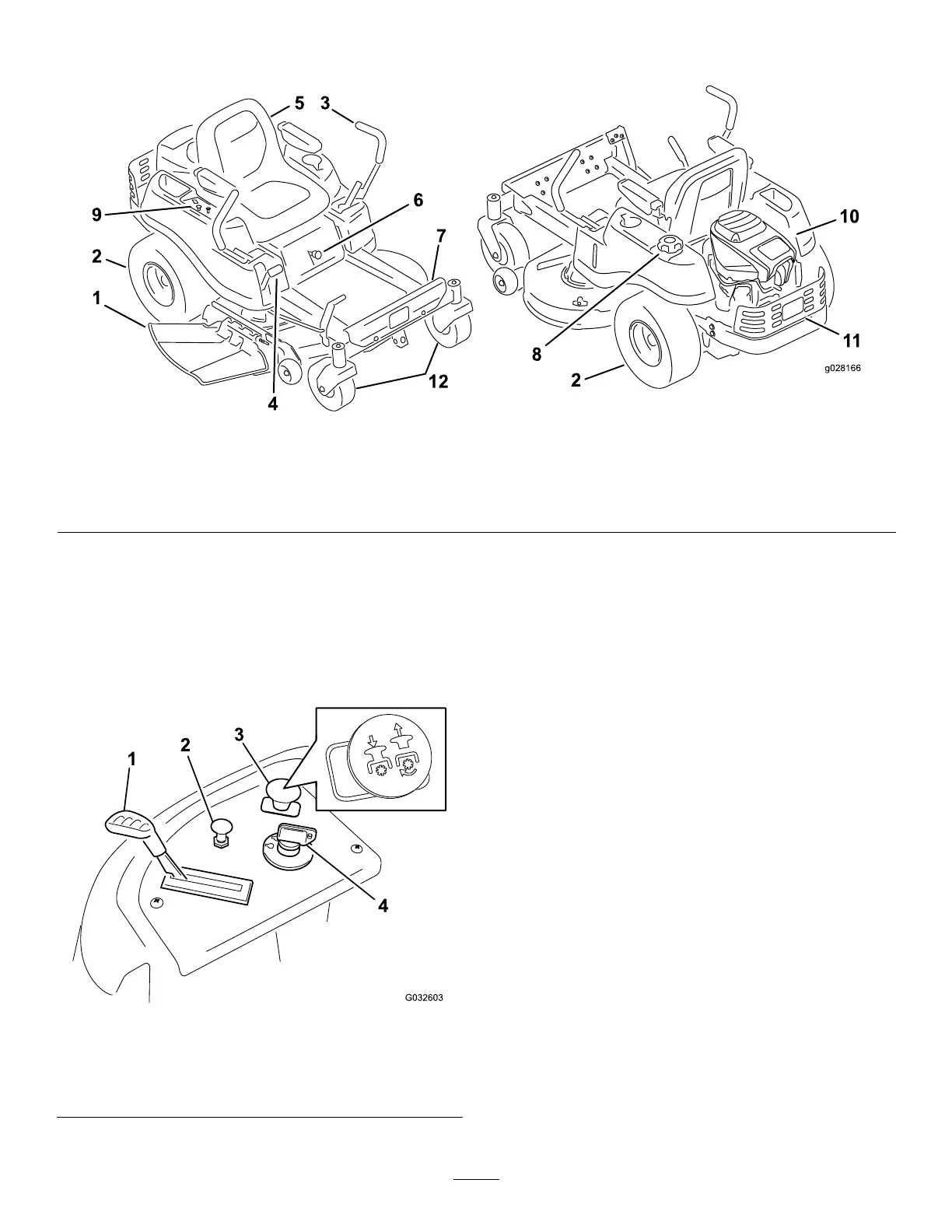

g028166
Figure5
1.Deector4.Height-of-cutlever
7.Footrest10.Engine
2.Reardrivewheel
5.Operatorseat
8.Fuel-tankcap11.Engineguard
3.Motion-controllevers
6.SmartSpeed™lever9.Controlpanel
12.Frontcasterwheel
Controls
Becomefamiliarwithallthecontrolsbeforeyoustart
theengineandoperatethemachine.
ControlPanel
g032603
Figure6
1.Throttlecontrol3.Blade-controlswitch
(powertakeoff)
2.Chokecontrol
4.Keyswitch
KeySwitch
Thekeyswitch,usedtostartandshutofftheengine,
has3positions:OFF,RUN,andSTART.Referto
StartingtheEngine(page24).
ThrottleControl
Thethrottlecontrolstheenginespeed,andithasa
continuous-variablesettingfromtheSLOWtoFAST
position(Figure6).
ChokeControl
Usethechokecontroltostartacoldengine.
Blade-ControlSwitch(Power
Takeoff)
Theblade-controlswitch,representedbya
power-takeoff(PTO)symbol,engagesand
disengagespowertothemowerblades(Figure6).
