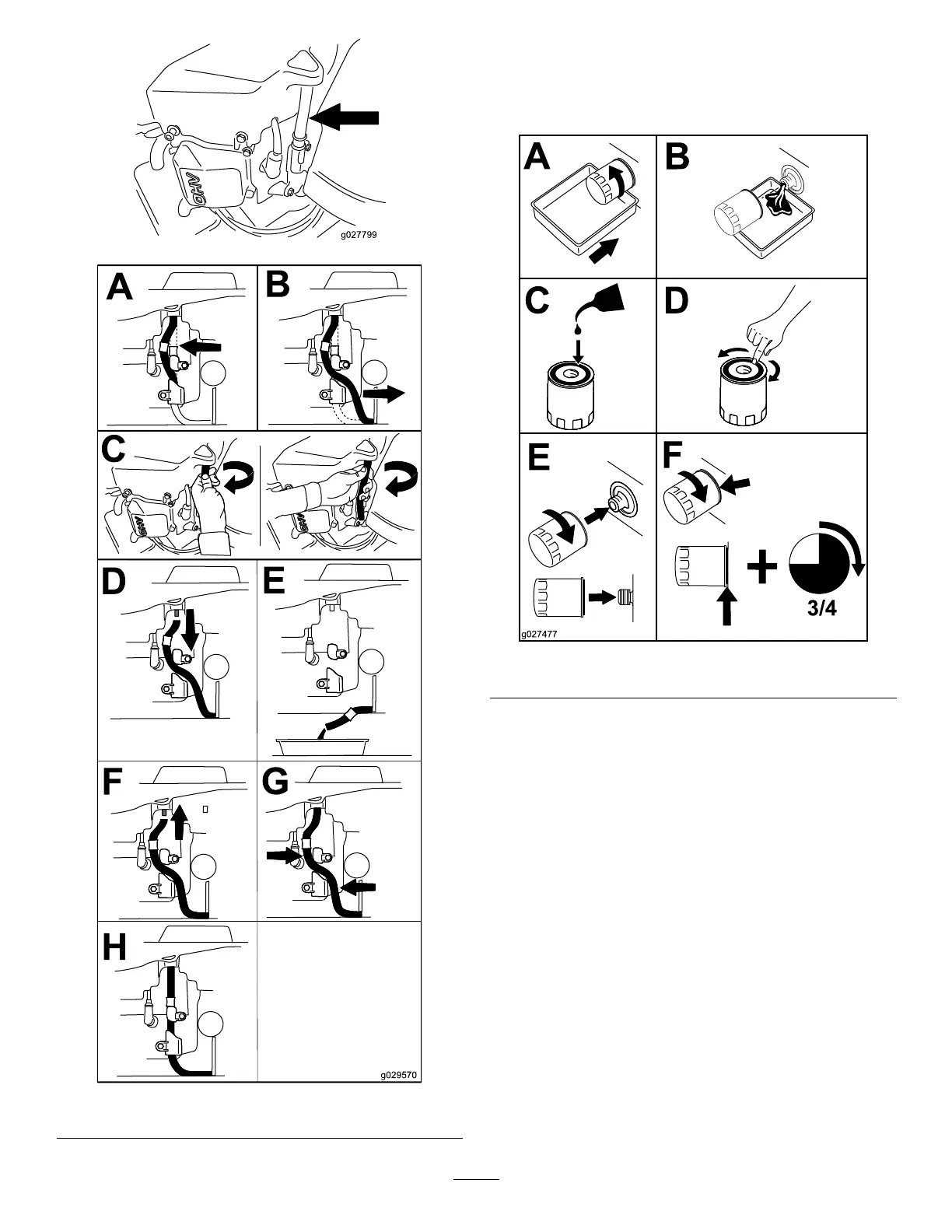

g027799
g029570
Figure
40
5.
Change
the
engine-oil
lter
(
Figure
41
).
Note:
Ensure
that
the
oil-lter
gasket
touches
the
engine
and
then
turn
the
lter
an
extra
3/4
turn.
g027477
Figure
41
6.
Slowly
pour
approximately
80%
of
the
specied
oil
into
the
ller
tube
and
slowly
add
the
additional
oil
to
bring
it
to
the
Full
mark
(
Figure
42
).
39
38
40
