Toro TimeCutter SW 4200 - Positioning the Seat; Positioning the Steering Wheel; Adjusting the Anti-Scalp Rollers (for 107 CM (42-Inch) Mower Decks); Adjusting the Anti-Scalp Rollers (for 127 CM (50-Inch) Mower Decks)

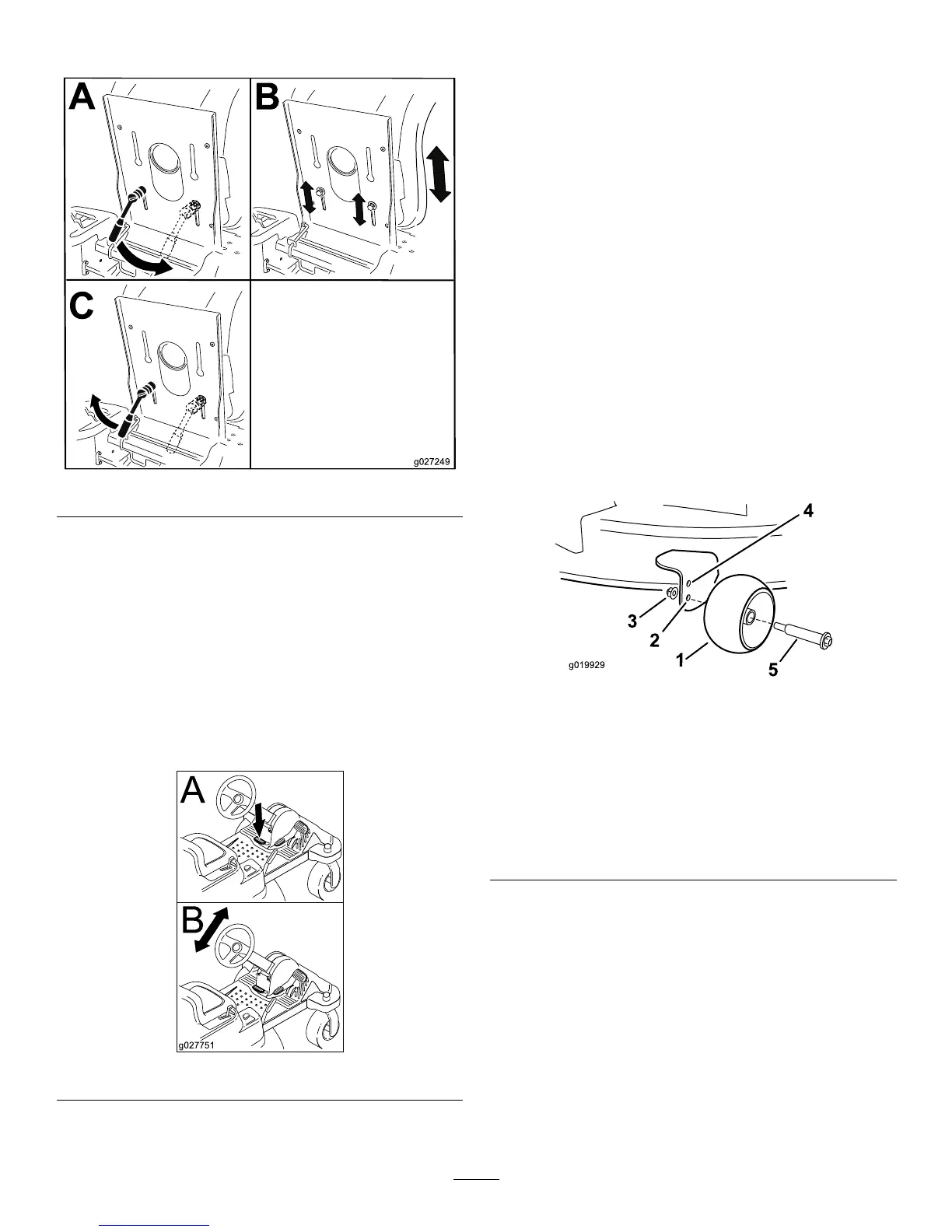

PositioningtheSeat
g027249
B
C
A
Figure15
PositioningtheSteeringWheel
Thesteeringwheelhas3positionsforoperationandone,
full-upposition.Usethefull-uppositionforsteppingonand
offthemachineandgettingoutoftheseat.Whenoperating
themachine,positionthesteeringwheelwhereyouhavethe
bestcontrolofthemachineandaremostcomfortable.
1.Pressyourfootontothesteering-columnreleaselever.
2.Positionthesteeringwheeltothedesiredposition
(Figure16).
g027751
B
A
Figure16
AdjustingtheAnti-scalp
Rollers(for107cm(42-inch)
MowerDecks)
Wheneveryouchangetheheight-of-cut,itisrecommended
toadjusttheheightoftheanti-scalprollers.
Note:Adjusttheanti-scalprollerssotherollersdonottouch
thegroundinnormal,atmowingareas.
1.Disengagetheblade-controlswitch(PTO)andensure
theparkingbrakeisengaged.
2.Stoptheengine,removethekey,andwaitforallmoving
partstostopbeforeleavingtheoperatingposition.
3.Adjusttheanti-scalprollerstooneofthefollowing
positions:
•Upperhole—usethispositionwiththemower
deckinthe63mm(2-1/2inches)andbelowthe
height-of-cutpositions(Figure17).
•Lowerhole—usethispositionwiththemower
deckinthe76mm(3inches)andabovethe
height-of-cutpositions(Figure17).
g019929
1
2
3
4
5
Figure17
1.Anti-scalproller4.Upperhole—themower
deckinthe63mm(2-1/2
inches)andbelowthe
height-of-cutpositions
2.Lowerhole—themower
deckinthe76mm(3
inches)andabovethe
height-of-cutpositions
5.Bolt
3.Flangenut
AdjustingtheAnti-scalp
Rollers(for127cm(50-inch)
MowerDecks)
Wheneveryouchangetheheight-of-cut,itisrecommended
toadjusttheheightoftheanti-scalprollers.
Note:Adjusttheanti-scalprollerssotherollersdonottouch
thegroundinnormal,atmowingareas.
1.Disengagetheblade-controlswitch(PTO)andensure
theparkingbrakeisengaged.
24
