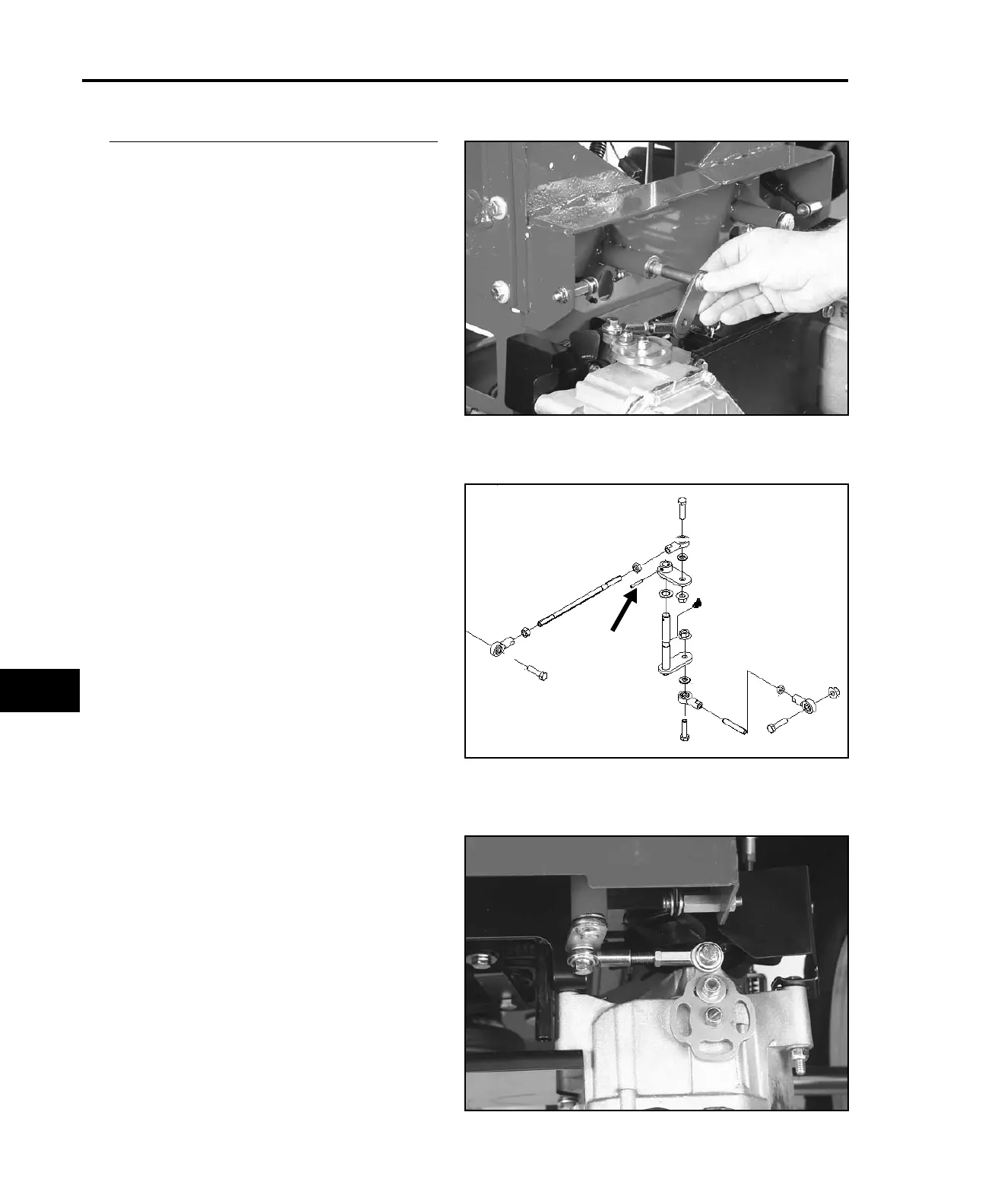

Lubricate the bellcrank shaft and install in
bushing. The lever welded to the shaft goes on
the underside of the chassis.
Carefully position the top lever on the shaft and
secure with roll pin.
Install the link between the transaxle and
bellcrank lever.
0702-0613
0702-0614
0702-0517
Replace Control Linkage
