DriveSystem
Maintenance
CheckingtheSeatBelt
ServiceInterval:Beforeeachuseordaily
Inspecttheseatbeltforwear,cuts,andproper
operationoftheretractorandbuckle.Replacethe
seatbeltifitisdamaged.
CheckingtheRoll-Bar
Knobs
ServiceInterval:Beforeeachuseordaily
WARNING
Toavoidinjuryordeathfromrollover,keep
therollbarinthefullyraised,lockedposition
andusetheseatbelt.
Ensurethattheseatissecuredtothe
machine.
•Checkthatboththemountinghardwareandthe
knobsareingoodworkingcondition.
•Makesurethattheknobsarefullyengagedwith
therollbarintheraisedposition.
Note:Theupperhoopoftherollbarmayneed
tobepushedforwardorpulledrearwardtofully

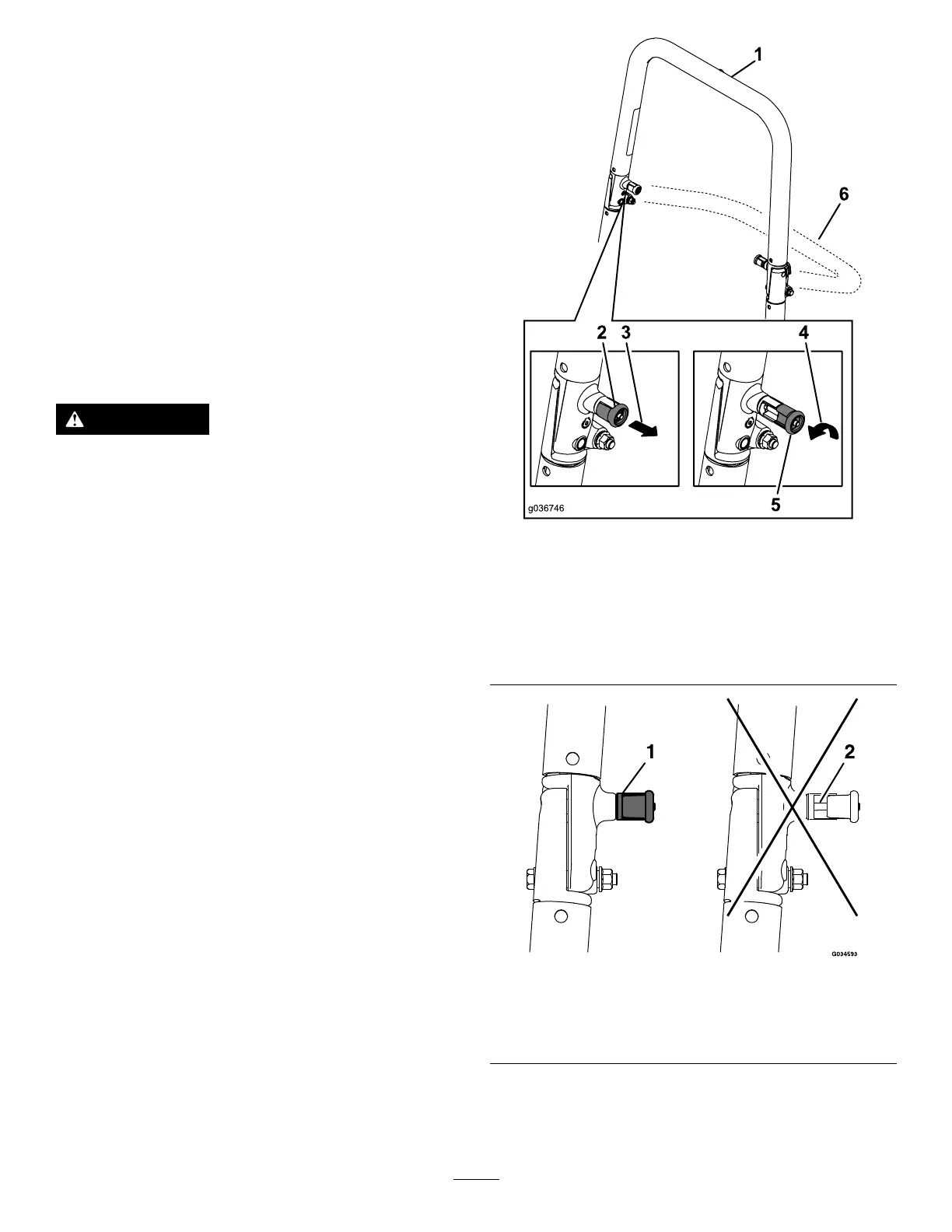

engagebothknobs(Figure86andFigure87).
g036746
Figure86
1.Rollbarintheupright
position
4.Rotatetheroll-barknob90
degrees.
2.Roll-barknobinthe
latchedposition
5.Roll-barknobinthe
unlatchedposition
3.Pulltheroll-barknobout
androtateit90degrees.
6.Rollbarinthefolded
position
g034593
Figure87
1.Engaged2.Partiallyengaged—donot
operatewiththerollbarin
thisposition.
62

Toro TITAN HD 74466 Specifications

General

Ground Speed Forward	10 mph
Ground Speed Reverse	5 mph
Starting System	Electric
Cutting Width	60 inches
Blade Tip Speed	18, 500 fpm
Seat	High-back with armrests
Oil Capacity	2 quarts
