Toro TITAN HD 74466 User Manual

ReplacingtheHydraulic
Pump-DriveBelt
1.Parkthemachineonalevelsurface,disengage
theblade-controlswitch(PTO),andengagethe
parkingbrake.
2.Shutofftheengine,removethekey,andwait
forallmovingpartstostopbeforeleavingthe
operatingposition.
3.Removethemowerbelt;refertoReplacingthe
MowerBeltforSide-DischargeMowerDecks
(page66)orReplacingtheMowerBeltfor
Rear-DischargeMowerDecks(page67).
4.Raisethemachineandsupportitwithjack
stands(Figure102).
5.Removetheclutchstop(Figure101).

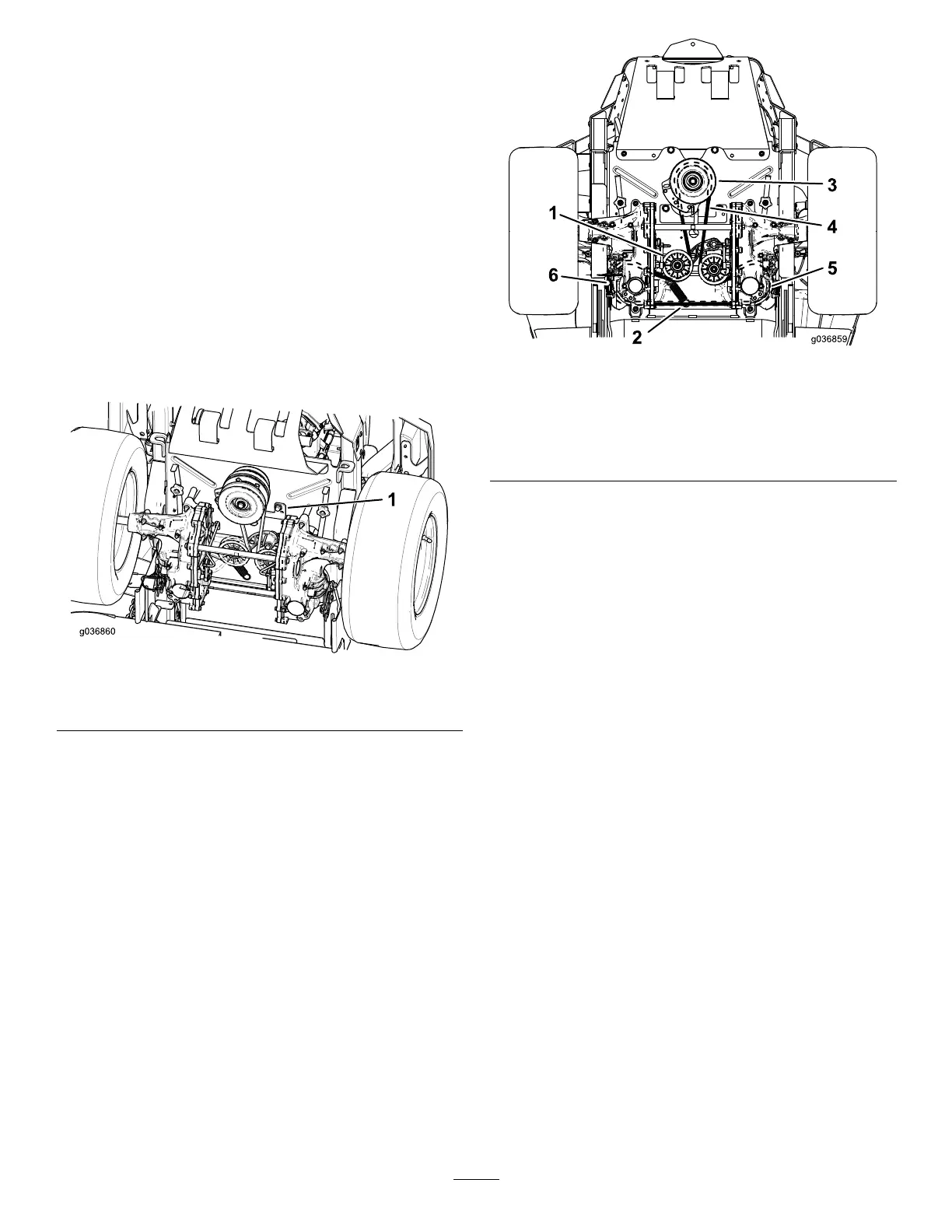

g036860
Figure101
1.Clutchstop
6.Removetheidlerspringfromthepost(Figure
102).
7.Removetheexistingbeltfromthe
hydraulic-pump-drivepulleysandthe
enginepulley.
8.Installthenewbeltaroundtheenginepulleyand
the2hydraulic-pumppulleys(Figure102).
g036859
Figure102
1.Idlerpulley4.Pump-drivebelt
2.Idler-springpost5.Righthydraulic-pump
pulley
3.Enginepulley
6.Lefthydraulic-pumppulley
9.Installtheclutchstop(Figure101).
10.Installthemowerbelt;refertoBeltMaintenance
(page66).
69

Toro TITAN HD 74466 Specifications

General

Ground Speed Forward	10 mph
Ground Speed Reverse	5 mph
Starting System	Electric
Cutting Width	60 inches
Blade Tip Speed	18, 500 fpm
Seat	High-back with armrests
Oil Capacity	2 quarts
