Toro TITAN HD 74466 User Manual

AdjustingtheTracking
1.Disengagetheblade-controlswitch(PTO).
2.Drivetoanopen,atareaandmovethe
motion-controlleverstotheNEUTRAL-LOCK
position.
3.MovethethrottlemidwaybetweentheFASTand
SLOWpositions.
4.Movebothmotion-controlleversforwarduntil
theybothhitthestopsintheT-slot.
5.Checkwhichwaythemachinetracks.
6.Ifthemachinetrackstotheright,inserta3/16
inchhexwrenchthroughtheaccessholeinthe
rightfrontcoverpanelandrotatethetracking
screwclockwiseorcounterclockwisetoadjust
thetravelofthelever(Figure88).
7.Ifthemachinetrackstotheleft,inserta3/16
inchhexwrenchthroughtheaccessholeinthe
rightfrontcoverpanelandrotatethetracking
screwclockwiseorcounterclockwisetoadjust
thetravelofthelever(Figure88).
8.Drivethemachineandcheckthefullforward
tracking.
9.Repeattheadjustmentuntilthedesiredtracking
isobtained.

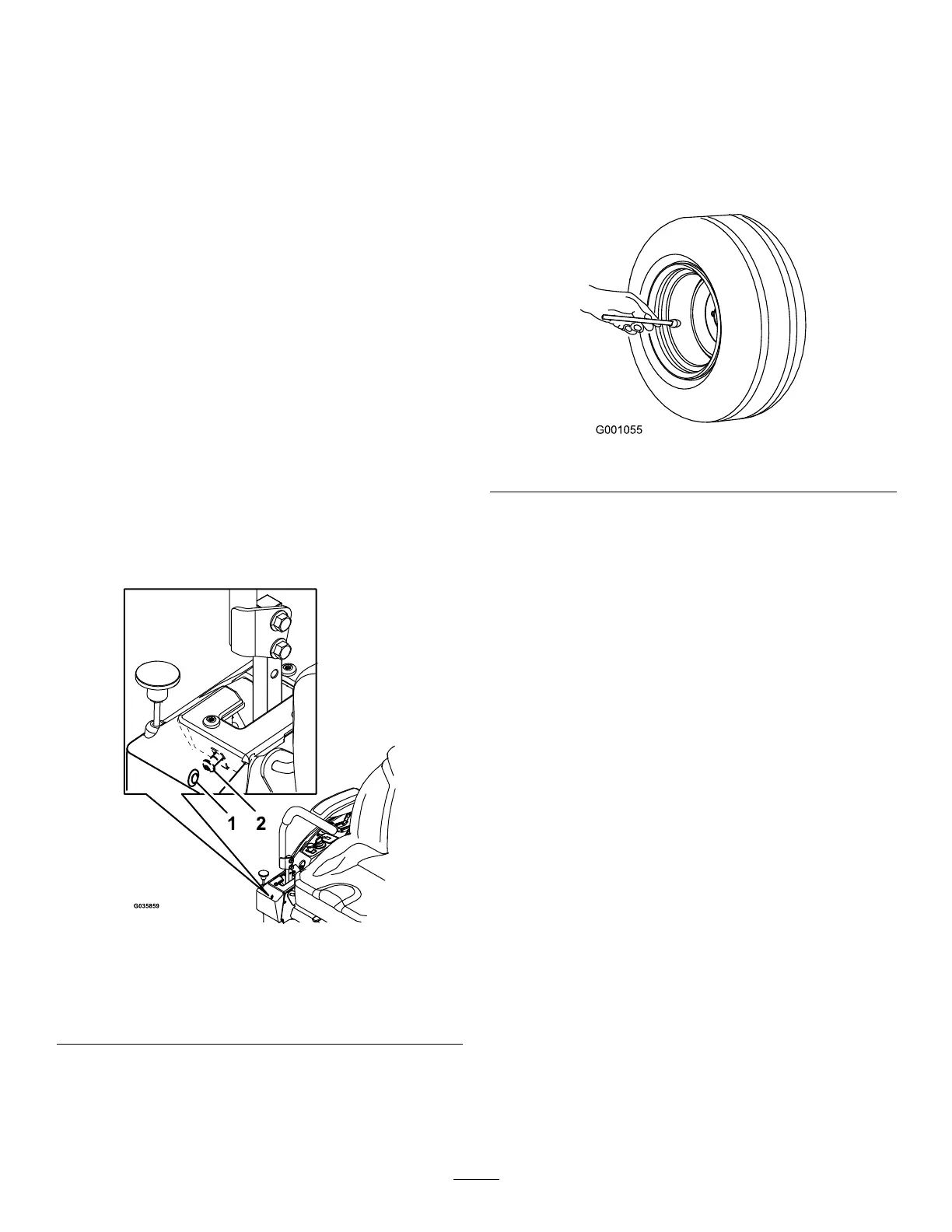

g035859
Figure88
Rightcontrollevershown
1.Accessholeonfrontcover
panel
2.Trackingscrew
CheckingtheTirePressure
ServiceInterval:Every50hours/Monthly(whichever
comesrst)
Maintaintheairpressureinthefrontandreartires
at90kPa(13psi).Uneventirepressurecancause
unevencut.Checkthetireswhentheyarecoldtoget
themostaccuratepressurereading.
g001055
Figure89
CheckingtheWheelLug
Nuts
Checkandtorquethewheellugnutsto122to136
N∙m(90to100ft-lb).
63

Toro TITAN HD 74466 Specifications

General

Ground Speed Forward	10 mph
Ground Speed Reverse	5 mph
Starting System	Electric
Cutting Width	60 inches
Blade Tip Speed	18, 500 fpm
Seat	High-back with armrests
Oil Capacity	2 quarts
