5.4.1 Handling the TS170 pop-up sprinkler with lled synthetic turf
Remove plug so that the lid and the cable shaft cover can be disassembled / assembled see 8.6.
WARNING!
Do not plug the drainage holes during adhesive bonding of the synthetic turf.
5.4.2 Operating instructions for TS170 pop-up sprinkler with lled synthetic turf

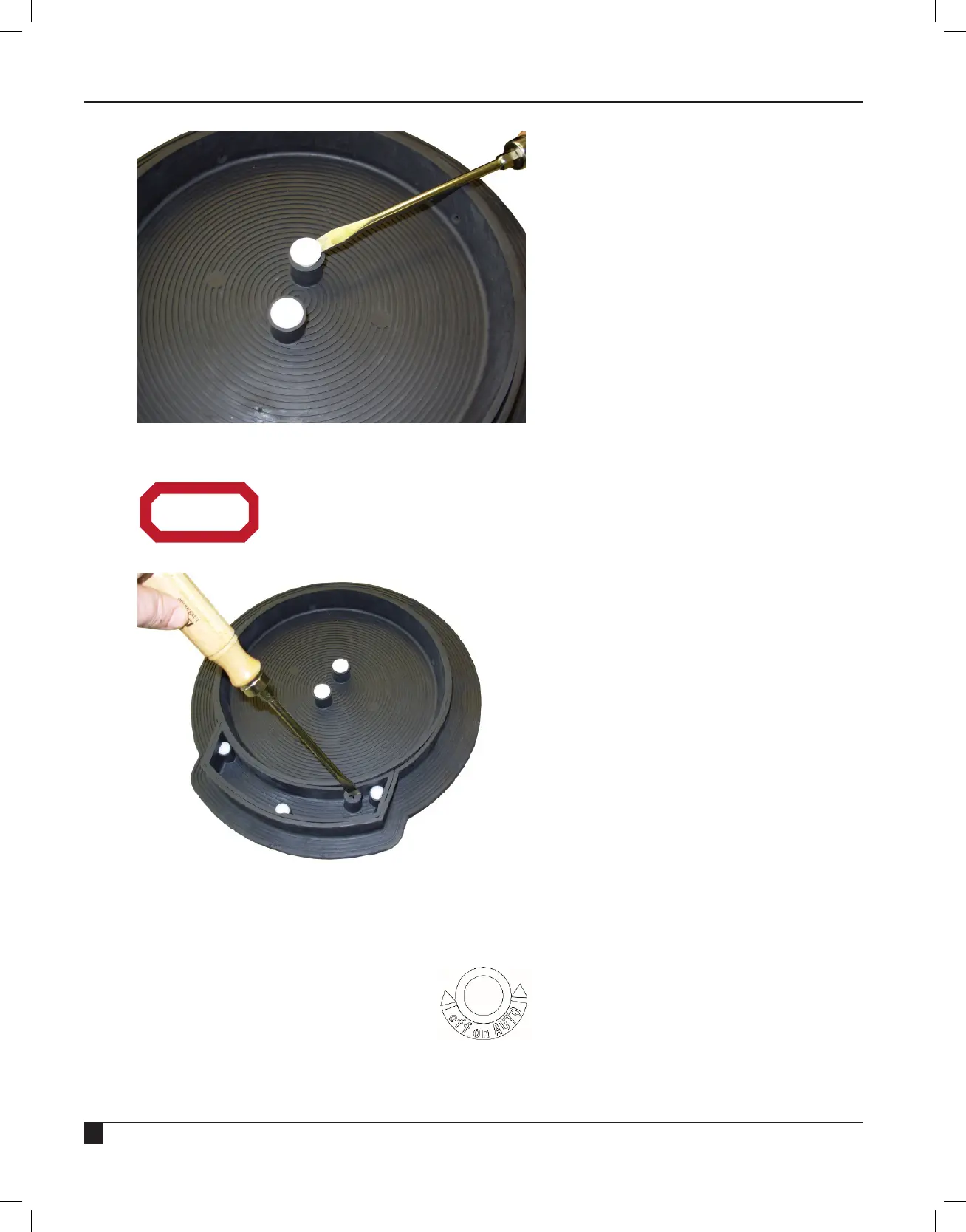

Operation of the manual control using an engineered at-blade screwdriver (.04” x .35”).
Manual control can be opened by turning the engineered at-blade screwdriver through the cross shaped
rubber protection see 6.2. Startup
Turn to the left – AUTO position
Turn to the right – OFF
Approx. 1-2 full rotation to the left – ON
