6.3 Setting the Arc
With this pop-up sprinkler the arc setting is innitely variable.
You can adjust the area to be watered by pulling on the relevant end of the top or bottom spring stop.

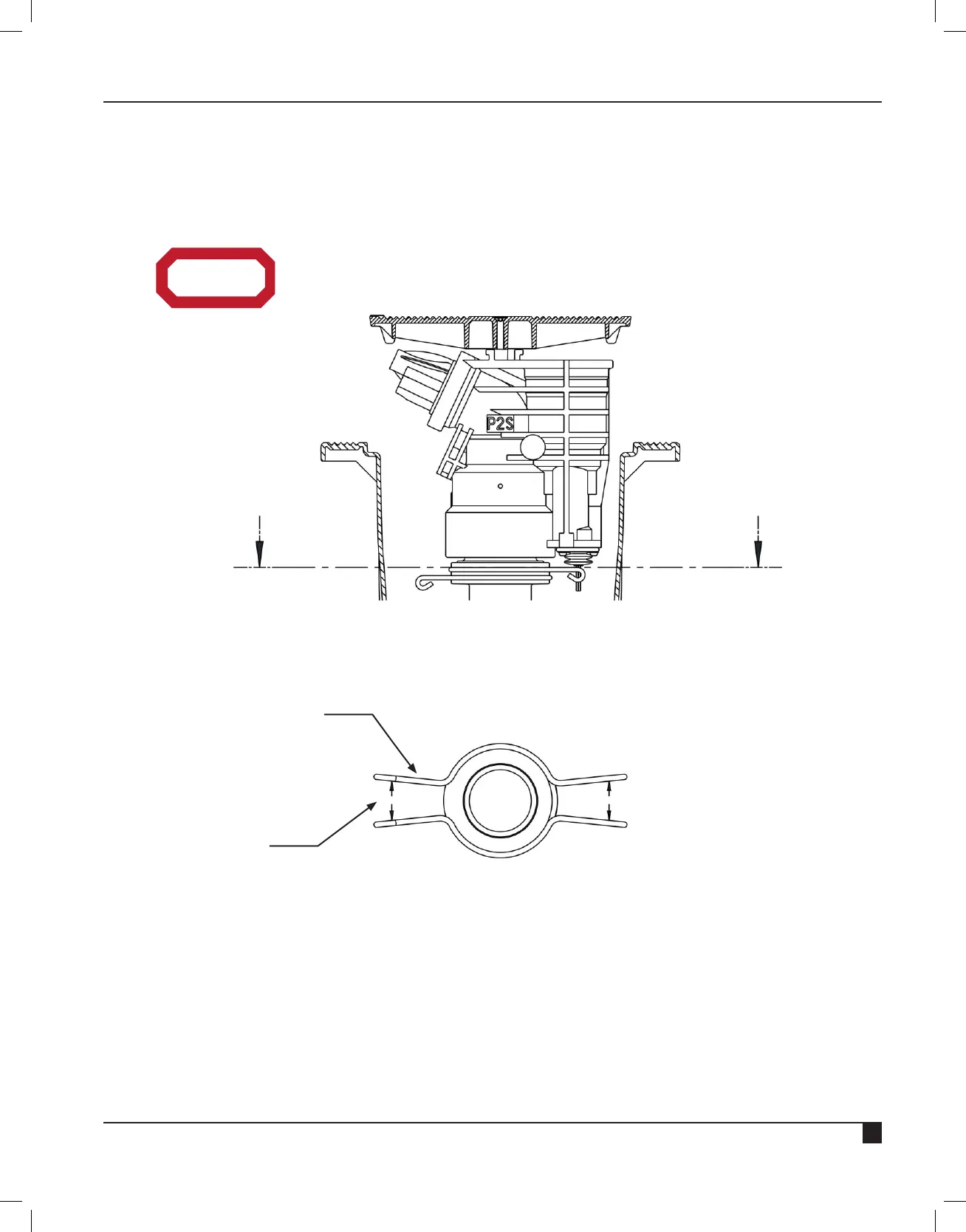

Setting the arc angle
WARNING!
Innitely variable setting is possible by pulling (not pressing) on the relevant and of
the top or bottom spring stop
Spring stop
Apply pressure here
