• When replacing the control unit, cut o the hoses as close as possible to the unit’s grommet.
Fitting the control unit
• When buying a replacement part, the control unit is supplied with plug-and-socket connections. Push
hoses into plug-in grommets as far as they will go and ensure that the mounting ring springs back.
WARNING!
Please ensure that the hoses are tted in the correct position.
Otherwise the sprinkler will not work.
• Otherwise the sprinkler will not work.
• Screw in coil.
• Clip control unit into protective casing.
• Secure housing cover using all three screws.
• Check sprinkler is working properly as per point 6.2.

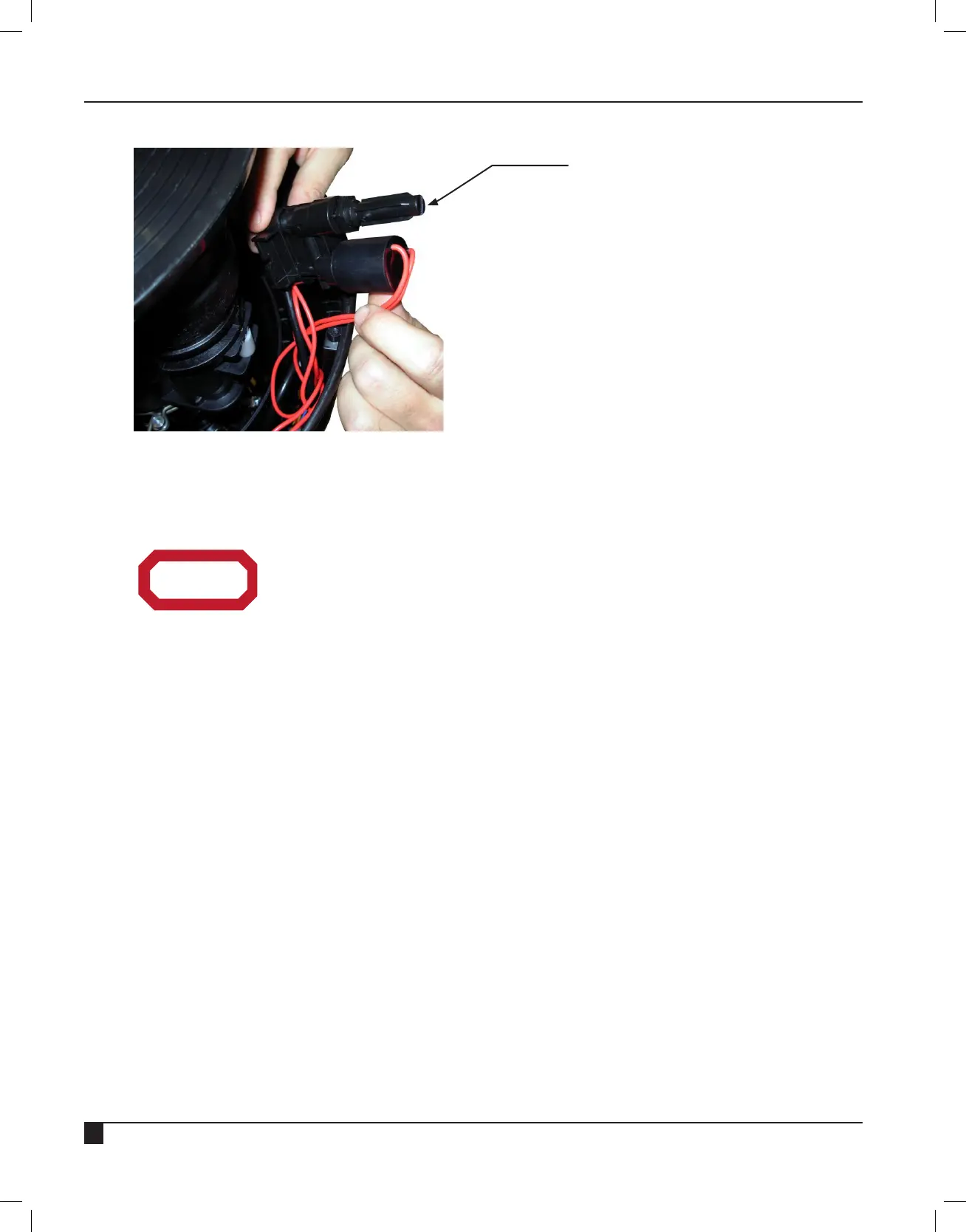

Control unit
