ProductOverview

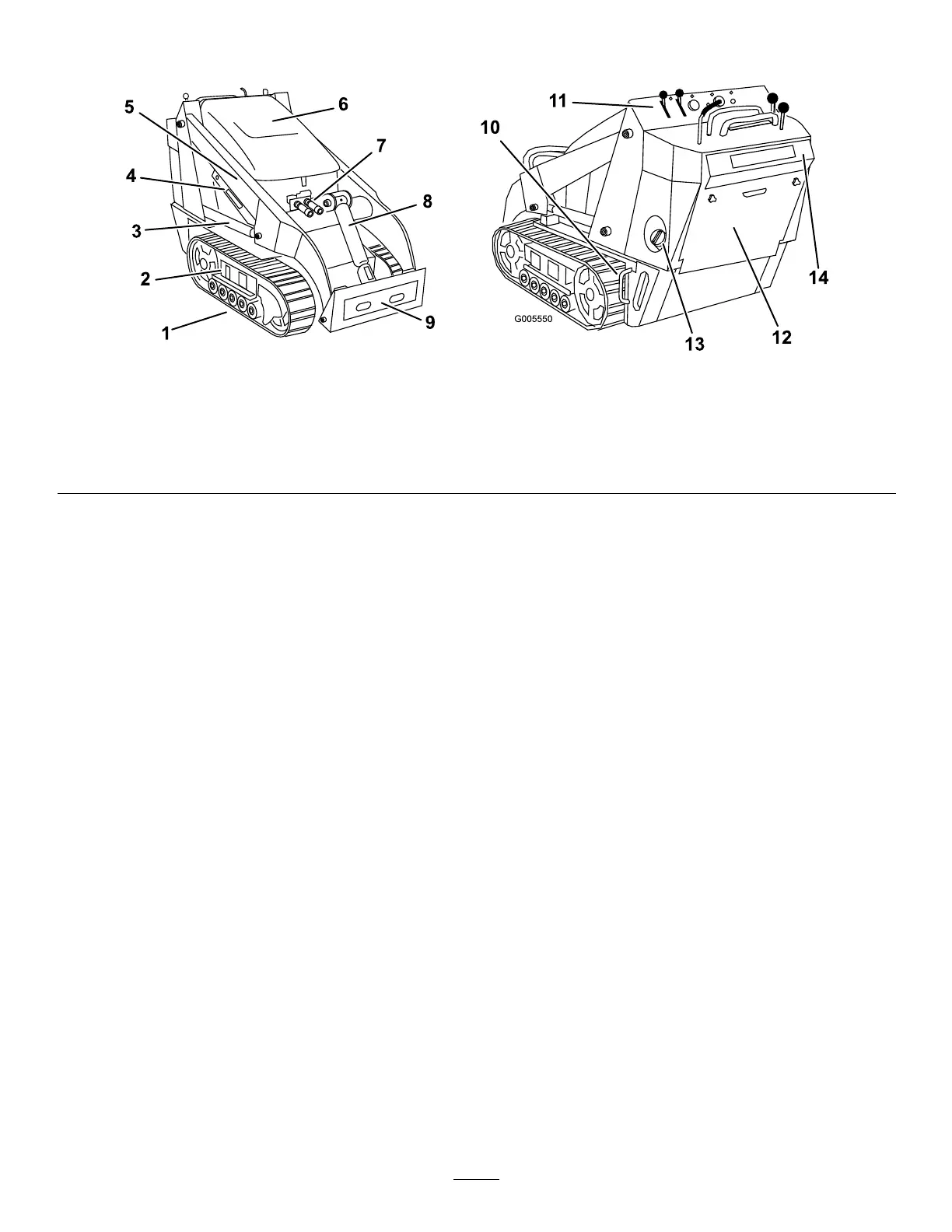

g005550
Figure1
1.Track5.Loaderarms9.Mountplate13.Fueltank
2.Track-adjustmentchamber6.Hood
10.Tie-down/liftloop14.Reverse-safetyplate
3.Liftcylinder
7.Auxiliaryhydrauliccouplers
11.Controlpanel
4.Cylinderlock
8.Tiltcylinder12.Rear-accesscover
