Toro TX 1000 - User Manual

60 pages

Save Page as PDF

To Next Page

To Next Page

Loading...

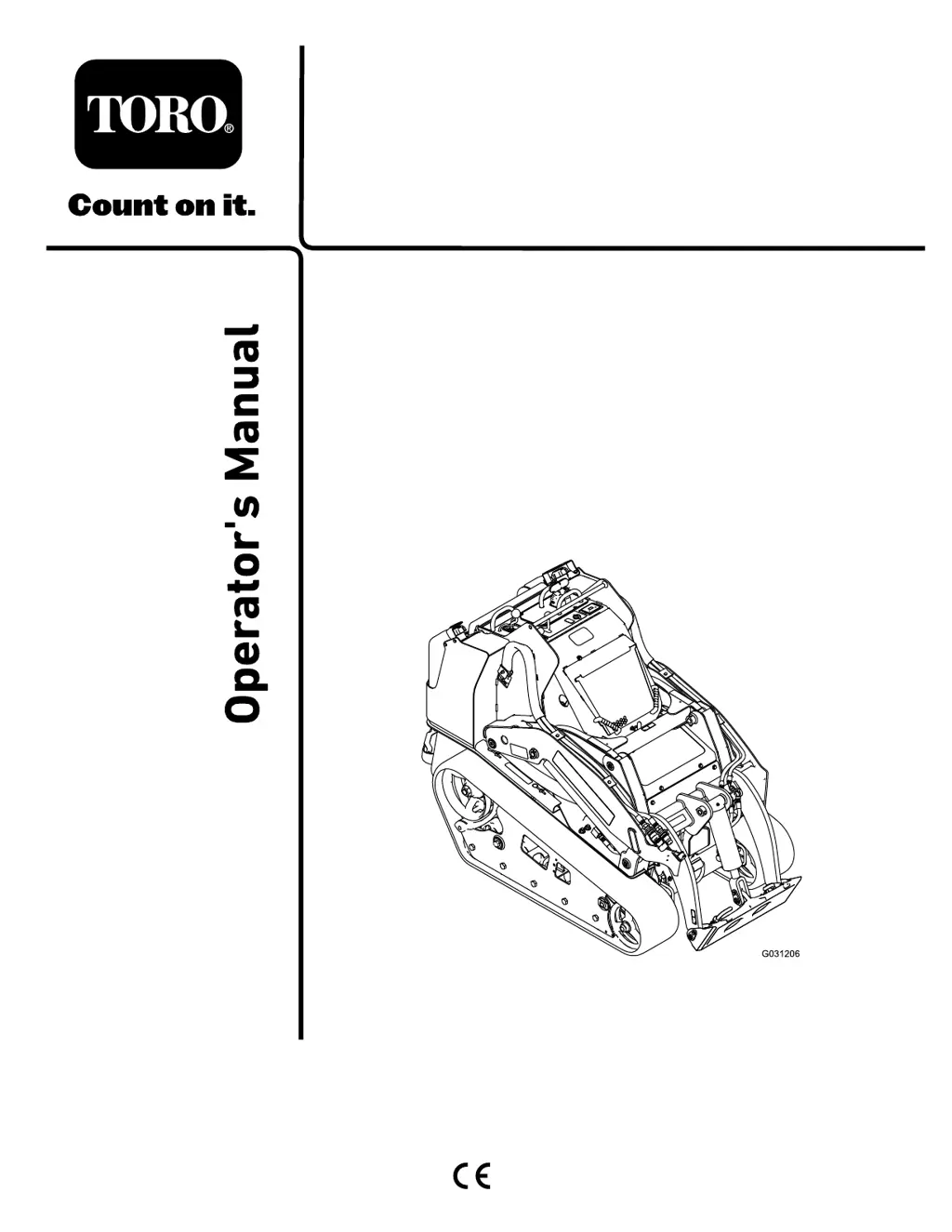

FormNo.3423-965RevA

TX1000CompactToolCarrier

ModelNo.22327—SerialNo.402000000andUp

ModelNo.22327G—SerialNo.402800000andUp

ModelNo.22327HD—SerialNo.402000000andUp

ModelNo.22328—SerialNo.403330000andUp

ModelNo.22328HD—SerialNo.403100000andUp

Registeratwww.Toro.com.

OriginalInstructions(EN)

*3423-965*A

Table of Contents

Other manuals for Toro TX 1000

Installation Instructions8 pages

Questions and Answers

D
Donna GrantSep 9, 2025
Why does my Toro Compact Loader engine start then die?
- J
  jason04Sep 9, 2025
  If your Toro Compact Loader engine starts but doesn't keep running, first check if the fuel tank vent is restricted by loosening the cap. If the engine runs with the cap loosened, replace the cap. Also, drain and flush the fuel system and add fresh fuel if you find dirt or water in it. Replace the fuel filter if it's clogged. Check for air in the fuel lines by bleeding the nozzles and inspecting for leaks at the fuel hose connections and fittings between the fuel tank and engine. If you used improper fuel grade for cold weather, drain the fuel system, replace the fuel filter, and add fresh fuel of the proper grade. Clean or replace the spark-arrestor screen if it's clogged.
T
Thomas LinAug 22, 2025
What to do if my Toro TX 1000 Compact Loader engine cranks but won't start?
- L
  leekellyAug 23, 2025
  If your Toro Compact Loader's engine cranks but doesn't start, there are several potential causes. First, ensure the fuel tank isn't empty and the fuel shut-off valve is open. Check for fuel issues like dirt, water, or stale fuel; if present, drain and flush the system, then add fresh fuel. Also, inspect the fuel line for clogs and clean or replace it if necessary. Make sure that air is not in the fuel. Bleed the nozzles and check for air leaks at the fuel hose connections and fittings between the fuel tank and engine. Check the fuse, glow plugs, and wiring. Finally, service the air filters and replace the fuel filter.
C
claytonmillerAug 25, 2025
Why does my Toro Compact Loader engine start but then die?
- E
  Erica MccoyAug 25, 2025
  If the engine of your Toro Compact Loader starts but doesn't keep running, try loosening the fuel tank cap. If it runs with the cap loosened, replace the cap. Also, drain and flush the fuel system and add fresh fuel if there is dirt or water in the fuel system. Replace the fuel filter if it is clogged. Make sure that air is not in the fuel. Bleed the nozzles and check for air leaks at fuel hose connections and fittings between the fuel tank and engine. Drain the fuel system and replace the fuel filter. Add fresh fuel of proper grade for ambient temperature conditions if improper fuel grade for cold weather was used in the machine. Clean or replace the spark-arrestor screen if it is clogged.
T
Terri BraunAug 26, 2025
Why is my Toro Compact Loader engine losing power?
- J
  janetdelacruzAug 26, 2025
  If your Toro Compact Loader engine is losing power, first, reduce the load by using a lower ground speed if the engine load is excessive. Check the crankcase-oil level and fill or drain to the Full mark. Service the air filters if they are dirty. Drain and flush the fuel system and add fresh fuel if there is dirt, water, stale fuel, or incorrect fuel in the fuel system. Clean or replace the spark-arrestor screen if it is clogged. Bleed the nozzles and check for air leaks at fuel hose connections and fittings between the fuel tank and engine if there is air in the fuel.
L
Lisa HolmesAug 27, 2025
What causes my Toro Compact Loader engine to knock or miss?
- J
  John AndersonAug 27, 2025
  If your Toro Compact Loader engine runs but knocks or misses, start by draining and flushing the fuel system and adding fresh fuel if there is dirt, water, stale fuel, or incorrect fuel in the fuel system. Bleed the nozzles and check for air leaks at the fuel hose connections and fittings between the fuel tank and engine if there is air in the fuel.
R
Roy EllisAug 29, 2025
Why is my Toro TX 1000 not driving?
- K
  Kathleen CraigAug 29, 2025
  If your Toro Compact Loader isn't driving, first disengage the parking brake. Then, check the hydraulic fluid level and add fluid to the reservoir if it's low. Close the tow valves if they are open and move the flow-divider valve lever to the 12 o'clock to 10 o'clock position if it is in 9 o'clock position.
R
rbutlerSep 17, 2025
Why is my Toro TX 1000 Compact Loader producing white smoke?
- S
  Shelley WilliamsSep 18, 2025
  If your Toro Compact Loader exhaust produces excessive white smoke, ensure you turn the key to the RUN position and allow the glow-plug light to turn off before starting the engine. Also, check the thermostat to ensure the engine temperature is not low. Check the fuse, glow plugs, and wiring if the glow plugs are inoperative.
L
Lisa ParksSep 18, 2025
What to do if my Toro Compact Loader won't drive?
- M
  matamichaelSep 19, 2025
  If your Toro Compact Loader doesn't drive, ensure the parking brake is disengaged. Add hydraulic fluid to the reservoir if the hydraulic fluid level is low. Close the tow valves if they are open. Move the flow-divider valve lever to the 12 o'clock to 10 o'clock position if it is in 9 o'clock position.
T
Thomas MillerSep 8, 2025
How to fix Toro Compact Loader engine overheating?
- J
  Jerome HoltSep 8, 2025
  If your Toro Compact Loader engine is overheating, check the coolant level and add more if needed. Ensure there's no restricted airflow to the radiator by inspecting and cleaning the radiator screen. Also, verify that the crankcase-oil level is at the Full mark. Reduce the engine load or use a lower ground speed, as an excessive load can cause overheating. Finally, ensure that the correct fuel is in the fuel system; if not, drain and flush the system and add fresh fuel.
T
Terry BryantSep 4, 2025
Why won't the starter crank on my Toro Compact Loader?
- L
  lisaatkinsSep 4, 2025
  If the starter on your Toro Compact Loader isn't cranking, there are several potential causes. First, check the electrical connections to ensure they are clean and tight. A blown or loose fuse could also be the culprit, so inspect and replace the fuse if necessary. A discharged battery can prevent the starter from cranking, so charge or replace the battery. Also, make sure that the safety interlock is not engaged by checking the neutral setting on the traction and auxiliary controls.

Summary

Introduction and Safety

Introduction

Overview of the operator's manual and machine.

General Safety Rules

Essential safety rules for operating the machine safely and avoiding injury.

Safety and Instructional Decals

Explanation of safety symbols and decals on the machine.

Quick Reference, Overview, and Controls

Quick Reference Aid

Daily service checklist and fluid specifications.

Product Overview and Controls

Identification of machine components and control panel layout.

Machine Operation Controls

Instructions on operating traction, loader arm, auxiliary, and parking brake controls.

System Indicators and Gauges

Explanation of message display lights, indicators, and the fuel gauge.

Operation Procedures

Before Operation Procedures

Safety checks, fuel, and daily maintenance before starting.

During Operation Procedures

Safety, starting, driving, and attachment use during operation.

After Operation and Transport Procedures

Shutdown, moving, and safe transport procedures for the machine.

Maintenance and Service

Maintenance Schedule and Safety

Overview of maintenance tasks, schedules, and pre-maintenance safety.

Engine, Fuel, and Electrical Systems Maintenance

Procedures for servicing engine, fuel, and electrical systems.

Drive, Cooling, Brake, and Hydraulic Systems Maintenance

Maintenance for tracks, cooling, brakes, and hydraulic systems.

Cleaning and Storage Procedures

Procedures for cleaning debris, chassis, and preparing the machine for storage.

Troubleshooting

Engine and Machine Operation Troubleshooting

Diagnosing and resolving engine and machine operation issues.

Schematics

Electrical and Hydraulic System Schematics

Diagrams illustrating the machine's electrical and hydraulic systems.

Summary

Introduction and Safety

Introduction

Overview of the operator's manual and machine.

General Safety Rules

Essential safety rules for operating the machine safely and avoiding injury.

Safety and Instructional Decals

Explanation of safety symbols and decals on the machine.

Quick Reference, Overview, and Controls

Quick Reference Aid

Daily service checklist and fluid specifications.

Product Overview and Controls

Identification of machine components and control panel layout.

Machine Operation Controls

Instructions on operating traction, loader arm, auxiliary, and parking brake controls.

System Indicators and Gauges

Explanation of message display lights, indicators, and the fuel gauge.

Operation Procedures

Before Operation Procedures

Safety checks, fuel, and daily maintenance before starting.

During Operation Procedures

Safety, starting, driving, and attachment use during operation.

After Operation and Transport Procedures

Shutdown, moving, and safe transport procedures for the machine.

Maintenance and Service

Maintenance Schedule and Safety

Overview of maintenance tasks, schedules, and pre-maintenance safety.

Engine, Fuel, and Electrical Systems Maintenance

Procedures for servicing engine, fuel, and electrical systems.

Drive, Cooling, Brake, and Hydraulic Systems Maintenance

Maintenance for tracks, cooling, brakes, and hydraulic systems.

Cleaning and Storage Procedures

Procedures for cleaning debris, chassis, and preparing the machine for storage.

Troubleshooting

Engine and Machine Operation Troubleshooting

Diagnosing and resolving engine and machine operation issues.

Schematics

Electrical and Hydraulic System Schematics

Diagrams illustrating the machine's electrical and hydraulic systems.
