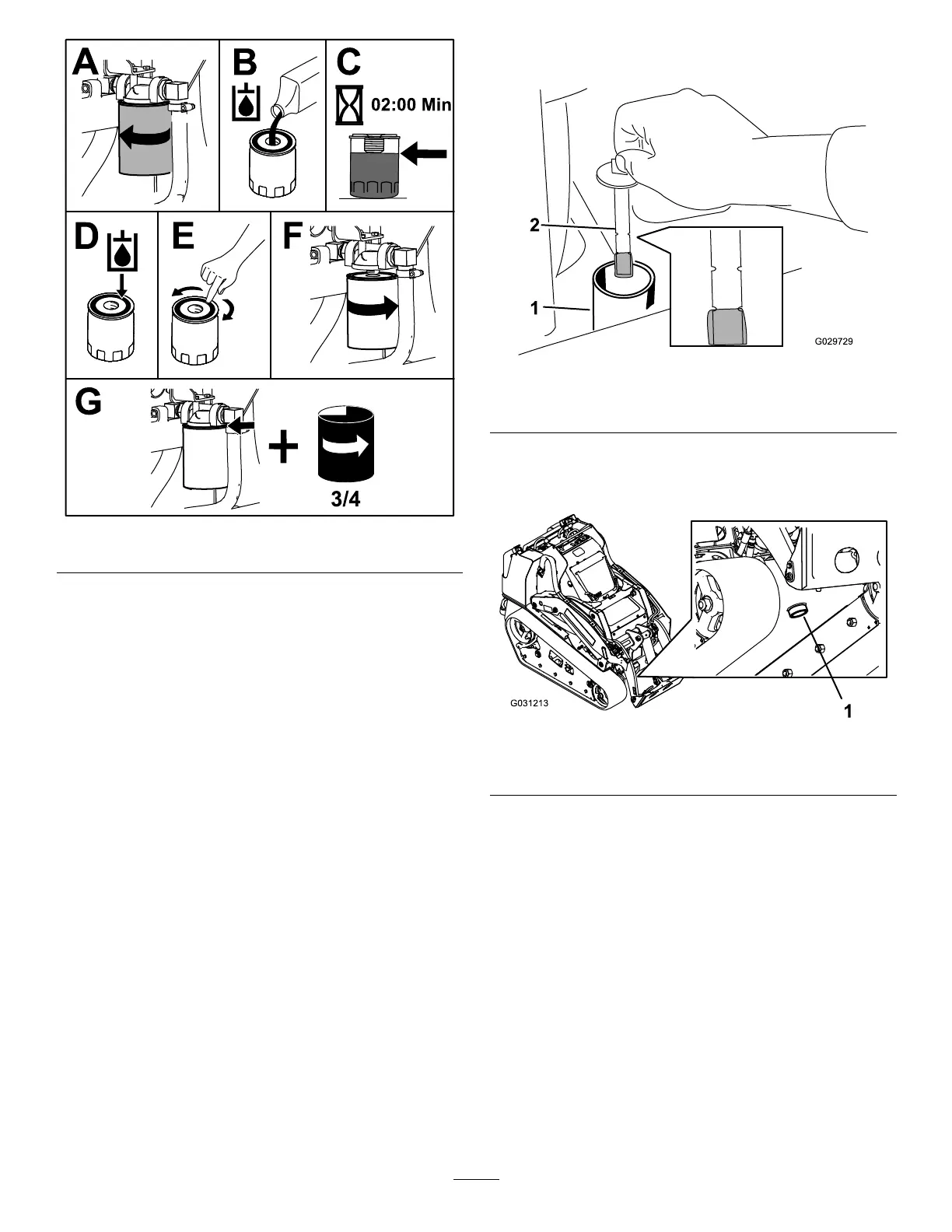

g205342
Figure71
5.Cleanupanyspilleduid.
6.Starttheengineandletitrunforabout2minutes
topurgeairfromthesystem.
7.Shutofftheengineandcheckforleaks.
8.Checktheuidlevelinthehydraulictank;refer
toCheckingtheHydraulic-FluidLevel(page
46)andadduidtoraisetheleveltomarkon
dipstick.
Important:Donotoverllthetank.
9.Closethehood.
ChangingtheHydraulic
Fluid
ServiceInterval:Every400hours/Yearly(whichever
comesrst)
1.Parkthemachineonalevelsurface.
2.Raisetheloaderarmsandinstallthecylinder
locks.
3.Shutofftheengine,removethekey,andallow
theenginetocool.
4.Openthehoodandsecurethehoodprop.
5.Removetherightsidescreen;refertoRemoving
theSideScreens(page27).
6.Removethehydraulic-tankcapanddipstick
(Figure72).
g029729
Figure72
1.Fillerneck2.Dipstick
7.Placealargedrainpaincapableofholding57L
(15USgallons)underthedrainplugonthefront
ofthemachine(Figure73).
g031213
Figure73
1.Drainplug
8.Removethedrainplugandallowtheoiltodrain
intothepan(Figure73).
9.Whentheoilisnisheddraining,installand
tightenthedrainplug.
Note:Disposeoftheusedoilatacertied
recyclingcenter.
10.Fillthehydraulictankwithhydraulicuid;refer
toHydraulicFluidSpecications(page45).
11.Starttheengineandletitrunforafewminutes.
12.Shutofftheengineandremovethekey.
13.Checkthehydraulic-uidlevelandadduidto
llthetankifnecessary;refertoCheckingthe
Hydraulic-FluidLevel(page46).
14.Closethehood.
