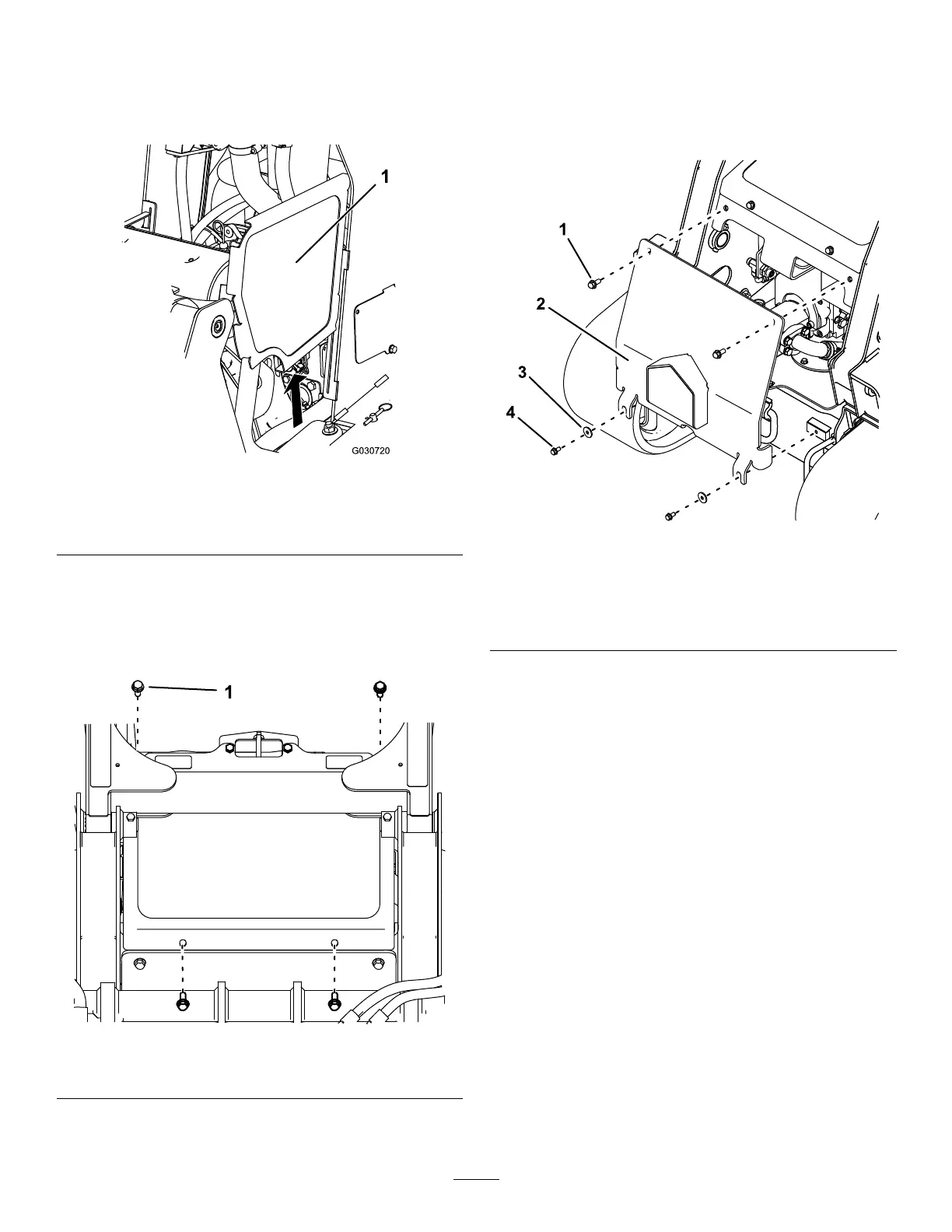

RemovingtheSideScreens
1.Openthehoodandsecurethehoodprop.
2.Slidethesidescreens(Figure35)upandoutof
theslotsinthefrontscreenandframe.
g030720
Figure35
Loaderarmsnotshownforclarity
1.Sidescreen
RemovingtheFrontScreen
1.Openthehoodandsecurethehoodprop.
2.Loosenthe2topboltsand2frontbolts.
g247902
Figure36
1.Bolt
3.Removethescreen.
RemovingtheFrontCover
1.Removethe2upperbolts(3/8x1inch),2
washers,and2lowerbolts(5/16x5/8inch)from
thefrontcover.
2.Removethefrontcover.
g204032
Figure37
1.Upperbolt—3/8x1inch
(2)
3.Washer(2)
2.Frontcover
4.Lowerbolt—5/16x5/8
inch(2)
27
