18
Operation
Side
Discharge
POTENTIAL
HAZARD
• Without the grass deflector, discharge
cover, or complete grass catcher assembly
mounted in place, you and others are
exposed to blade contact and thrown
debris.
WHAT CAN HAPPEN
• Contact with rotating mower blade(s) and
thrown debris will cause injury or death.
HOW TO AV
OID THE HAZARD
•
NEVER r
emove the grass deflector from
the mower because the grass deflector
routes material down toward the turf. If the
grass deflector is ever damaged, replace it
immediately.
• Never put your hands or feet under the
mower.
• Never try to clear discharge area or mower
blades unless you move the power take off
(PTO) to “OFF” and rotate the ignition key
to “OFF.” Also remove the key and pull the
wire off the spark plug(s).
1. The mower has a hinged grass deflector that
disperses clippings to the side and down toward
the turf.
Operating
the
Power T
ake Off (PT
O)
The power take off (PT
O) engages and disengages
power to the clutch.
While the ignition key is in “RUN” position and the
power take off (PTO) is engaged, the PTO light in the
Indicator Module, will be “ON”. When this light is
“ON” it is a reminder; the starter will not crank
Engaging the Power Take Off (PTO)
1. Depress the clutch and brake pedals to stop the
machine.
2. Push the power take off (PTO) lever forward to
engage (Fig. 30).
2
m–3430
1

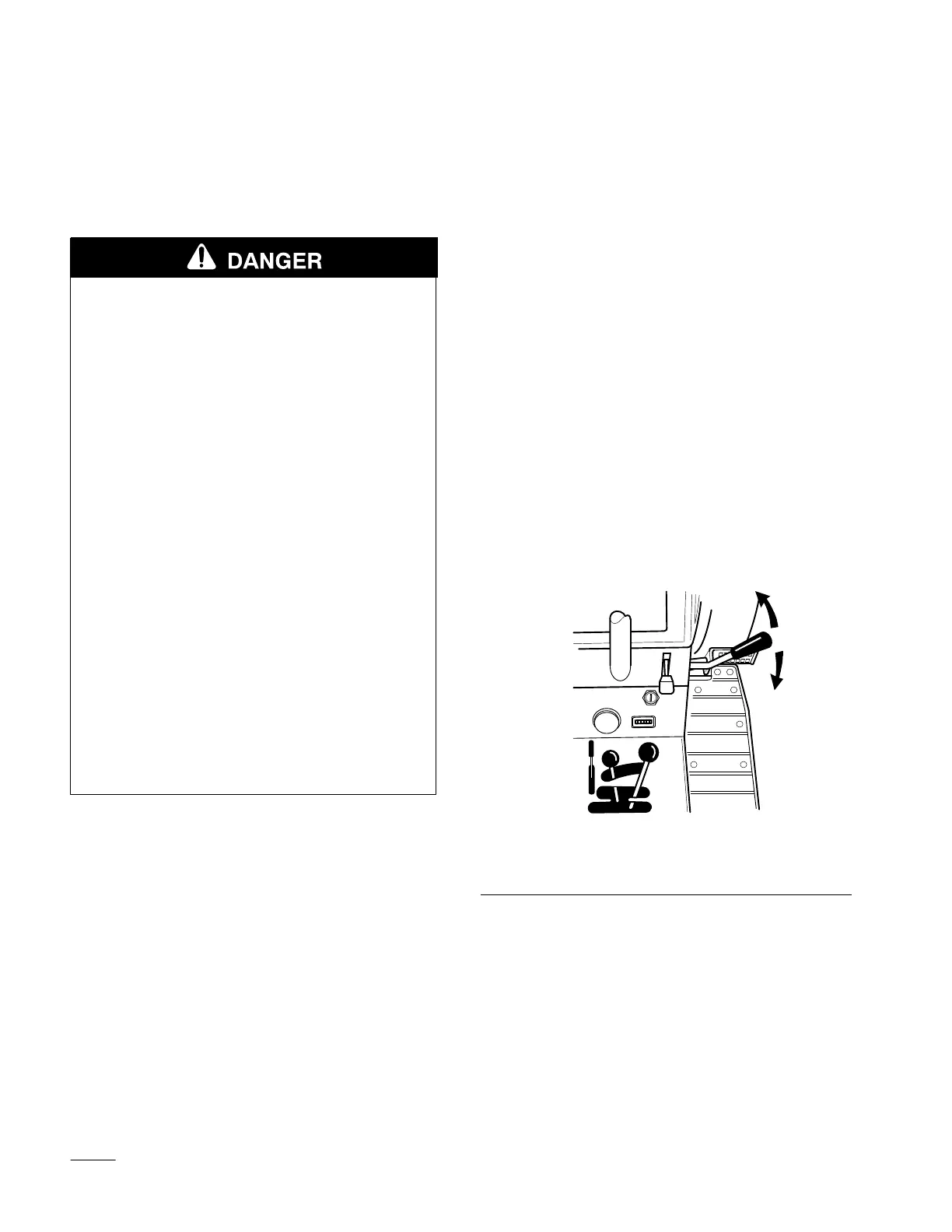

Figure 30
1.
Engaged
2.
Disengaged
Disengaging the Power Take Off (PTO)
1. Depress the clutch and brake pedals to stop the
machine.
2. Pull the power take off (PTO) lever back to
disengage (Fig. 30).
