7. Route belt around V and flat pulleys and loop
over center mower spindle, top pulley.(Fig.33).
8. Check that spacer is on shaft and install belt
cover with rod in hole. Secure with locknut
(Fig.33).
9. Turn knob counterclockwise to tighten belt
(Fig. 33). Tighten until there is 1” (26 mm) belt
movement between engine clutch and idler
pulley when slight pressure is applied to the belt.
2
1
m–2823
3
7
4
5
6

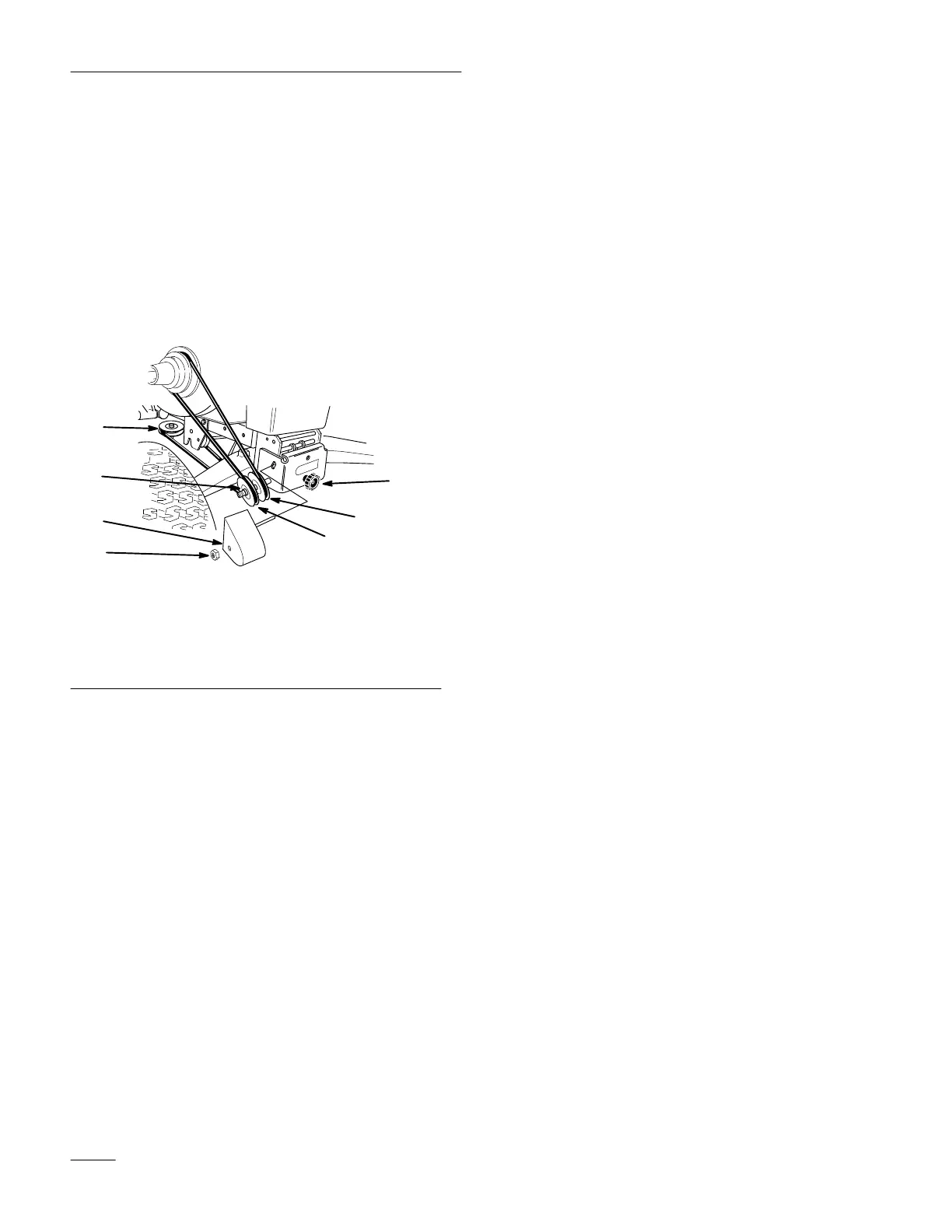

Figure 33
1. V
pulley
2.
Flat pulley
3.
Upper mower pulley
4. Spacer
5.
Belt cover
6. Locknut
7. Knob
10. Install belt cover (Fig. 6).
Storage
1. Clean dirt and chaff from the outside of the
engine’s cylinder head fins and blower housing.
Also remove grass clippings, dirt, and grime
from the external parts of the entire machine,
especially the engine, shrouding, and the top of
the mower.
IMPORTANT: You can wash the machine
with mild detergent and water. Do not
pressure wash the machine. A
void excessive
use of water, especially near the control panel,
lights, engine, and the battery.
2. Scrape heavy buildup of grass and dirt from the
underside of the mower. Then wash the mower
with a garden hose.
3. Check the condition of the blade(s); refer to
Cutting Blade, page 14.
4. Check the condition of the blade drive belt.
5. Grease the mower deck; refer to Greasing and
Lubrication, page 16.
6. Check and tighten all bolts, nuts, and screws.
Repair or replace any part that is damaged or
defective.
7. Paint all scratched or bare metal surfaces. Paint
is available from your Authorized Service
Dealer.
8. Store the machine in a clean, dry garage or
storage area. Remove the key from the ignition
switch and keep it in a memorable place. Cover
the machine to protect it and keep it clean.
