5. To adjust front-to rear blade slope turn locknut
on rear adjustable link (Fig. 11).
Note: To raise the front of the mower, turn
locknut clockwise, to lower front turn
counterclockwise.
1
2
m–2815

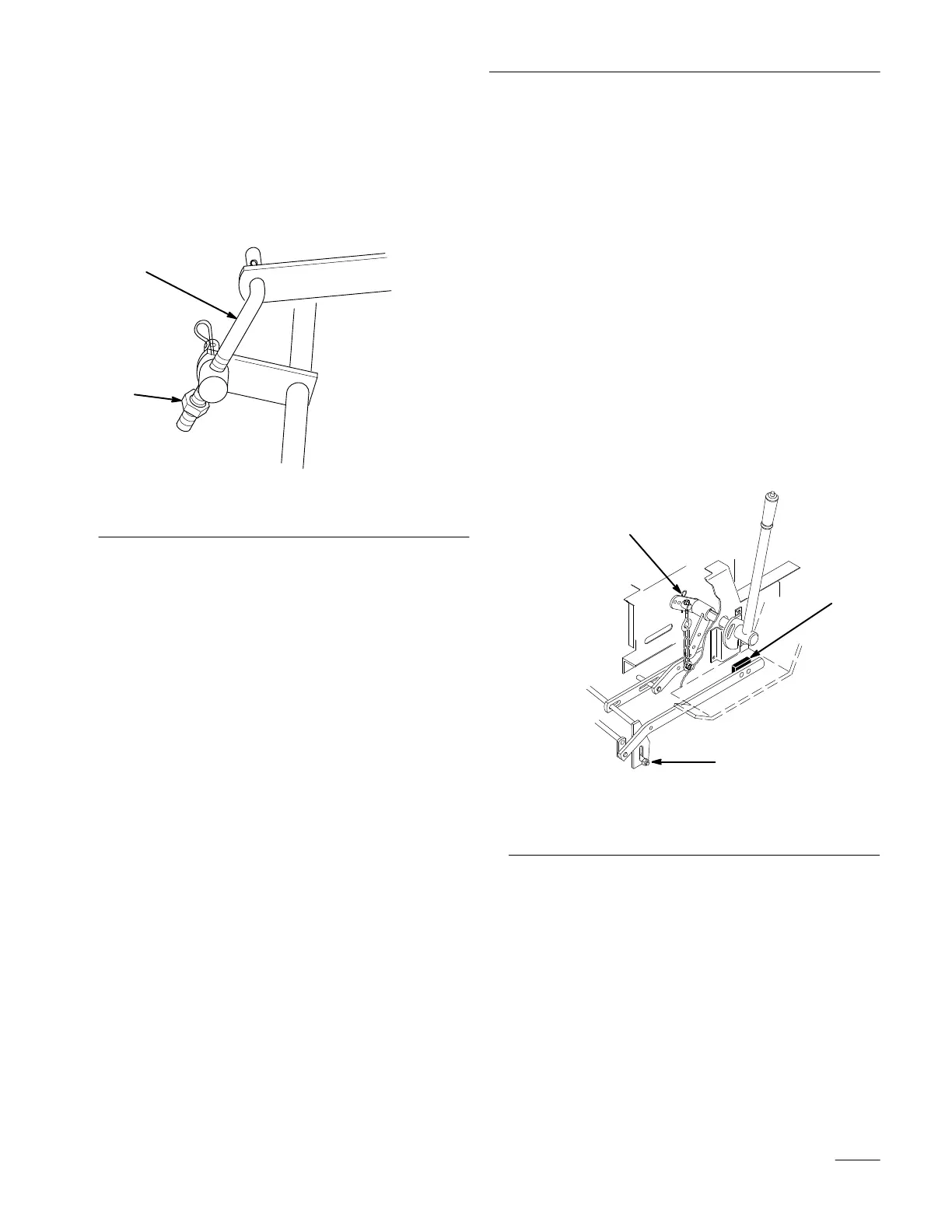

Figure 1
1
1. Adjustable
link
2. Locknut
Transport
Height Adjustment
Transport height is adjusted to stabilize the mower in
the up, locked position.
1. Raise attachment lift lever all the way to the
latched position. Check if bumpers, on rear of
mower draft bars contact under footrests.
2. Adjust lift chain by turning trunnion on eyebolt
in rear hole of tractor lift (Fig. 12). Turn
trunnion clockwise to raise or counterclockwise
to lower mower.
3. Transport level stops are normally in the bottom
of the slot, however they can be adjusted up for
side-to-side level when extra weight from a grass
catcher is on one side (Fig. 12).
m–2813
1
3
2
Figure 12
1. Bumper
2. Trunnion
3. Leveling
bolts
