Installing the Sensor Module
1. The sensor module should be mounted vertically with the antenna wire
extending straight down. Avoid installations where the antenna wire would
contact any metal object.

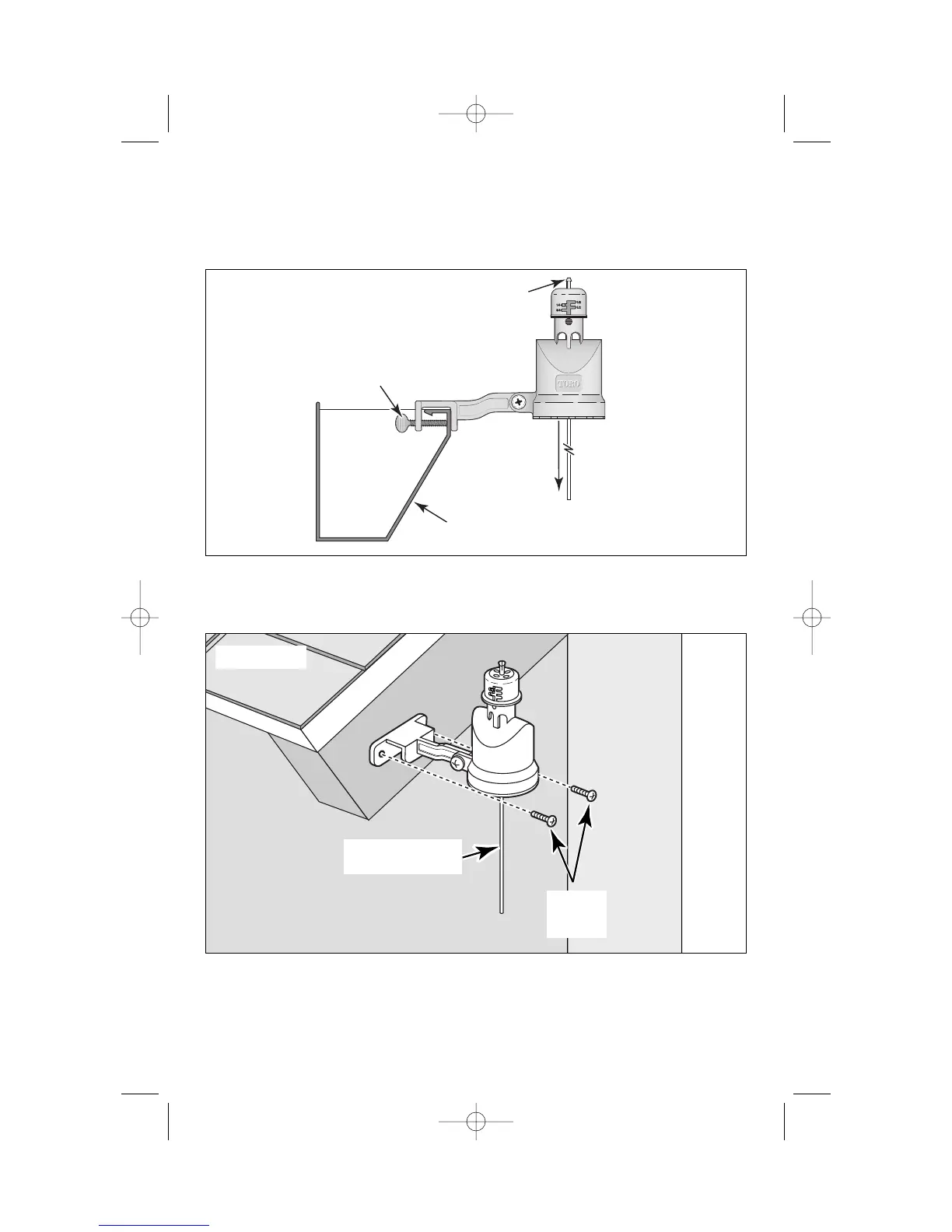

A rain gutter is an ideal location for the sensor module. Simply position the
bracket with the thumbscrew under the gutter lip and tighten to secure (do not
over-tighten) See Figure 7A.
The sensor module can also be mounted on any suitable solid structure such
as the side of the roof, a shed or fence using the two supplied stainless steel
screws. See Figure 7B.
2. Once securely fastened, adjust the sensor module on the mounting bracket as
needed to align the sensor module housing vertically.
5
Rain gutter (cross section view)
Do not over-tighten
thumbscrew
Press and hold
down to test
Figure 7A
Extended Antenna
straight down
Extended Antenna
straight down
Stainless
Steel
Screws
Figure 7 B
