4.
Fold
the
back
rest
support
up
and
replace
the
quick
pin
as
shown
in
Figure
14
.
Note:
The
back
rest
support
acts
as
a
back
tailgate.
g244254

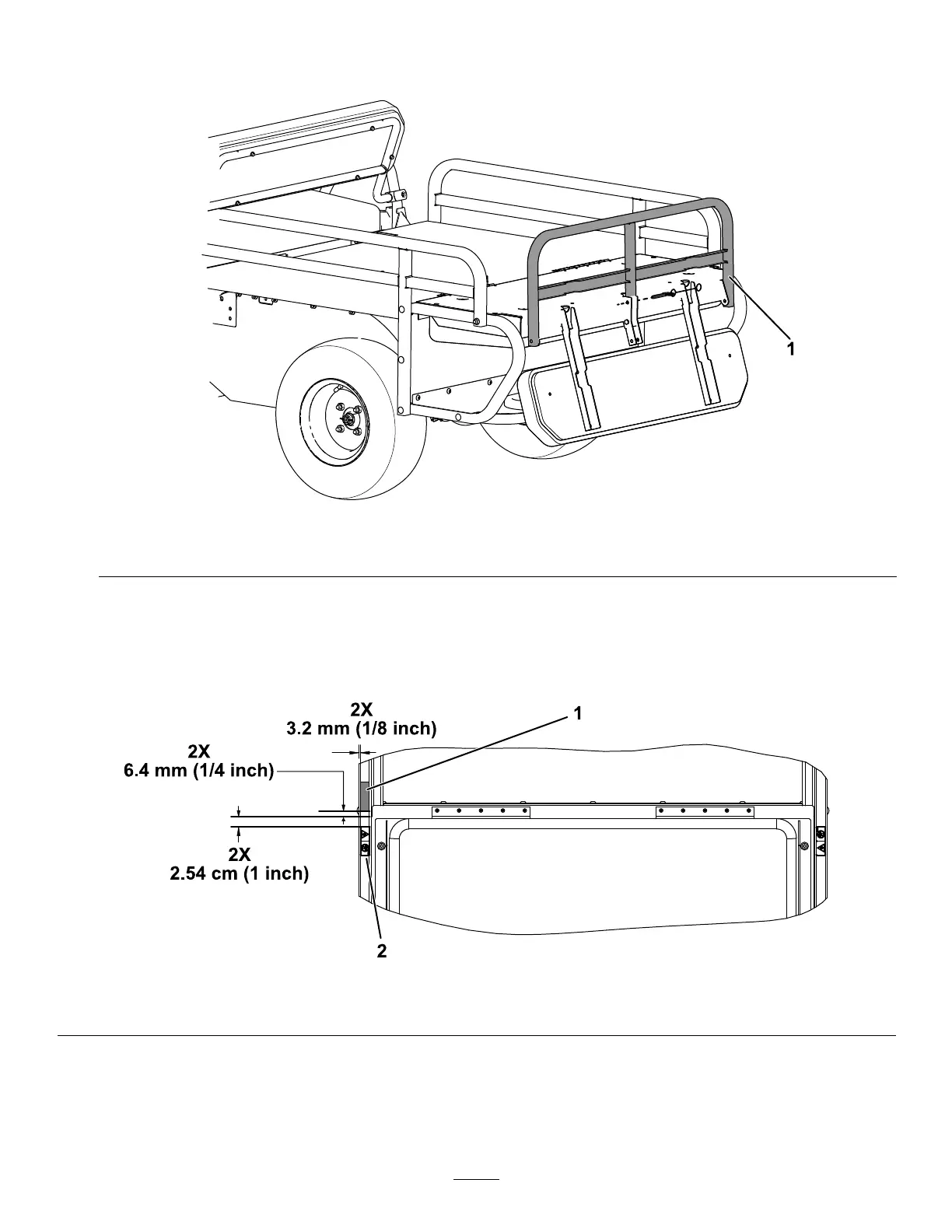

Figure
14
1.
Back
rest
support
Applying
the
Decals
Apply
the
2
pinch-point
warning
decals
(120-0625)
and
2
tipping
hazard
decals
(138-5554)
to
the
rear-facing
seat
frame
using
the
measurements
shown
in
Figure
15
.
g258505
Figure
15
1.
T
ipping
hazard
decal
(138-5554)
2.
Pinch-point
warning
decal
(120-0625)
8
7
