ChangingtheFront
DifferentialOil
4-WheelDriveModelsOnly
ServiceInterval:Every800hours(4-wheeldrive
modelsonly).
Differentialoilspecication:Mobil424hydraulic
uid
1.Parkthemachineonalevelsurface.
2.Engagetheparkingbrake.
3.Shutofftheengineandremovethekey.
4.Cleantheareaaroundthedrainplugontheside
ofthedifferential(Figure45).
5.Placeadrainpanunderthedrainplug.
6.Removethedrainplugandlettheoilowinto
thedrainpan.
7.Installandtightentheplugwhentheoilstops
draining.
8.Cleantheareaaroundthell/checkplugonthe
bottomofthedifferential.
9.Removethell/checkplugandaddspeciedoil
untiltheoillevelisuptothehole.
10.Installthell/checkplug.
Inspectingthe
Constant-VelocityBoot
4-WheelDriveModelsOnly
ServiceInterval:Every200hours(4-wheeldrive
modelsonly).
Inspecttheconstant-velocitybootforcracks,holes,
oralooseclamp.ContactyourAuthorizedService
Dealerforrepairifyoundanydamage.
AdjustingtheShiftCables
ServiceInterval:Aftertherst10hours
Every200hours
1.MovetheshiftlevertotheNEUTRALposition.
2.Removetheclevispinssecuringtheshiftcables
tothetransaxle-shiftarms(Figure46).
g248309

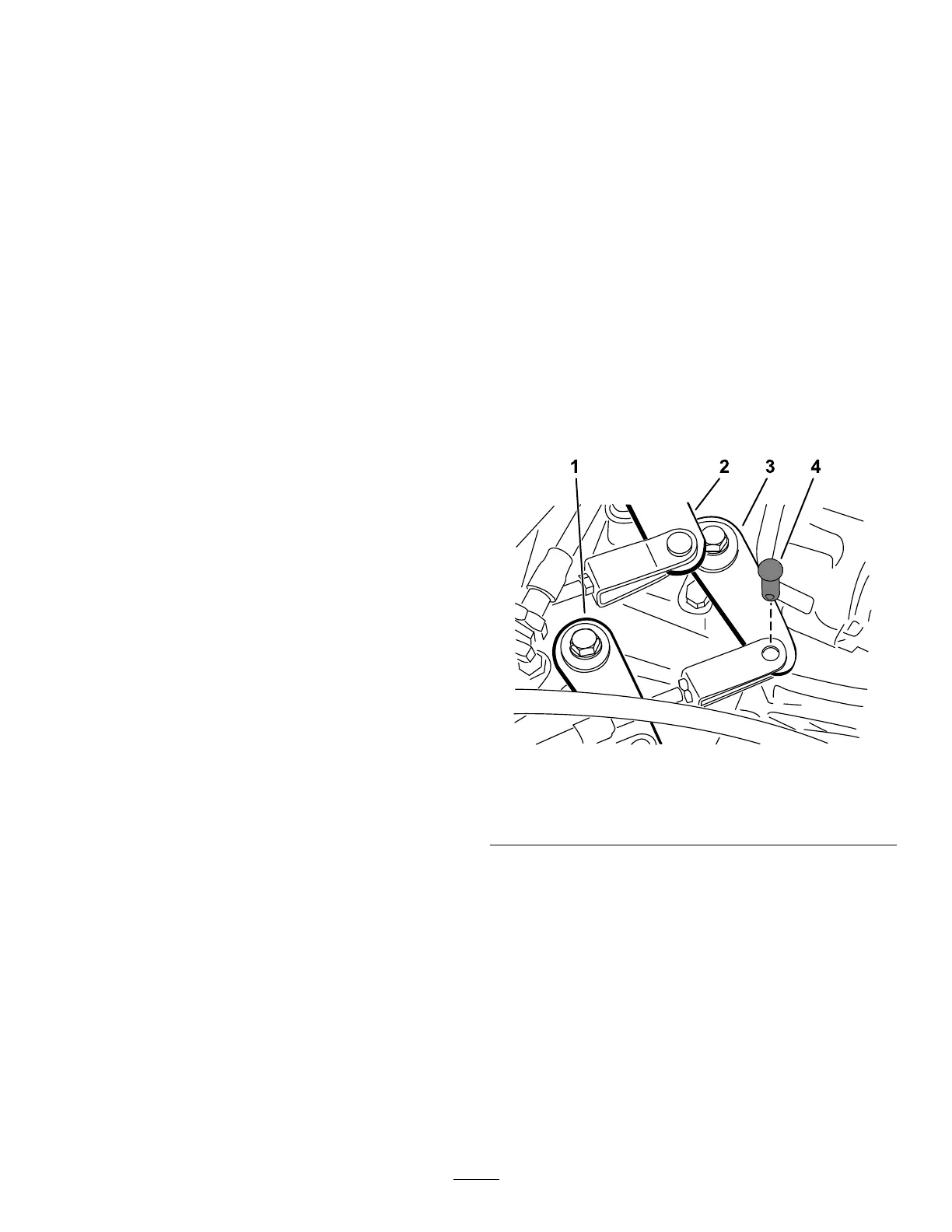

Figure46
1.Shiftarm(HightoLow)3.Shiftarm(FirsttoReverse)
2.Shiftarm(SecondtoThird)4.Clevispin
3.Loosentheclevisjamnutsandadjusteach
clevis,sothatthecablefreeplayisequal
forwardandbackwardrelativetotheholeinthe
transaxle-shiftarm(withthetransaxleleverfree
playtakenupinthesamedirection).
4.Installtheclevispinsandtightenthejamnuts
whennished.
