Workman MD/MDX Page 6 -- 11 Electrical System
Fuse Block
The fuse block is located beneath the dash panel. Fuses
can be removed to check c ontinuity. The test meter
should read less than 1 ohm.
Fuses protect circuits as follows (Fig. 10):
1. The extreme left fuse protects the optional accesso-
ry circuit (if equipped).
2. The middle left 10 ampere fuse protects the ignition
system and horn circuits.
3. The middle right 10 ampere fuse protects the light
circuit.
4. The extreme right 10 ampere fuse protects the pow-
er point circuit. A maximum of a 15 ampere fuse is al-
lowed.

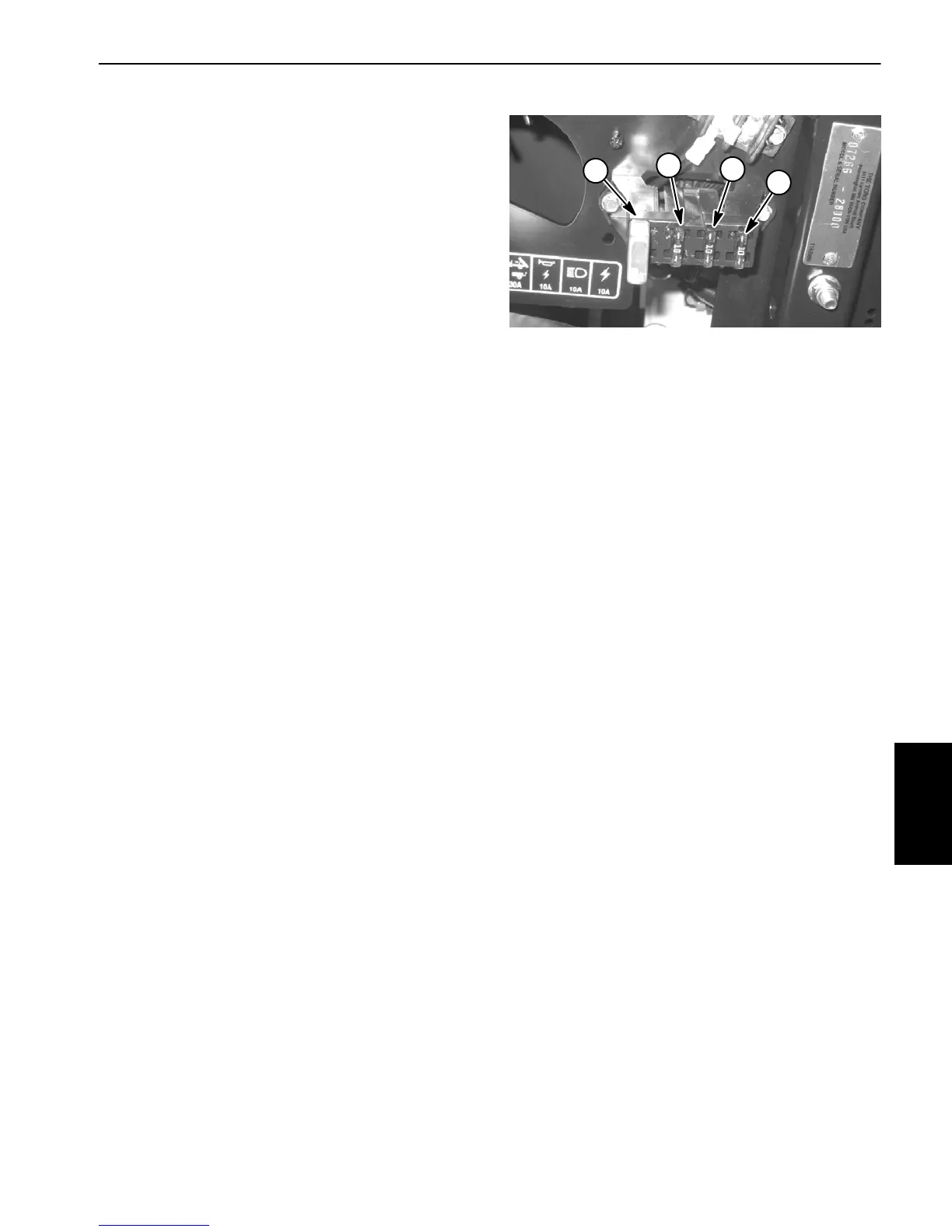

Figure 10
1. Option
2. Ignition system fuse
3. Lights fuse
4. Power point fuse
1
2
3
4
Electrical
System
