Workman MD/MDX Drive TrainPage 5 -- 9
Adjust Shift Cables
1. Park machine on a level surface, stop engine, set
parking brake and remove key from the ignition switch.
Raise and support cargo box.
2. Set the shift lever into the Neutral position. Rotate
driven clutch to insure transmission is in neutral.
3. The transaxle select lever assembly should be in a
level position and parallel to the cable mounting bracket.
4. While holding the cable below the lever, tighten the
lock nut on one of the shift cables to allow 0.030” to
0.060” (0.8 to 1.5 mm) freeplay in the cable (Fig. 11).
5. Repeat process for other shift cable.
6. Pull up on each shift cable to make sure that freeplay
is correct. If necessary, readjust nut (Fig. 11).
7. Start engine and verify transaxle engagement in for-
ward, reverse and neutral as the shift lever is moved.
8. Finally, check vehicle operation in forward, reverse
and neutral. Readjust shift cables if needed for correct
operation.
9. Lower and secure cargo box.

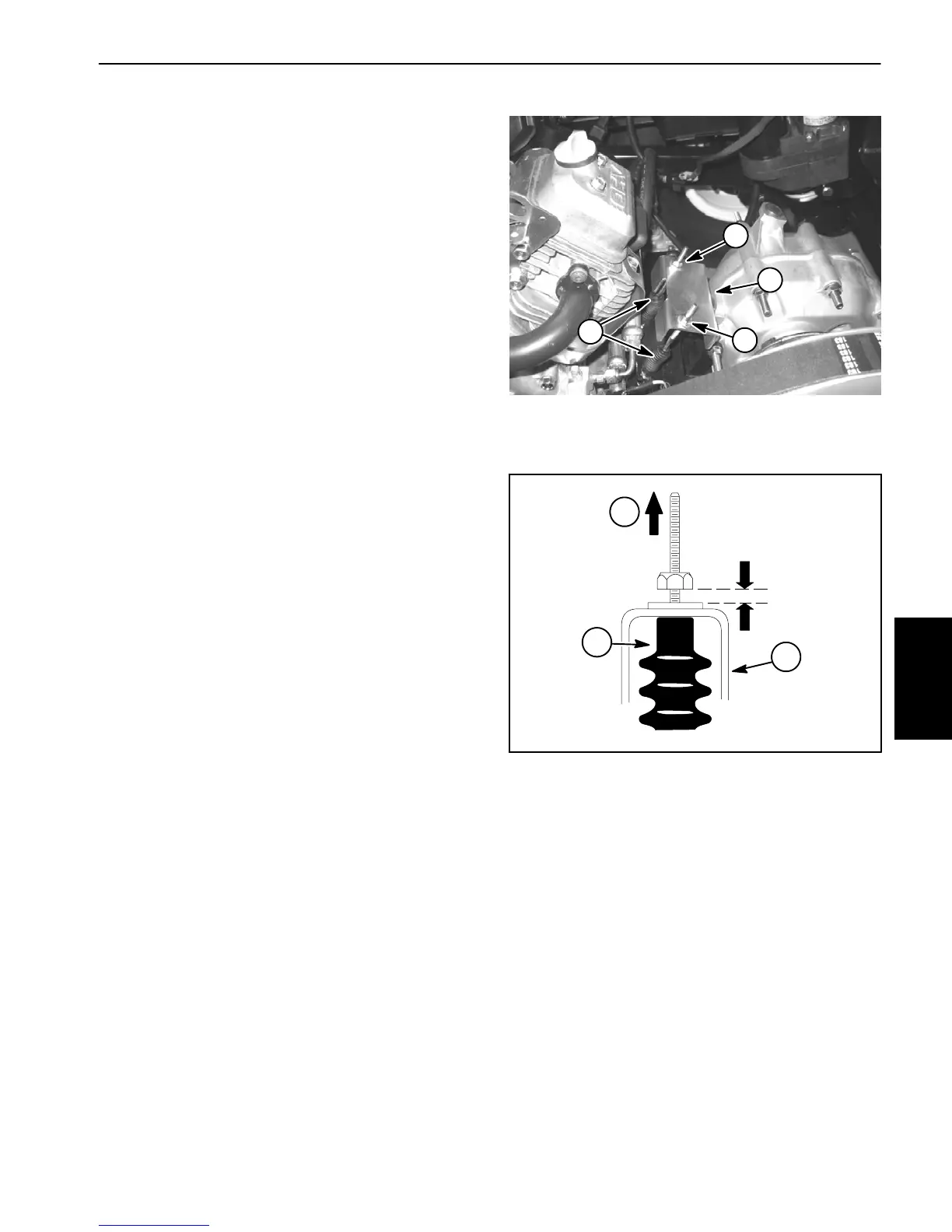

1. Shift cable
2. Select lever assembly
3. Lock nut
Figure 10
2
3
3
1
1. Select lever
2. Cable pull direction
3. Cable boot
Figure 11
3
1
2
(0.8 to 1.5 mm)
0.030” to 0.060”
Drive Train
