Toro Workman MDX Service Manual

Workman MD/MDXPage 7 -- 32Chassis
Front Brake Calipers
1. LH brake caliper
2. RH brake caliper
3. Lock washer (2 per caliper used)
4. Cap screw (2 per caliper used)
5. Wheel hub assembly
6. Brake rotor
7. Socket head screw (4 per rotor used)
8. Spindle (LH shown)
9. A--arm (LH shown)
10. Brake master cylinder
11. Wheel assembly
12. Lug nut (5 used per wheel)
13. Front brake hose

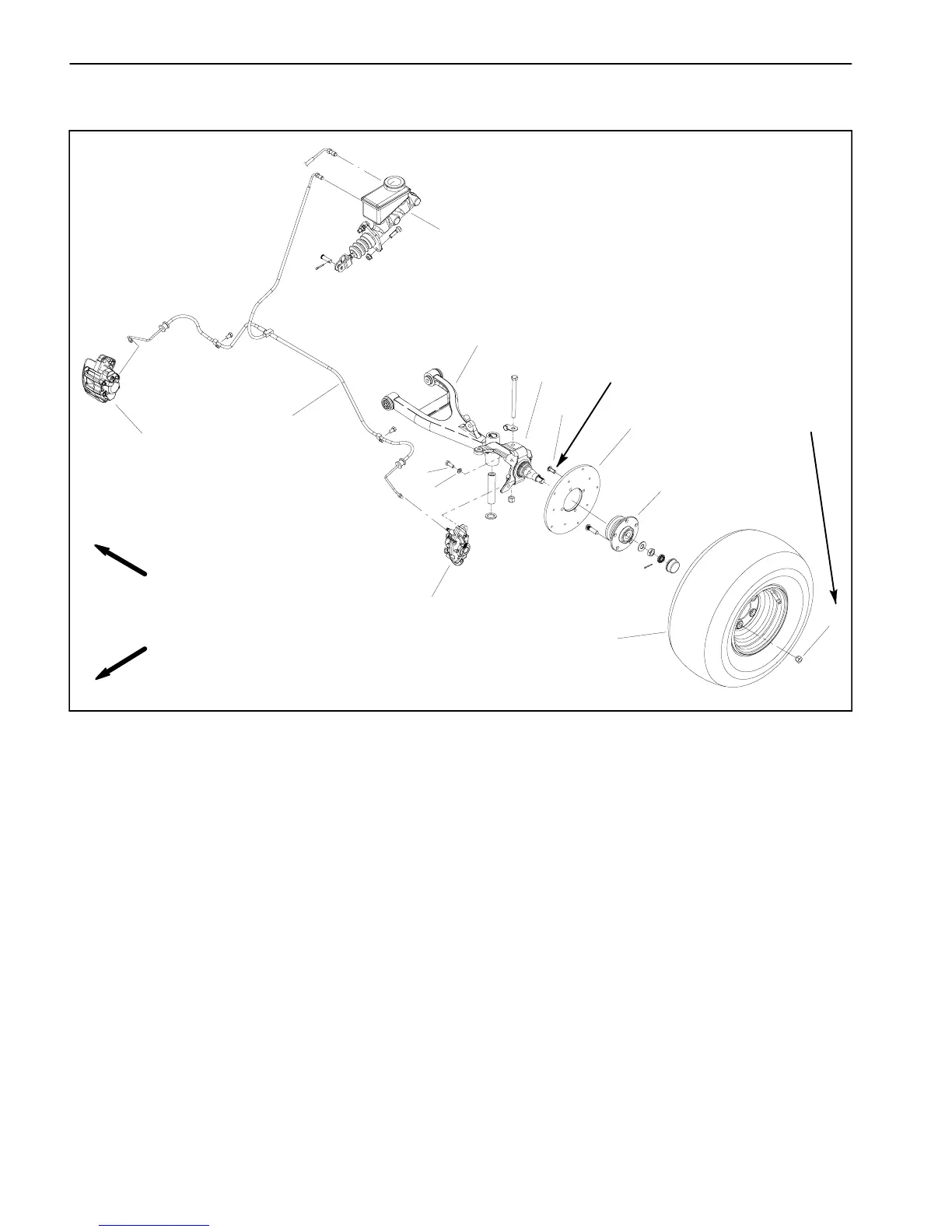

Figure 21
FRONT
RIGHT
8
7
5
6
9
2
1
4
3
10
12
11
45 to 65 ft--lb
(62to88N--m)
Loctite #242
13
