Workman MD/MDX Page 6 -- 29 Electrical System
9. Remove nut, lock washer, flat washer and fiber
washer from A1 and A2 terminals on commutator end
head.

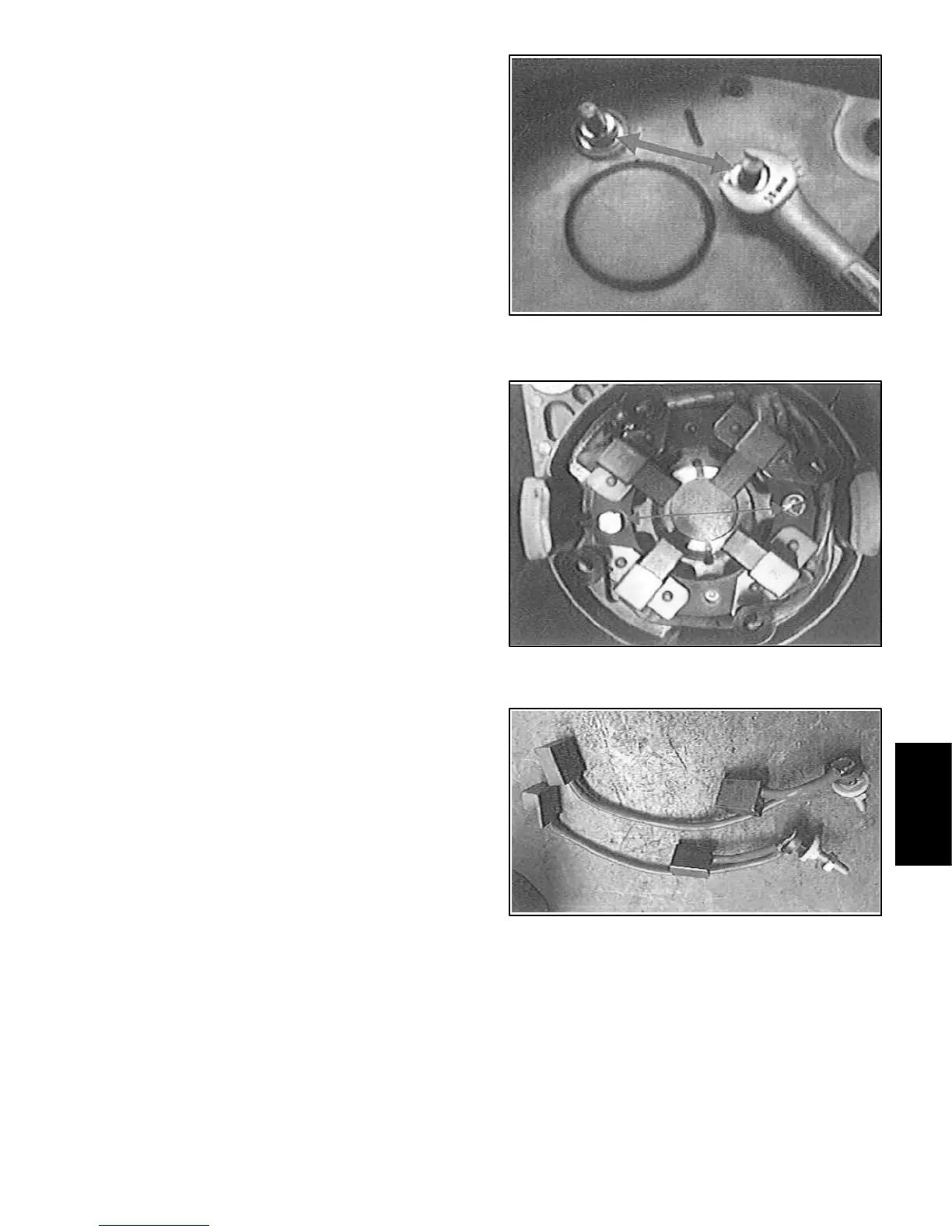

Figure 37
10.Remove two (2) screws that secure the brush box to
the commutator end head. Carefully remove brush box
from the commutator end head.
Figure 38
11. Remove brush assemblies from the brush box.
Minimum brush length is 0.375 in (9.5 mm)
Maximum brush length is 0.790 in (20 mm)
Figure 39
