Workman MD/MDX Page 7 -- 47 Chassis
Removal (Fig. 34)
1. Park machine on a level surface, stop engine, set
parking brake and remove key from the ignition switch.
2. Disassemble cargo box as necessary using Figures
34 and 35 as guides.
Installation (Fig. 34)
1. Assemble cargo box using Figures 34 and 35 as gui-
des.
A. When installing cargo box, use torque specifica-
tions identified in Figure 34.
B. Adjust latch pin (item 3 in Figure 34) so that cargo
box is tight to frame when latched.

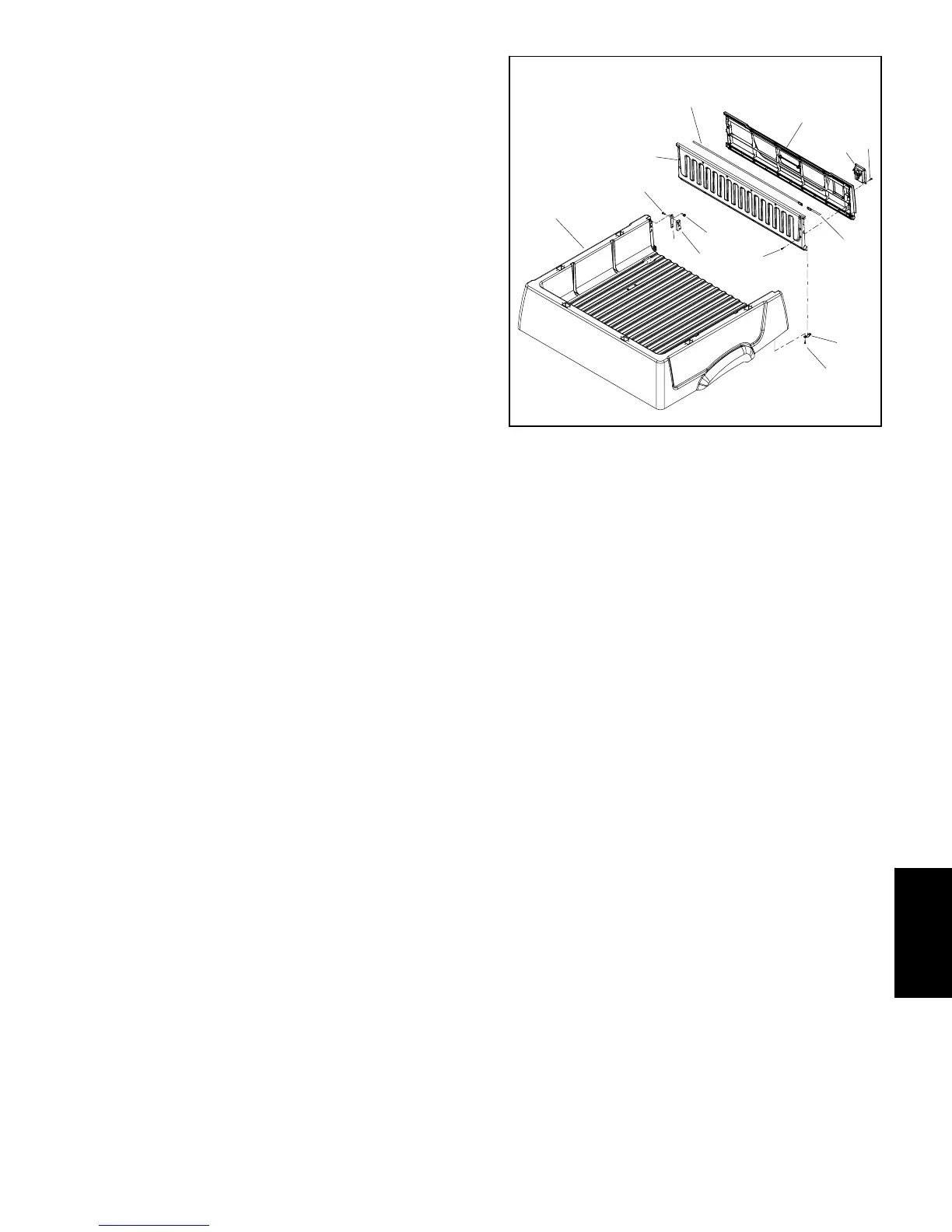

1. Cargo box
2. Inner tailgate
3. Outer tailgate
4. RH latch rod
5. Latch handle
6. Screw (24 used)
7. LH latch rod
8. Retainer (2 used)
9. Striker mount (2 used)
10. Strike latch (2 used)
11. Screw (4 used)
12. Screw (4 used)
Figure 35
2
3
6
8
9
10
11
1
5
7
12
4
6
6
Chassis
Rev. A
