Rev. B
Workman MD Single Cylinder Gasoline EnginePage 4 -- 17
Disassembly
DANGER
Gasoline is flammable. Use caution when storing
or handling it. Wipe up any spilled fuel before
starting the engine.
1. Inspect carbon cannister and a ttached hoses for
damage or obvious leaks. A damaged or leaking cannis-
ter should be replaced.
2. Remove components as needed using Figure 15 as
a guide.
A. If check valve (item 8 in Fig. 15) is removed, note
direction of arrow on valve body f or assembly pur-
poses (Fig. 16).
B. Note location of hose clamps for assembly pur-
poses.
Assembly
1. Install all removed components using Figure 15 as a
guide.
A. If check valve (item 8 in Fig. 15) was removed,
make sure that arrow on valve body points toward
engine.
B. Make sure that fuel hoses are not kinked aft er
installation. Also, secure hoses with hose clamps.

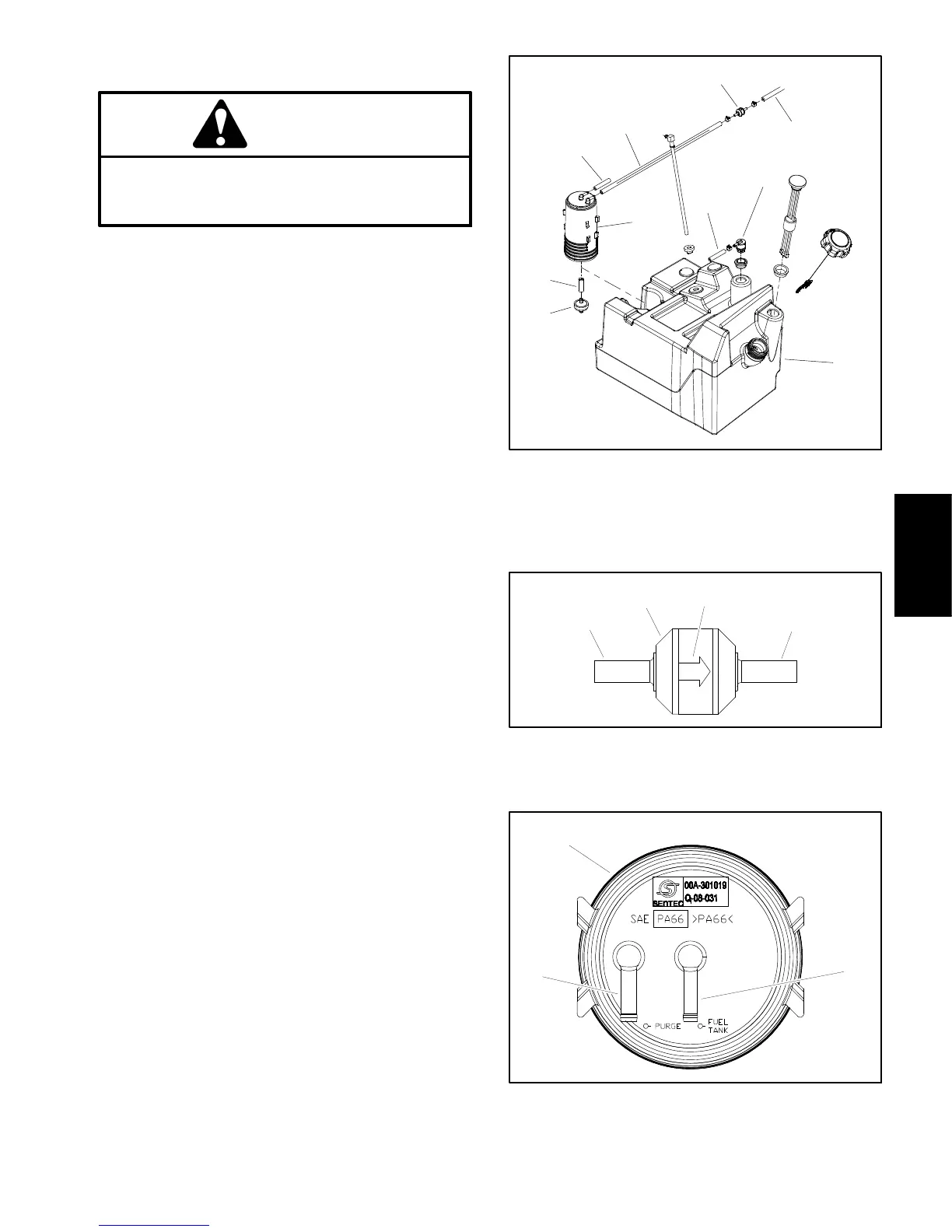

Figure 15
1. Fuel tank
2. Carbon canister
3. Rollover valve
4. Fuel hose (tank vent)
5. Fuel hose
6. Fresh air filter
7. Fuel hose (purge hose)
8. Check valve
9. Fuel hose (to engine)
1
3
2
6
5
9
8
7
4
4
Figure 16
1. Check valve
2. Directional arrow
3. Fitting from canister
4. Fitting to engine
1
2
3
4
Figure 17
1. Top of carbon canister
2. Fitting to rollover valve
3. Fitting to engine
1
3
2
Single Cylinder
Gasoline Engine
