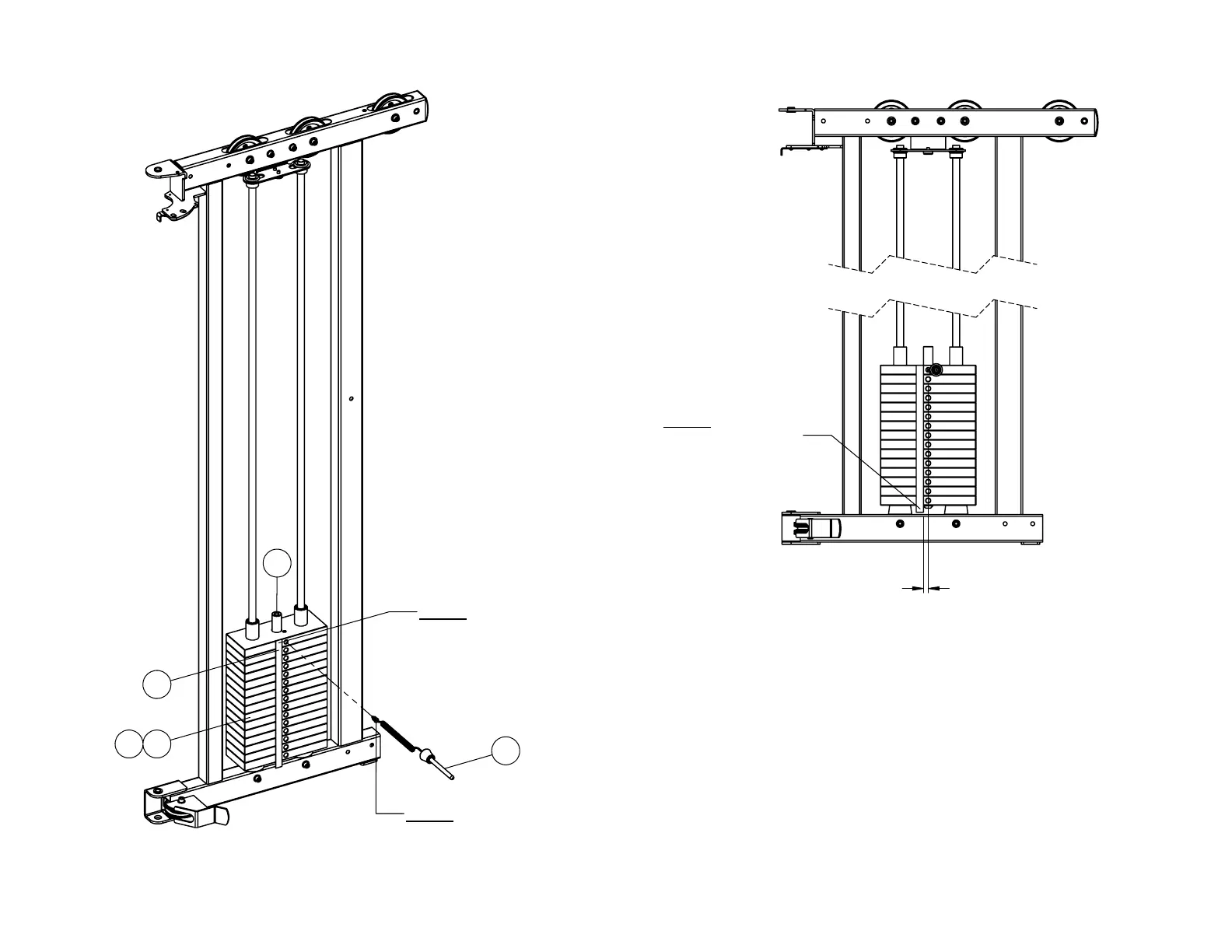

NOTE:
Apply the weight stack labels to the
left of the holes on weight plates by
following the installation instructions
printed on the label.
NOTE:
After weight stack labels have been
applied, use a rubber mallet to carefully
install insert plug of the weight stack
pin into the center hole of the head plate.
18
1617
1/2"
NOTE:
Discard labels 16-20
RIGHT SIDE VIEW
STEP 21
26
To Next Page
