40
24
25
2

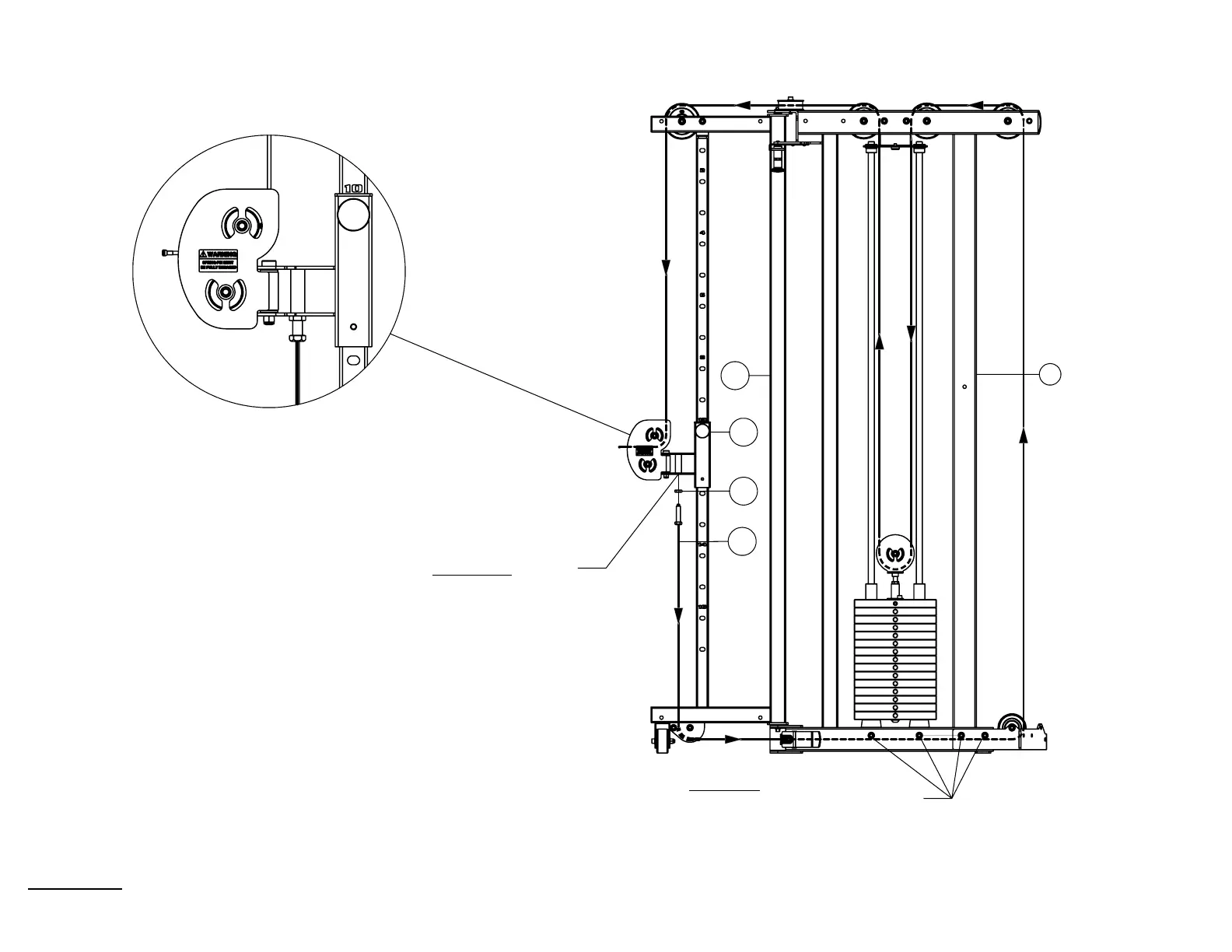

TO START:
THREAD JAM NUT
ON TO CABLE END.
THREAD CABLE END
INTO CARRIAGE AS
SHOWN IN INSET VIEW.
ROUTE CABLE IN
DIRECTION OF ARROWS.
SEE CAUTIONS
BELOW.
41
CAUTION: MAKE SURE CABLE IS
ROUTED UNDER FRAME BOLTS
RIGHT SIDE
30
STEP 25 CABLE ROUTING
CAUTION: When routing cables, make sure that the cables are seated
in the groove of the pulleys and underneath all retaining bolts, pins or
brackets. Failure to do so, may result in damage to cable.
