Toshiba B-SX6T Series Supply Loading Instructions

2

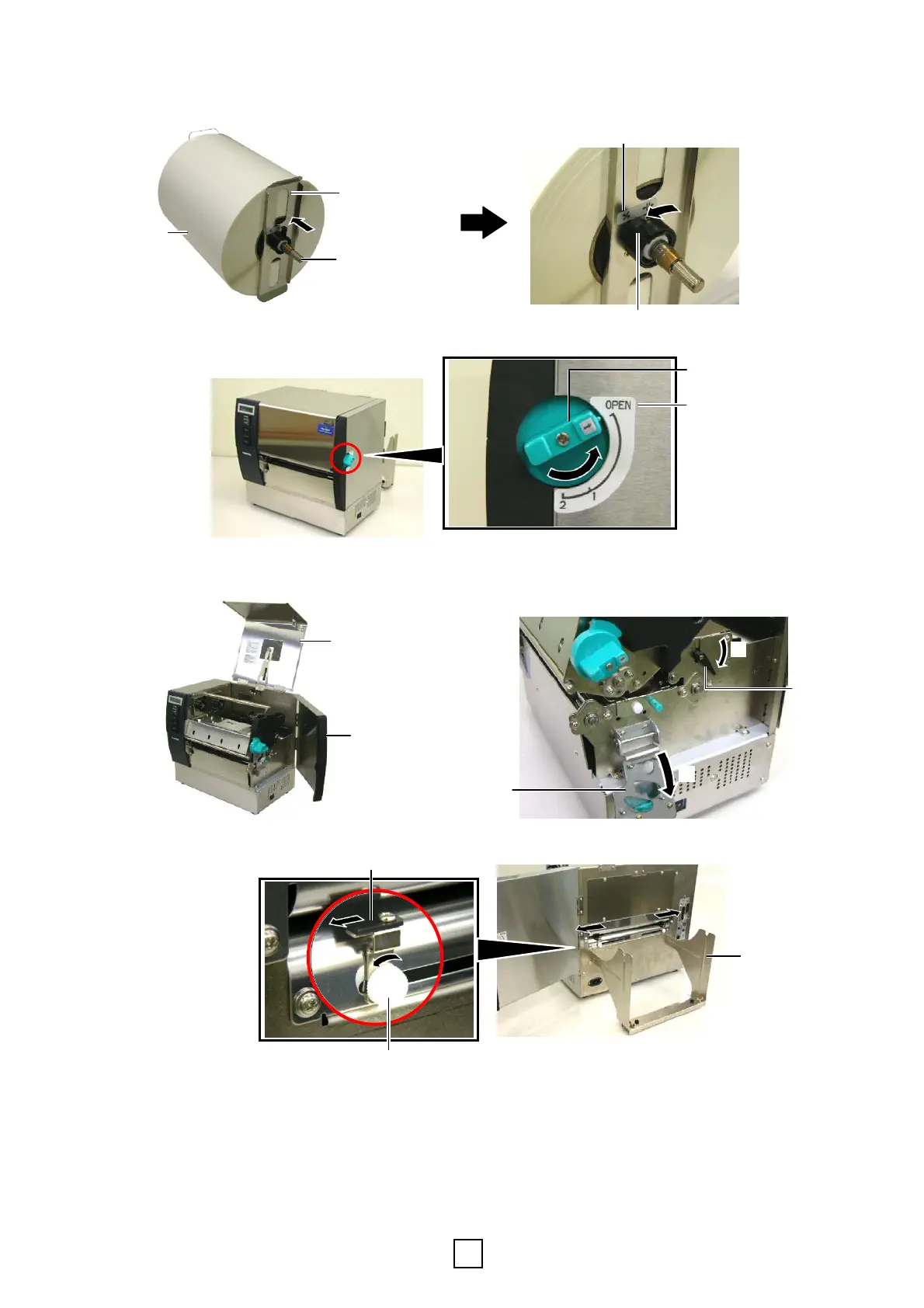

3. Install the other Media Holder onto the Supply Shaft from the opposite side.
Turn the Locking Lever of the Media Holder to the “Close” position.
4. Set the Head Lever to the “OPEN” position.
5. Open the Top Cover and the Right Side Cover.
Open the Head Lock Plate (), and turn the Pinch Roller Lever clockwise () to release the Pinch Roller.
6. Loosen the Media Guide Screws on the printer back, and move the Media Guides outside.
Media Holder
Supply Shaft
Locking Leve
r
“Close” Position
Media
Head Lever
“OPEN” position
Top Cover
Right Side Cover
Head Lock Plate
Pinch Roller
Lever


Media Guide Scre
w
Media Guide
Supply Holder
Frame
