Toshiba B-SX6T Series Supply Loading Instructions

5

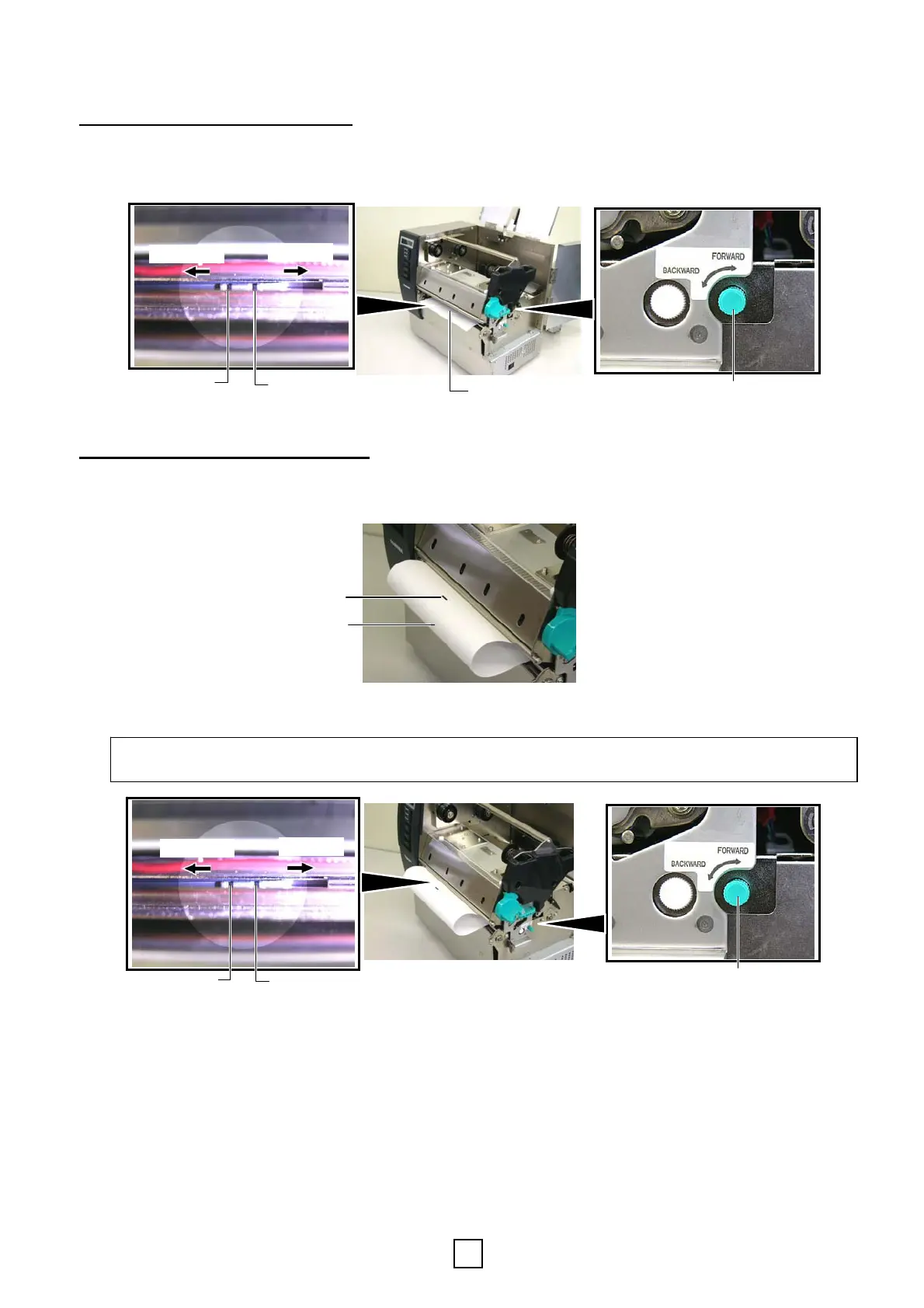

The following procedures show how to adjust the position of the movable sensor.
Feed Gap Sensor position adjustment
When using a label stock without black marks, the Feed Gap Sensor is used to detect the print start position.
Looking inside of the Media Outlet, move the Movable Sensor by rotating the Adjustment Knob until the Feed
Gap Sensor aligns with a gap. (T
he right side hole indicates the position of the Feed Gap Sensor.)
Black Mark Sensor position adjustment
When using media with black marks, the Black Mark Sensor is used to detect the print start position.
(1) Pull the media about 500 mm out of the front of the printer, turn the media back on it’s self and feed it under the
print head.
(2) Move the Movable Sensor by rotating the Adjustment Knob, until the Black Mark Sensor aligns with a black
mark. (The left side hole indicates the position of the Black Mark Sensor).
Media Outlet
Adjustment Knob
Left side hole:
Black Mark Senso
r
Right side hole:
Feed Gap Sensor
Forward
Backward
Media
Black Mar
k
Left side hole:
Black Mark Senso
r
Right side hole:
Feed Gap Sensor
Forward
Backward
Adjustment Knob
NOTE: Be sure to set the Black Mark Sensor to detect the centre of the black mark, otherwise a paper jam or no
paper error may occur.
