Toshiba DVR80KF Service Manual

2-4-7 N25E1AVDA
Note: When removing FFC(B37A) of Capstan Motor
from BOARD AV, be sure to replace the new
FFC(B37A).
(Don’t solder FFC which removed once again)
[19]
Cap Belt
B37A
(S-8)
[19]
[20] Cap Belt
A

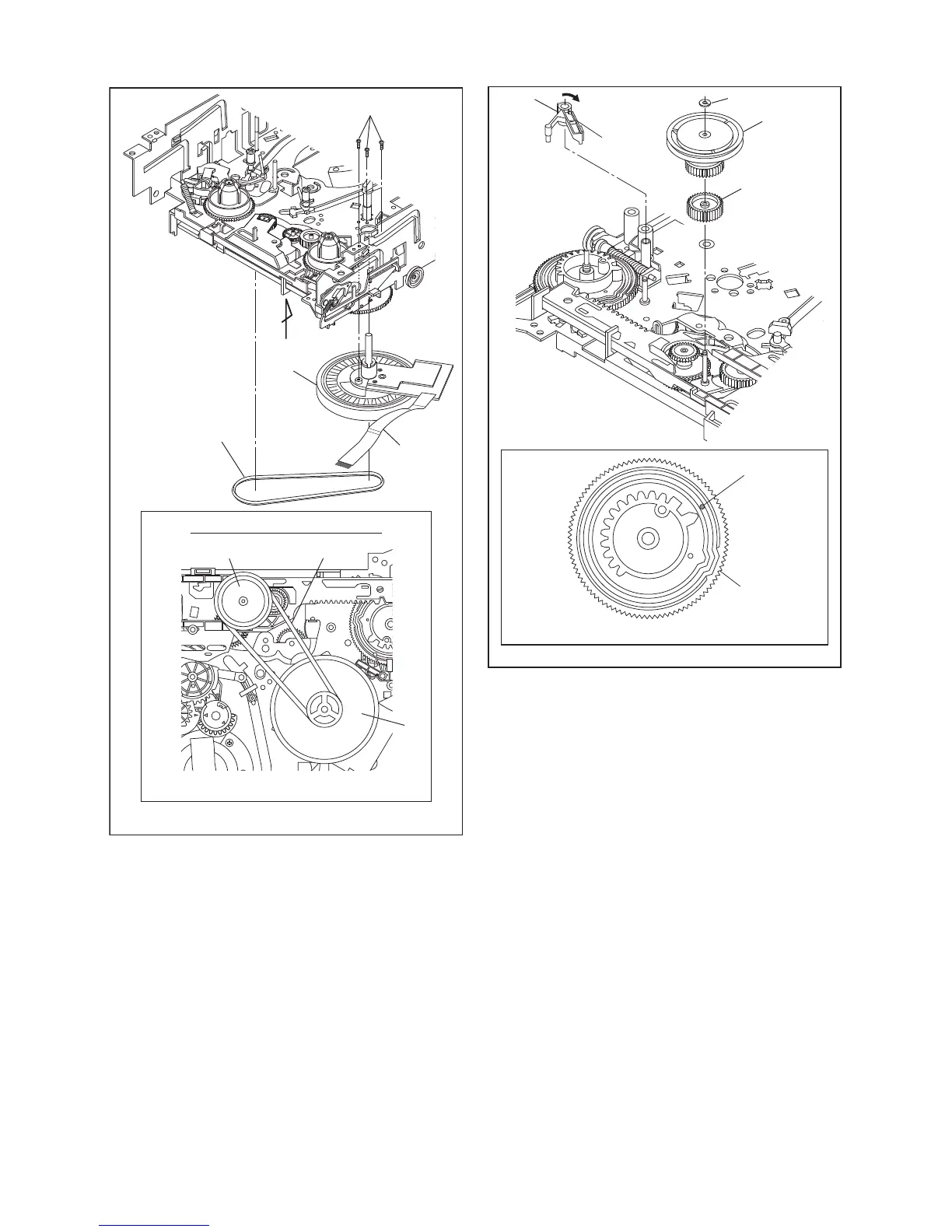

Installation position of Cap Belt
View for A
Fig. DM11H
(L-6)
[22]
[20]
(C-1)
[21]
[27]
Pin on [22]
Position of pin on [22]
turn
Fig. DM12H
