e-STUDIO200L/202L/203L/230/230L/232/233/280/282/283 © 2004 - 2010 TOSHIBA TEC CORPORATION All rights reserved
ADJUSTMENT
3 - 96
3.13 Adjustment of the Finisher (MJ-1025)
3.13.1 Adjusting the folding position (Electrical system (Finisher/Saddle
unit))
The folding position is adjusted by matching it with the stapling position.
If you have replaced the finisher controller PCB, you must transfer the existing settings to the new PCB.
Perform the following if the folding position must be adjusted for some reason.
Both the folding and stapling positions may deviate for some type of paper.
In such a case, change the “middle stapling position” in the user mode of the host machine.
<Procedure>

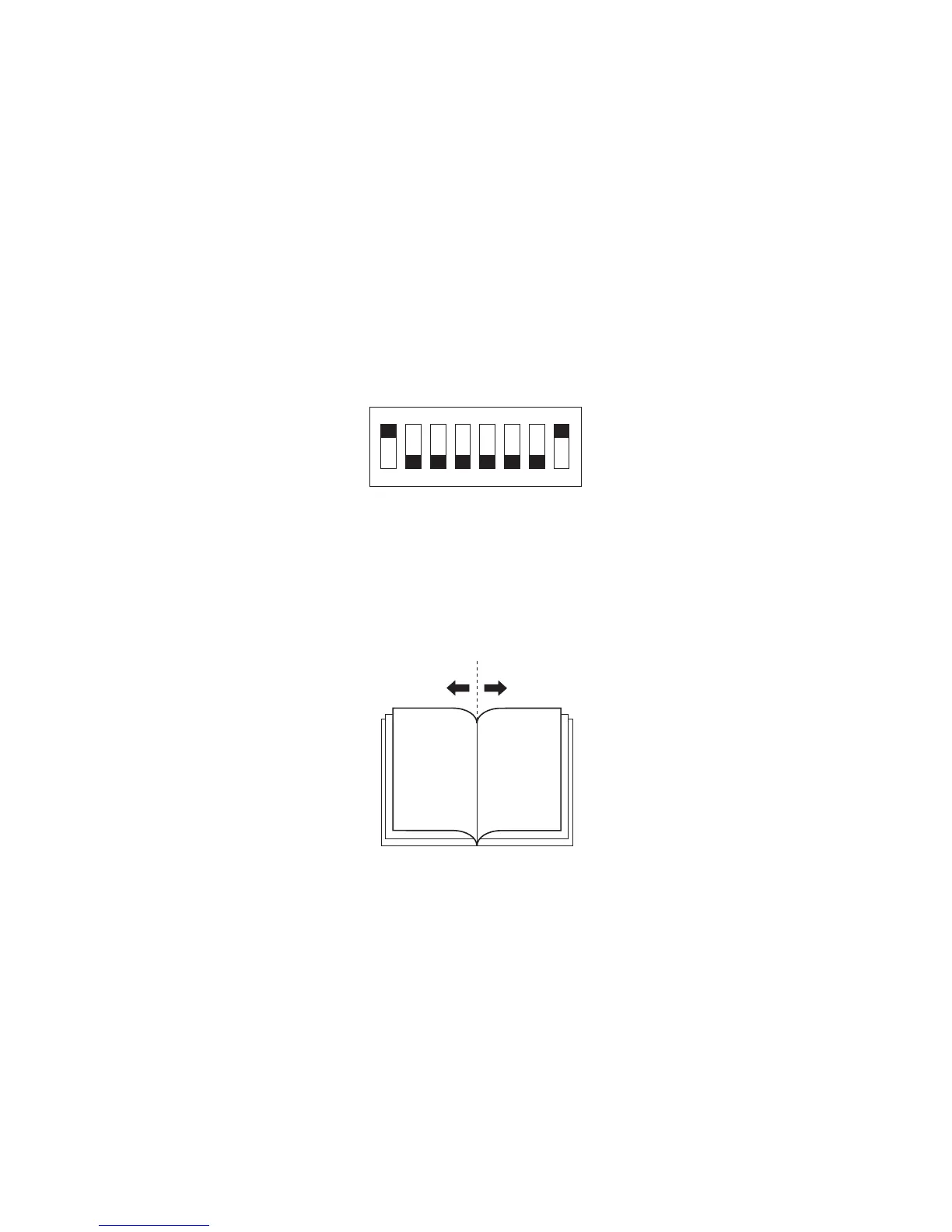

(1) Set SW1 on the finisher controller PCB as follows:
Fig. 3-128
(2) Adjust the folding position by pressing the PSW1 or PSW2 on the finisher controller PCB a
required number of times. Pressing the switch once moves the folding position about 0.16 mm.
• To move the folding position in the “-” direction, press the PSW1.
• To move the folding position in the “+” direction, press the PSW2.
• Pressing the PSW1 and PSW2 at the same time clears the adjustment value.
Fig. 3-129
(3) When adjustment of the folding position is complete, set all bits of the SW1 on the finisher con-
troller PCB to OFF.
(4) Enter the bind mode of the host machine and check whether the folding position is adjusted prop-
erly. If adjusted improperly, adjust the folding position again.
To Next Page
