Toshiba F Series User Manual

Step Tool
40
㪛㫀㫊㪸㫊㫊㪼㫄㪹㫃㫀㫅㪾㩷㪧㫉㫆㪺㪼㪻㫌㫉㪼㫊

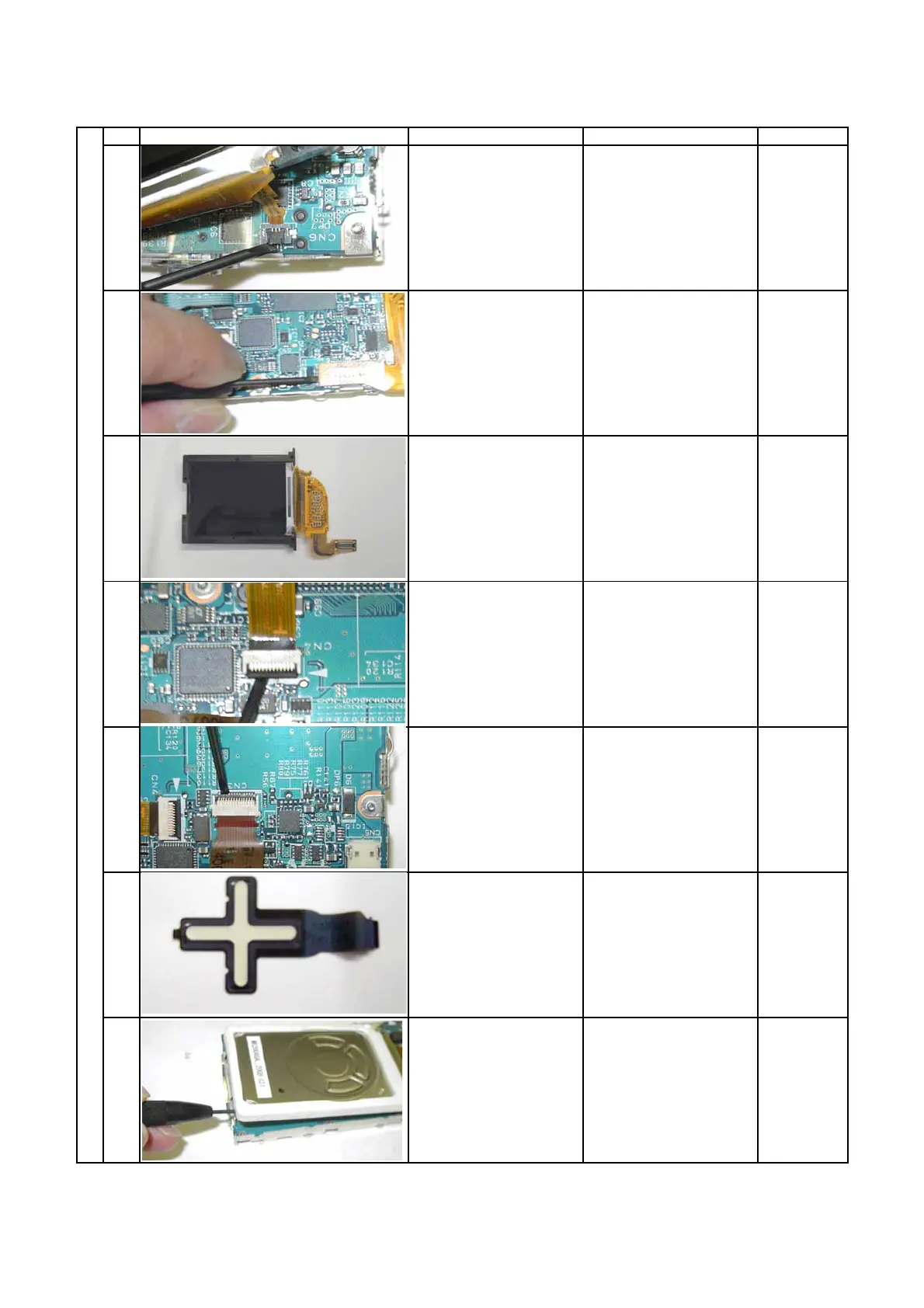

Photo Description Note
Disconnect the backlight
cable (CN6).
Lift up the lock lever on
the side opposite to the
cable insertion direction,
and release the lock.
A view of the LCD
Assembly removed.
Release the lock of the
connector section and
disconnect the cross key
cable. (CN3)
Lift up the lock lever
(black) of the connector
with the flathead
screwdriver and release
the lock.
Flathead
screwdriver
Lift up the PJ2
connector with the
flathead screwdriver,
and disconnect it.
Flathead
screwdriver
Release the lock of the
connector section and
disconnect the cable
from the side panel SW.
(CN4)
Lift up the lock lever
(black) of the connector
with the flathead
screwdriver and release
the lock.
Flathead
screwdriver
Remove the HDD. Insert the flathead
screwdriver between the
P.C. board and the HDD
shock absorber, and lift
up the HDD.
Flathead
screwdriver
Flathead
screwdriver
A view of the cross key
removed.
14
20
19
18
15
16
17
