DISASSEMBLY INSTRUCTIONS
B1-2
1.
2.
3.
4.
5.
6.
7.
8.
Short circuit the position shown in Fig. 1-5 using a
soldering iron. If you remove the DVD Deck with no
soldering, the Laser may be damaged.
Remove the 4 screws 1.
Remove the DVD Deck in the direction of arrow (A).
Disconnect the following connectors:
(CP2301, CP2302 and CP2303).
Remove the 2 screws 2.
Remove the DVD PCB in the direction of arrow (B).
Remove the 4 screws 3.
Remove the Deck Shield in the direction of arrow (C).
1-5: DVD PCB/DVD DECK (Refer to Fig. 1-5)
NOTE
Before your operation, please read “PREPARATION OF
SERVICING”.
Use the Lead Free solder.
Manual soldering conditions
• Soldering temperature: 350 ± 5˚C
• Soldering time: Within 2 seconds
• Soldering combination: Sn-3.0Ag-0.5Cu
When Soldering/Removing of solder, use the drawing
equipment over the Pick Up Unit to keep the Flux smoke
away from it.
When installing the DVD Deck, remove all the soldering on
the short circuit position after the connection of Pick Up
PCB and DVD PCB connector.
1.
2.
3.
4.
5.

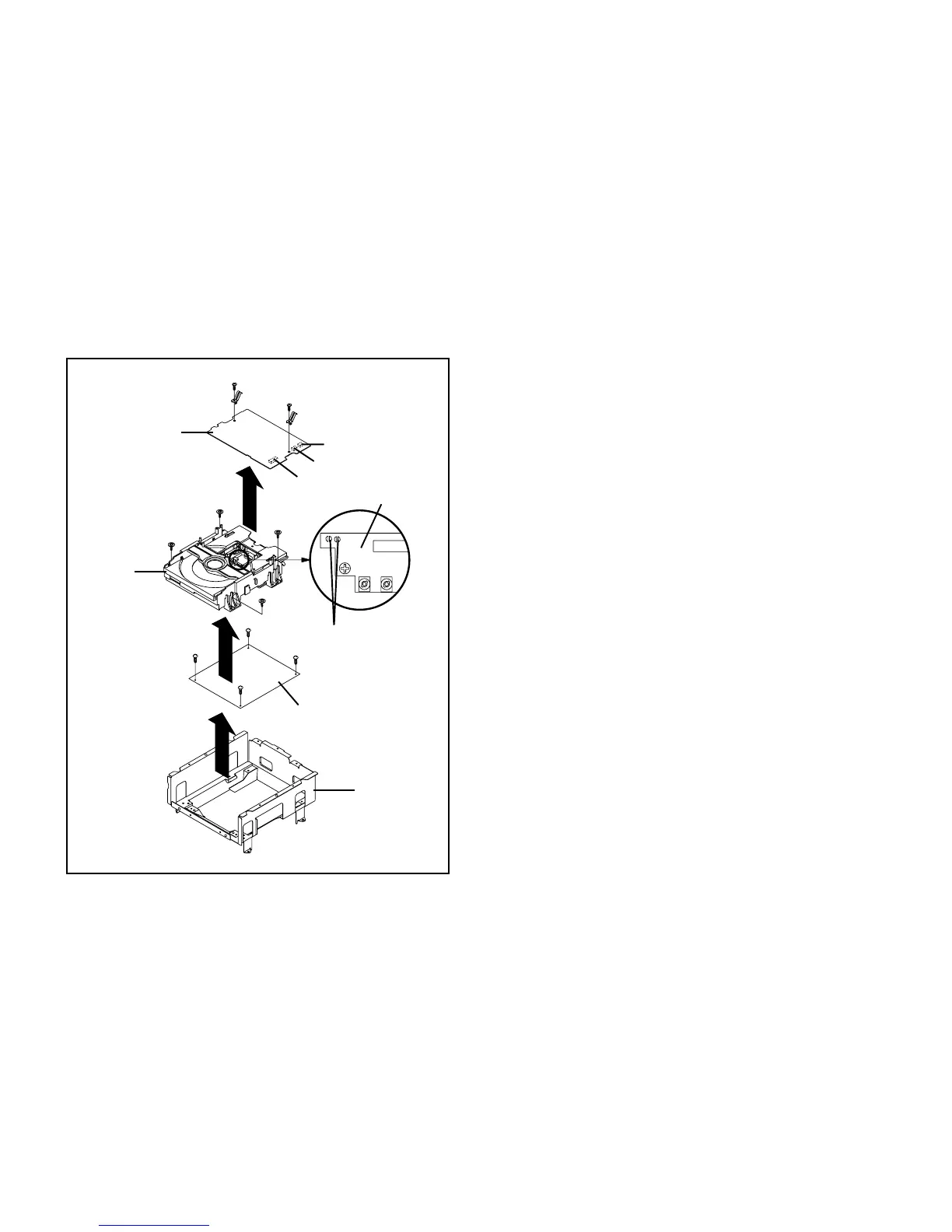

Fig. 1-5
DVD Deck
Deck Angle
2
2
Short circuit using a
soldering iron.
Pick Up PCB
(A)
1
1
1
1
DVD PCB
CP2303
CP2302
CP2301
(C)
3
3
3
3
Deck Shield
(B)
To Next Page
