44

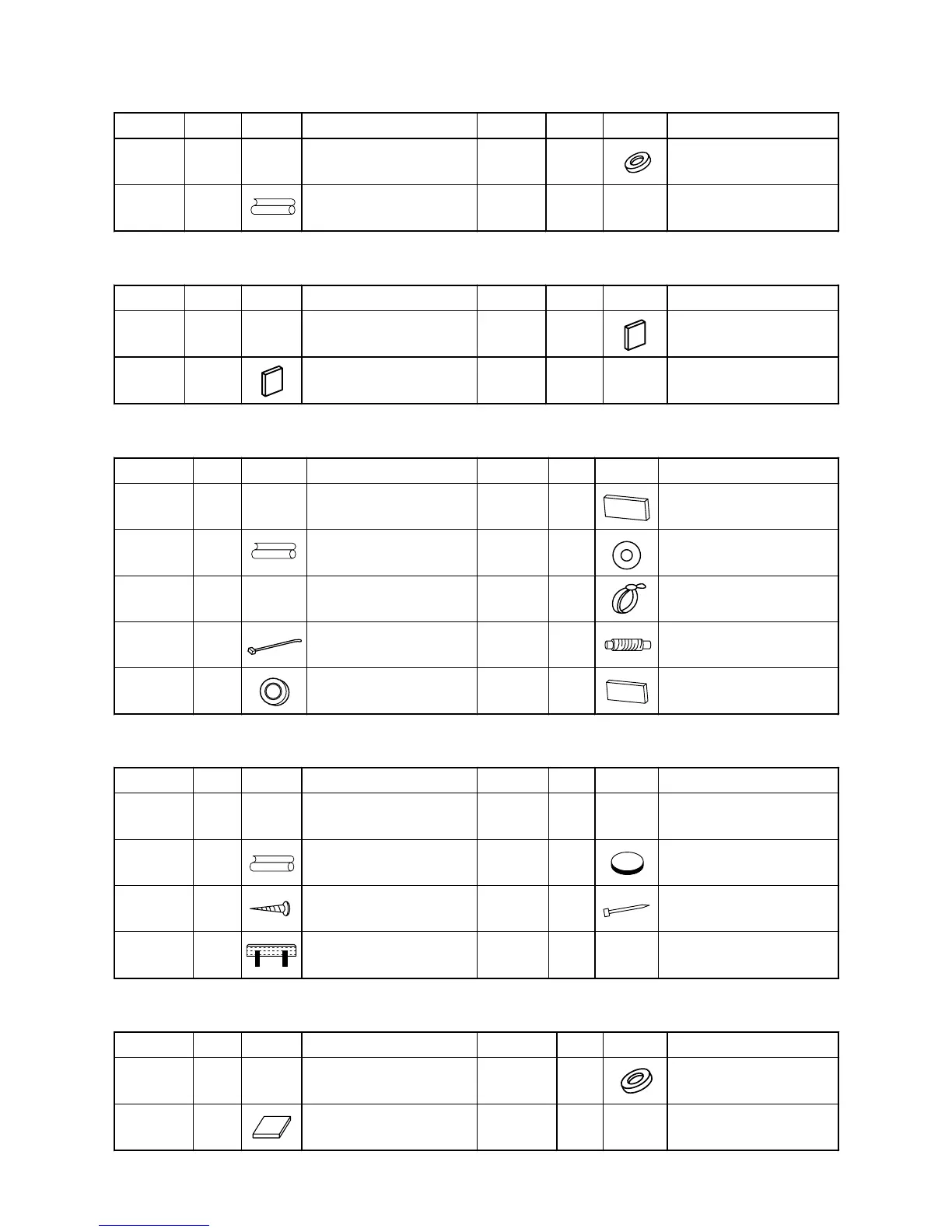

Concealed duct type
Part name Q’ty Shape Use Part name Q’ty Shape Use
Installation
Manual
1 —— —— Washer 8 For hanging down the unit
Insulated
pipe
2
For heat insulating pipe
connecting section
Concealed duct high static pressure type
Part name Q’ty Shape Use Part name Q’ty Shape Use
Installation
Manual
1 —— —— Insulation 1
For insulating the liquid pipe
connection
Insulation 1
For insulating the gas pipe
connection
Under ceiling type
Part name Q’ty Shape Use Part name Q’ty Shape Use
Installation
Manual
1
This
manual
(Be sure to hand over to
customers)
Heat
insulator
1
For heat insulation of drain
connecting section
Heat
insulating pipe
2
For heat insulation of pipe
connecting section
Washer 4 For hanging-down unit
Installation
pattern
1 —
For confirmation of ceiling
opening and main unit position
Hose band 2 For connecting drain pipe
Banding band 2 For drain hose forming Drain hose 1 For drain piping
Bushing 1 For power supply cord protection
Heat
insulator
1 For sealing of piping hole
High wall type
Part name Q’ty Shape Use Part name Q’ty Shape Use
Installation
Manual
1
This
manual
(Be sure to hand over customers)
Installation
pattern
1 ——
Used for drilling holes and
positioning for installation plate
Heat
Insulating pipe
2
For heat insulating of pipe
connecting section
Screw cap 4 Cover on fixing screw at side plate
Wood screw
Ø5.1 x 45
l
12 Used to fix installation plate
Bundling
band
4
Used to fix attached pipe heat
insulating material
Installation
plate
1 Used install indoor unit wall unit
Floor standing cabinet type
Part name Q’ty Shape Use Part name Q’ty Shape Use
Installation
Manual
1 —— Bushing 1
For installation in the wire
knockout
Heat
insulation
2
For insulating the indoor unit pipe
connections
