45

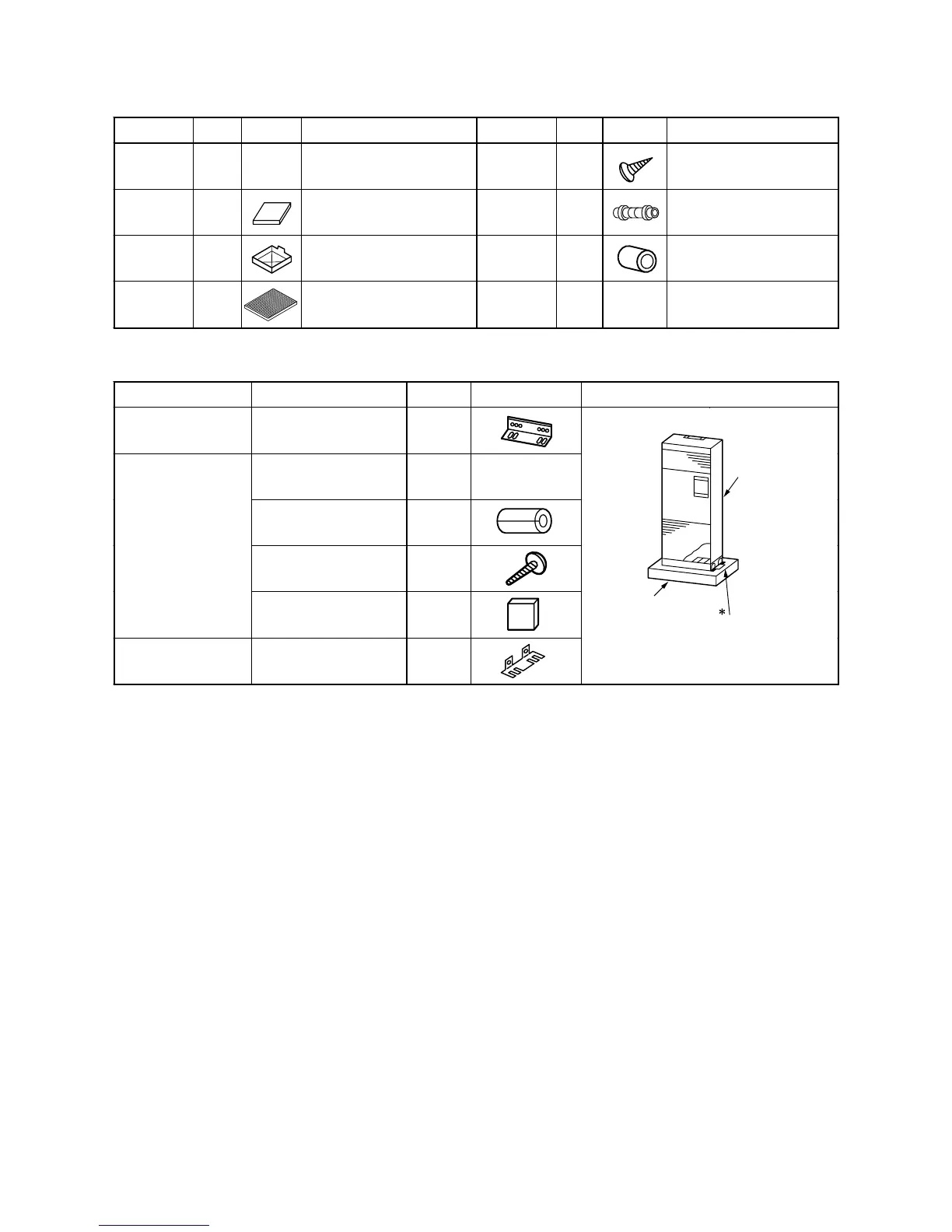

Floor standing concealed type
Part name Q’ty Shape Use Part name Q’ty Shape Use
Installation
Manual
1 —— ——
Drain receiver
fixing screw
1 For fix the drain receiver
Heat
insulation
2
For heat insulating the indoor unit
pipe connections
Drain hose 1
For water draining
(Attaches to the drain receiver.)
Drain pan 1 For water draining
Heat insulated
pipe
1
For insulatin
the drain receiver
(Attaches to the drain receiver.)
Drain filter 1
Drain filter
(inside the drain receiver)
Floor standing type
Attached position Part name Q’ty Shape Stored position
Upper part of main unit Bracket for fixing to wall 1
Installation Manual 1 These sheets
Thermal insulator 2
Screw bolt
∗
4 (2)
Accessory bag
Thermal insulator 2
Lower part of main unit Bracket for fixing to floor 2
∗ Quantities in the parentheses are for MMF-AP0361, AP0481 and AP0561 models.
The brackets for fixing to the floor are already mounted to the indoor unit.
Indoor unit
Base for
transportation
Using 4 (2) screw bolts,
fix to the base.
To Next Page
