78

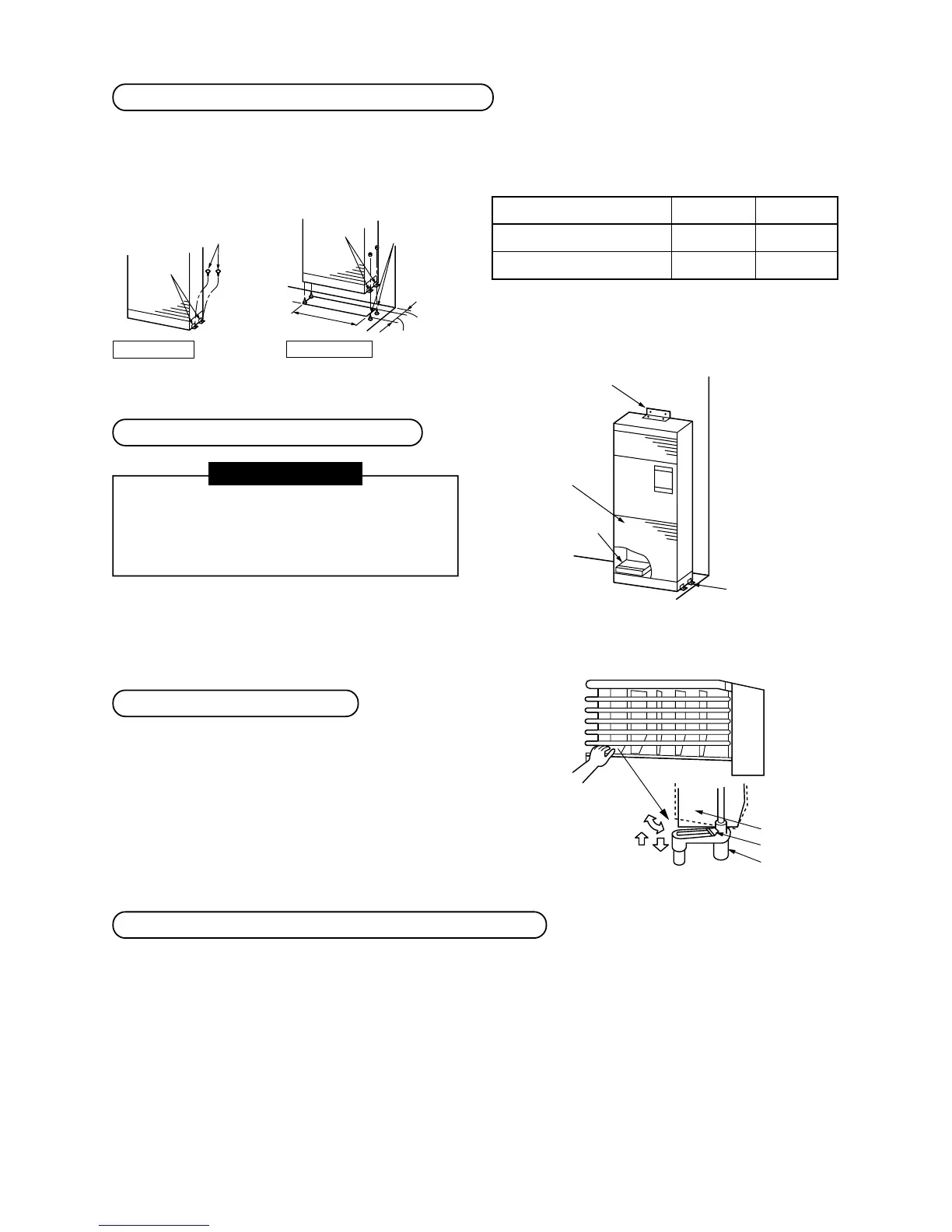

In case of fixing the indoor unit to the floor
Use the attached the attached floor fixing bracket to fix the lower right and left sides of the indoor unit to the floor.
To fix to the indoor unit, use the side plate screws and use the screw bolts or anchor bolts for fixing to the floor
respectively, and then fix the indoor unit at total four positions, two positions for right and left each.
Model MMF-
AP0151H to AP0271H type
AP0361H to AP0561H type
A mm
88
258
B mm
42 to 92
52 to 102
Indoor unit fixing figure (Example)
REQUIREMENT
In case of installing the indoor unit to the floor and
the wall other than wooden floor and wall, the six
anchor bolts (M8 × L50 or longer) are required.
Procure them at the local site.
Direction of vertical louver
The direction of the auto turn louver (Vertical louver)
may change during transportation. As shown below,
lift up the vertical louver lightly, turn it matching with
the direction of the plastic coupling rod, insert it into
clearance of the extrusion, and then arrange the
direction of the vertical louver to the desired direction.
Installation of remote controller (Sold separately)
For installation of the wired remote controller, follow the Installation Manual attached with the remote controller.
For installation of the wireless remote controller, follow to the Installation Manual attached to the remote
controller.
• Draw out the remote controller cord together with the refrigerant pipe or drain pipe. Be sure to put the remote
controller cord at upper side of the refrigerant pipe or drain pipe.
• Do not put the remote controller on the place where is exposed to direct sunlight or near a stove, etc.
• Operate the remote controller, check the indoor unit surely receives the signal, and then install the remote
controller. (Wireless type)
• Install the remote controller 1m apart from the devices such as TV or stereo.
(Image may be disturbed or noise may be output.) (Wireless type)
A
B
640mm
Screws for
side plate
Screws for
side plate
Anchor bolts
(Total 4 at right
and left)
Wooden wall
Concrete wall
Screws bolts
(Total 4 at right and left)
Bracket for
fixing to wall
Air inlet grille
Electric
parts cover
Bracket for
fixing to floor
Turn the vertical louver
while lifting up lightly,
and then insert it into the
clearance of extrusion of
the coupling rod.
Vertical louver
Extrusion
Coupling rod
To Next Page
