Toshiba MMD-AP0181H Installation Manual

172
140
120
100
80
60
40
20
0
200 400 600480
External static pressure (Pa)
Air volume (m³/h)
Standard air volume: 480m³/h
Air volume limit (Max)
Air volume limit (Min)
140
120
100
80
60
40
20
0
300 500 570 700
External static pressure (Pa)
Air volume (m³/h)
Standard air volume: 570m³/h
High static pressure 1H tap
Low static pressure H tap
Standard L tap
Standard H tap
Air volume limit (Min)
140
120
100
80
60
40
20
0
1200 350600 2000
External static pressure (Pa)
Air volume (m³/h)
Standard air volume: 650m³/h
High static pressure 1H tap
Low static pressure H tap
Standard L tap
Standard H tap
Air volume limit (Max)
Air volume limit (Min)
140
120
100
80
60
40
20
0
500 700 780 900
External static pressure (Pa)
Air volume (m³/h)
Standard air volume: 780m³/h
High-static pressure 2H tap
High static pressure 1H tap
Low static pressure H tap
Standard L tap
Standard H tap
Air volume limit (Max)
Air volume limit (Min)
Air volume limit (Max)
Long life filter
Long life filter
Long life filter
Long life filter
High-static pressure 2H tap
High static pressure 1H tap
Low static pressure H tap
Standard L tap
Application lim
it
Application limit
Standard H tap
High-static pressure 2H tap
Application limit
High-static pressure 2H tap
Application limit

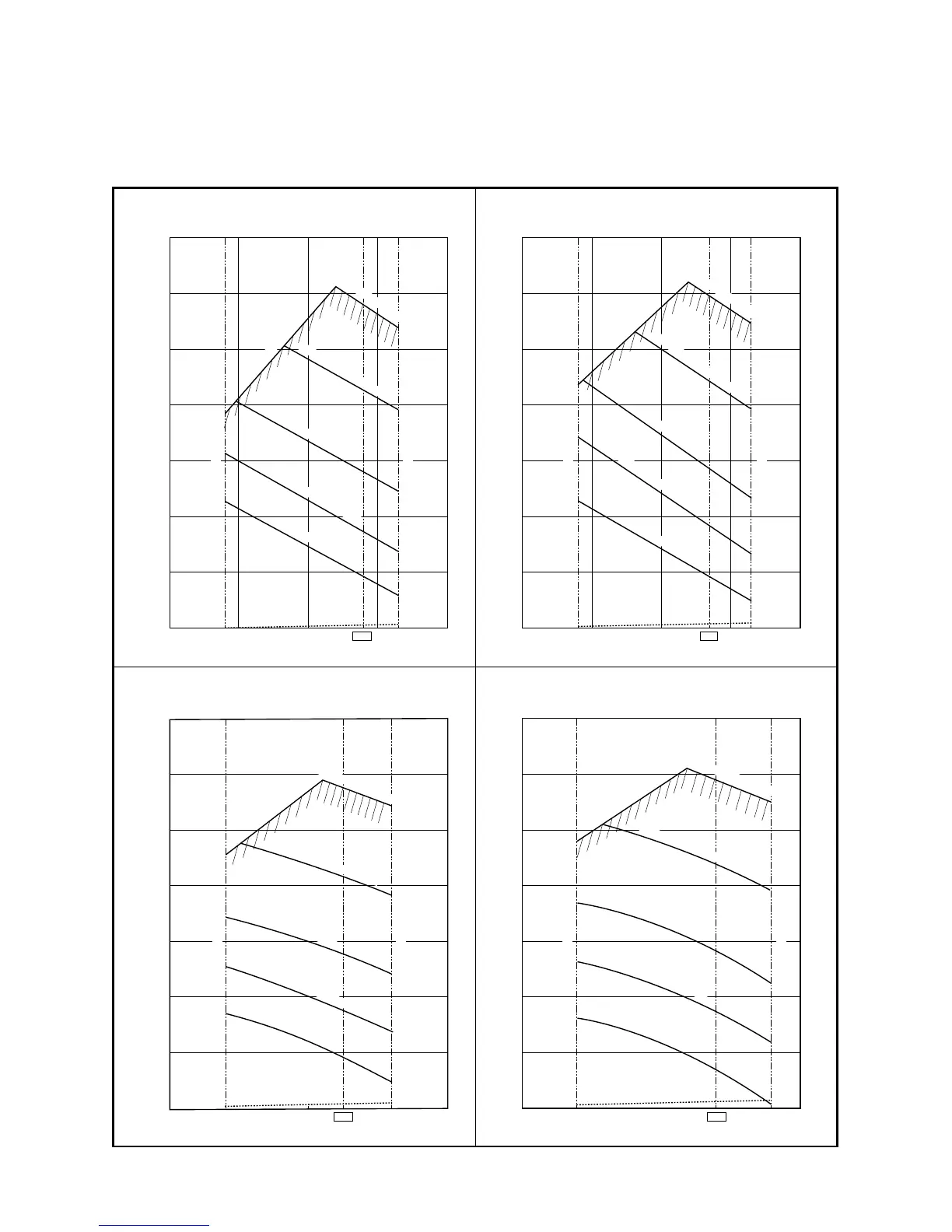

17. FAN CHARACTERISTICS
• Concealed Duct Standard type
In case of square duct flange of discharge section
MMD-AP0071BH, AP0091BH
MMD-AP0151BH
MMD-AP0121BH
MMD-AP0181BH
