Introduction
10
LIN E 1 IN
VID EO
AUDI O
L (MO NO)
R
VID EO
AUDI O
L
R
OUT PUT
DIGITAL AUDIO
VHF/UHF
COAX IAL
LINE 1 I N
VIDEO
AUDIO
L
(MONO)
R
VIDEO
AUDIO
L
R
OUT PUT
DIGITAL A UDIO
VHF/U HF
COAXIAL

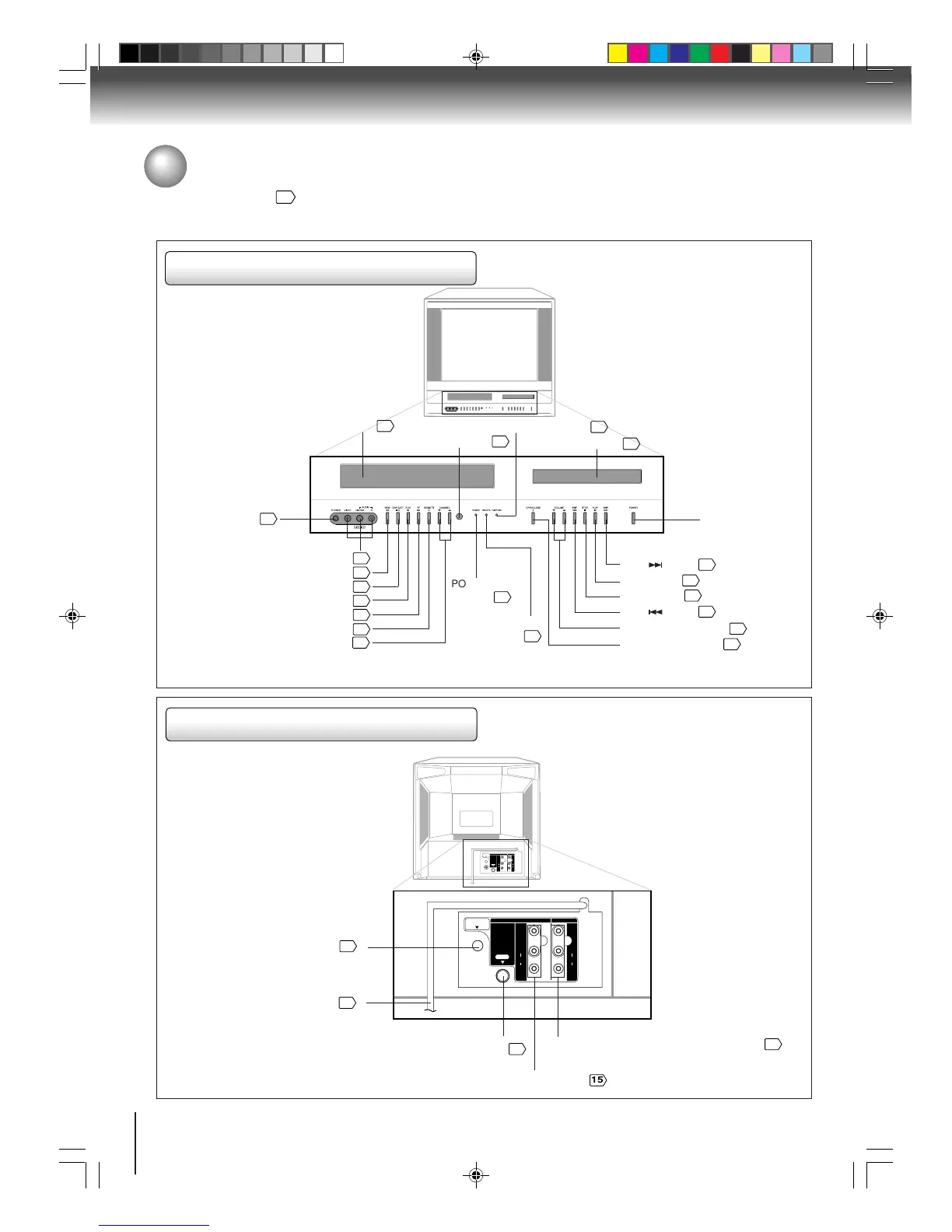

Front panel
Rear panel
STOP/EJECT button
33
Cassette loading slot
33
*AUDIO (L/R)/VIDEO IN (LINE IN 2) jacks
42
CHANNEL ▲/▼ buttons
24
REW (Rewind) button
34
REC/OTR button
38
PLAY button
34
FF (Fast Forward) button
34
Remote sensor
12
OPEN/CLOSE button
44
VOLUME ▲/▼ buttons
23
SKIP button
46
STOP button
44
PLAY button
44
SKIP button
46
POWER button
AUDIO (L/R)/VIDEO IN (LINE 1 IN) jacks
42
AUDIO (L/R)/VIDEO OUT jacks
15
POWER
indicator
19
REC/OTR
indicator
38
TIMER REC indicator
40
Disc tray
44
COAXIAL DIGITAL AUDIO OUT jack
16
RF IN (VHF/UHF) jack
14
AC power cord
5
Identification of controls
See the page in for details.
*PHONES jack
24
Model MW27FP1 has a door on the front panel. Please open it to access the *PHONES jack and the *AUDIO (L/R)/VIDEO IN
(LINE IN 2) jacks.
Illustration of MW20FP1
This owner’s manual uses the illustrations of MW20FP1. MW27FP1 model has some differences in appearance
from the illustrations. Example: Model MW27FP1 has a door on the front panel.
