User’s Manual 2-4
The Grand Tour
Right side

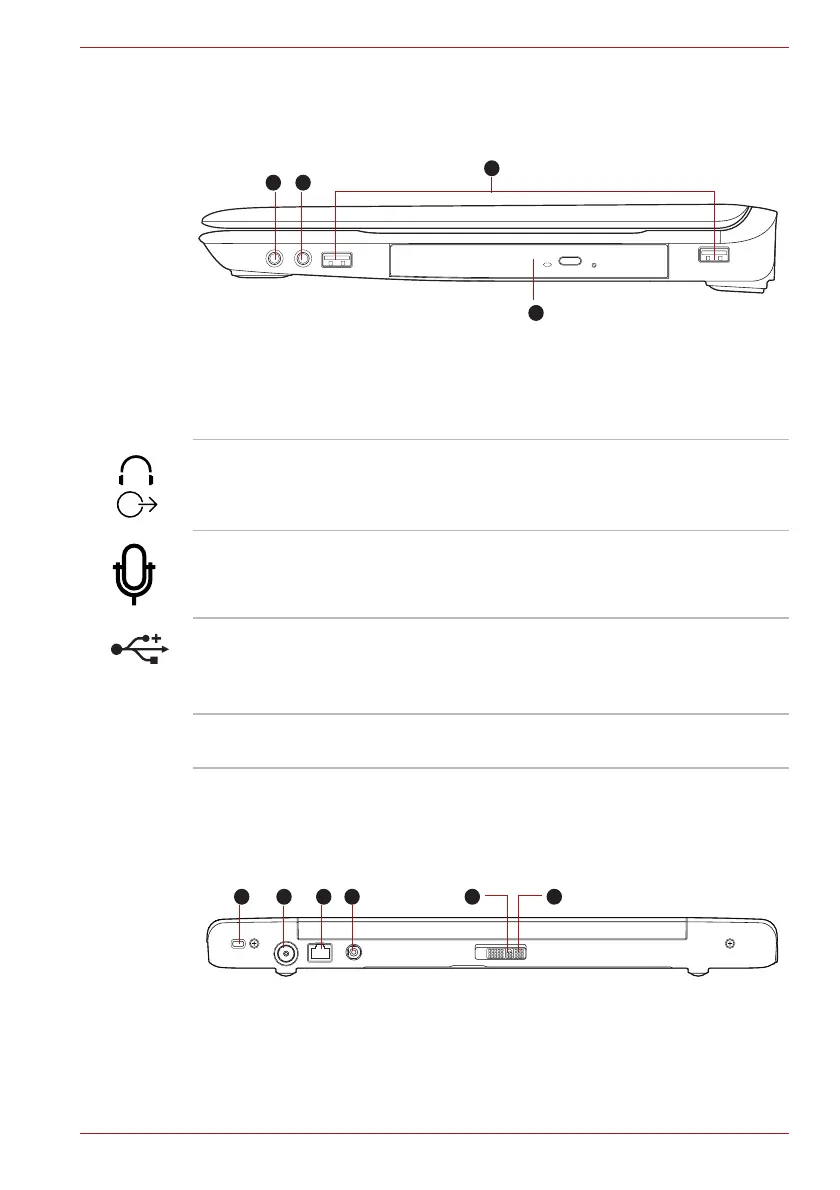

The following figure shows the computer’s right side.
Figure 2-3 The right side of the computer
Back
The following figure shows the computer’s back.
Figure 2-4 The back of the computer
1. Headphone and Line out jack 3. Universal Serial Bus (USB 2.0) ports
2. Microphone and Line in jack
4. Optical disc drive
Headphone and Line
out jack
This jack allows you to connect a headphone, a
MiniDisc audio component or an external audio
device.
Microphone and Line
in jack
This jack allows you to connect a microphone or
an external audio device.
Universal Serial Bus
(USB 2.0) ports
Two Universal Serial Bus ports, which comply
with the USB 2.0 standard, are provided on the
right hand side of the computer.
Optical disc drive The computer is configured with a DVD Super
Multi drive or a BD-R/RE drive.
1. Security lock slot
4. DC IN 19V jack
2. TV antenna port (Is supported with some models)
5. Battery safety lock
3. LAN jack 6. Battery release latch
