– 15 –
RAS-10YKH-ES / RAS-10YAH-ES

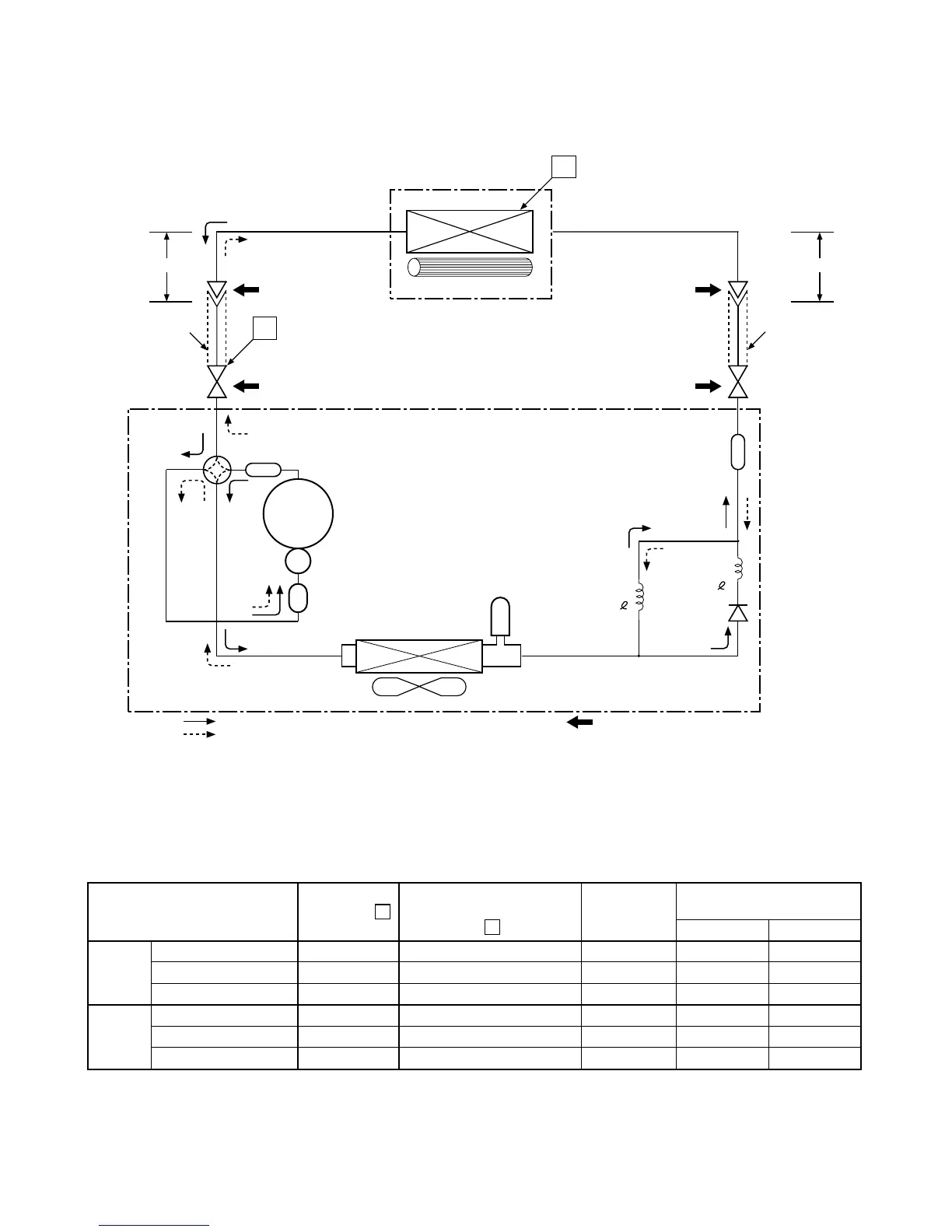

Note : Measure the heat exchanger temperature at the center of U-bend. (By means of TC sensor.)
*
1 : During heating overload, the high temperature limit control operation is included.
Evaporator
Indoor unit
Cross flow fan
Cooling
Heating
4-way valve
Heating
Cooling
Compressor
Accumulator
Condenser
Propeller fan
Outdoor unit
Dryer
Capillary tube
ø0,8x400
PA118X1T-4FZ
Cooling
Heating
Mark( )means check points of Gas Leak
O.D.:9,52mm O.D.:6,35mm
Cooling
Heating
Packed valve
(ø9,52)
Packed valve
(ø6,35)
0,39m
(Connecting pipe)
ø9,52
0,49m
(Connecting pipe)
ø6,35
T
P
Refrigerant
R-410A 0,69kg
Capillary tube
ø1,2x400
Muffler
Muffler
Ambient temp.
conditions DB/WB (°C)
50Hz
Standard
pressure
P
(MPaG)
Surface temp. of heat
exchanger interchanging
pipe
T
(°C)
Fan speed
(indoor)
Indoor Outdoor
Standard 2,5 43,0 High 20/ - 7/6
High temperature
*
13,1–3,6 51,0–58,0 Low 27/ - 21/15Heating
Low temperature 2,2 36,0 High 20/ - -10/-10
Standard 0,9 10,0 High 27/19 35/24
High temperature 1,1 16,0 High 32/23 43/26Cooling
Low temperature 0,6 2,0 Low 21/15 21/15
