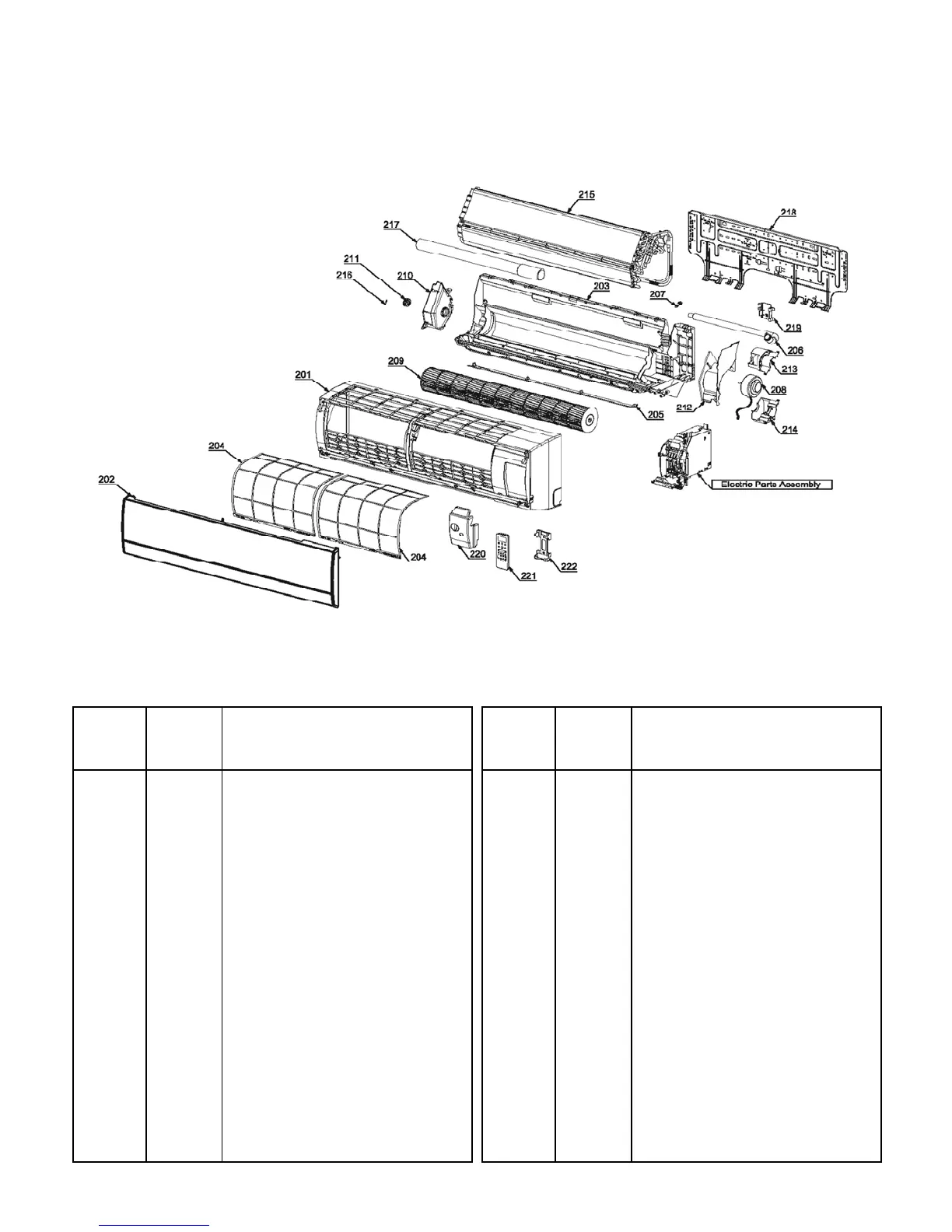

11-2. Indoor Unit
Location Part Location Part
No. No. No. No.
201 43T00524 FRONT PANEL ASSY 211 43T22312 BEARING ASSY, MOLD
(For RAS-18,24SKP-ES) 212 43T39020 BAND, MOTOR, LEFT
201 43T00525 FRONT PANEL ASSY 213 43T39022 BAND, MOTOR, RIGHT UP
(For RAS-18,24SKHP-ES) 214 43T39023 BAND, MOTOR, RIGHT DOWN
202 43T09445 GRILLE OF AIR INLET ASSY 215 43T44429 REFRIGERANT CYCLE ASSEMBLY
203 43T03374 BACK BODY ASSY 216 43T19333 HOLDER, SENSOR
(For RAS-18,24SKP-ES) 217 43T49010 PIPE, SHIELD
203 43T03377 BACK BODY ASSY 218 43T82008 PLATE, INSTALLATION
(For RAS-18,24SKHP-ES) 219 43T49043 HOLDER, PIPE
204 43T80019 AIR FILTER 220 43T62031 COVER, TERMINAL
205 43T09040 LOUVER, HORIZONTAL 221 43T69615 WIRELESS REMOTE CONTROL
206 43T70313 HOSE, DRAIN (For RAS-18,24SKHP-ES)
207 43T79313 CAP, DRAIN 221 43T69616 WIRELESS REMOTE CONTROL
208 43T21371 MOTOR, FAN (For RAS-18,24SKP-ES)
209 43T20016 FAN, ASSY, CROSS FLOW 222 43T83003 HOLDER, REMOTE CONTROL
210 43T39335 BASE BEARING ASSY
Description Description
