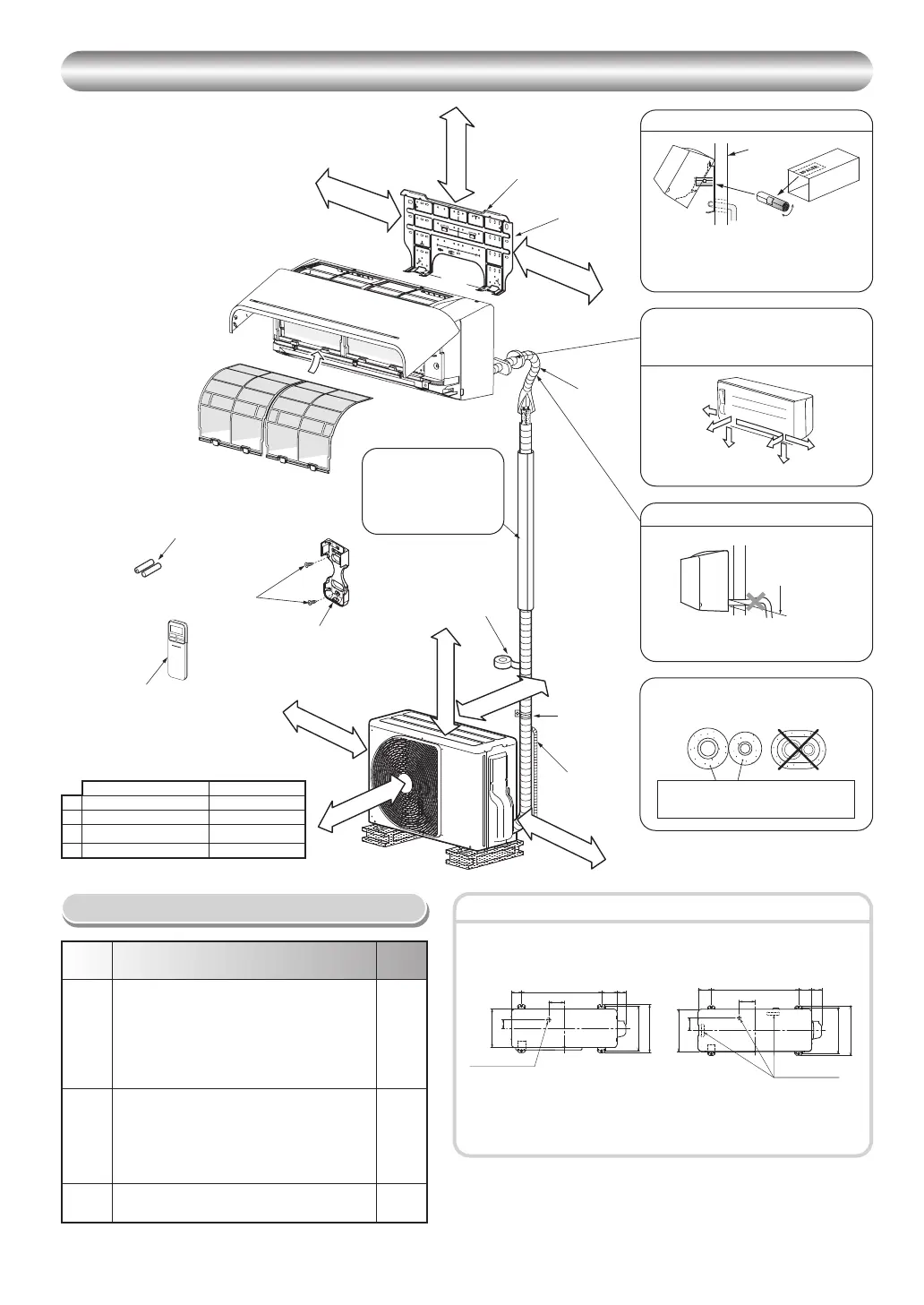

INSTALLATION DIAGRAM OF INDOOR AND OUTDOOR UNITS
INSTALLATION DIAGRAM OF INDOOR AND OUTDOOR UNITS
Part
code
Parts name Q’ty
A
Refrigerant piping
Liquid side : Ø6.35 mm
Gas side : Ø9.52 mm
(RAS-B05, 07, 10, 13B2KVG-E)
: Ø12.70 mm
(RAS-B16B2KVG-E)
(RAS-B18B2KVG-E)
One
each
B
Pipe insulating material
(polyethylene foam, 6 mm thick)
For RAS-B05, 07, 10, 13B2KVG-E
(polyethylene foam, 8 mm thick)
For RAS-B16B2KVG-E
RAS-B18B2KVG-E
1
C
Putty, PVC tapes
One
each
Optional Installation Parts
3
The auxiliary piping can be connected to
the left, rear left, rear right, right, bottom
right or bottom left.
Right
Rear
right
Bottom
right
Rear
left
Bottom left
Left
Insulate the refrigerant pipes separately
with insulation, not together.
6 mm or 8 mm thick heat resisting
polyethylene foam
1
Batteries
6
Flat head
wood screw
4
Remote controller
holder
Vinyl tape
Apply after carrying
out a drainage test.
2
Wireless remote
controller
Saddle
Extension drain hose
(Not available,
provided by installer)
Shield pipe
(Attach to the front panel.)
Air fi lter
Hook
Installation
plate
Hook
65 mm or more
300 mm or more
300 mm or more
C mm or more
F mm or more
E mm or more
D mm or more
C mm or more
Cut out a piece of SPACER from
indoor unit packaging box, roll it and
insert between the indoor unit and wall to
tilt the indoor unit for better operation.
For the rear left, bottom left and left piping
Wall
Make sure to run the drain hose sloped
downward.
Do not allow the drain hose to get slack.
Cut the piping
hole sloped
slightly.
Refrigerant piping
must be protected from
physical damage.
Install a plastic cover or
equivalent.
RAS-05, 07, 10, 13B2AVG-E RAS-16, 18B2AVG-E
C 600 600
D 400 600
E 45 100
F 100 100
• Secure the outdoor unit with fi xing bolts and nuts if the unit is likely to be
exposed to a strong wind.
• Use Ø8 mm or Ø10 mm anchor bolts and nuts.
Fixing bolt arrangement of outdoor unit
When using a multi-system outdoor unit, refer to the Installation Manual
provided with the model concerned.
RAS-05, 07, 10, 13B2AVG-E RAS-16, 18B2AVG-E
Drain outlet
500
279
243
52
97
302
9863 55
85
290
600
108
90 91 70
342
319
Drain outlet
