21
EN
Selecting Progressive Scan (576p/480p or
Interlaced 576i/480i) Playback
• If your TV is compatible with progressive scanning
(576p/480p), connect the TV to the COMPONENT
VIDEO OUT jacks of this unit and set “Video Out”
setting to “Component (Progressive)” in “Setup”
menu (See page 90.). Next, set your TV to the
progressive scan mode.
• If your TV is not compatible with progressive scan,
set “Video Out” setting to “Component (Interlace)”.
• Use a commercially available adaptor if the Video
input jacks of your TVs or monitors are the BNC
type.
• Only component and HDMI connections are
compatible with the Progressive Scan.

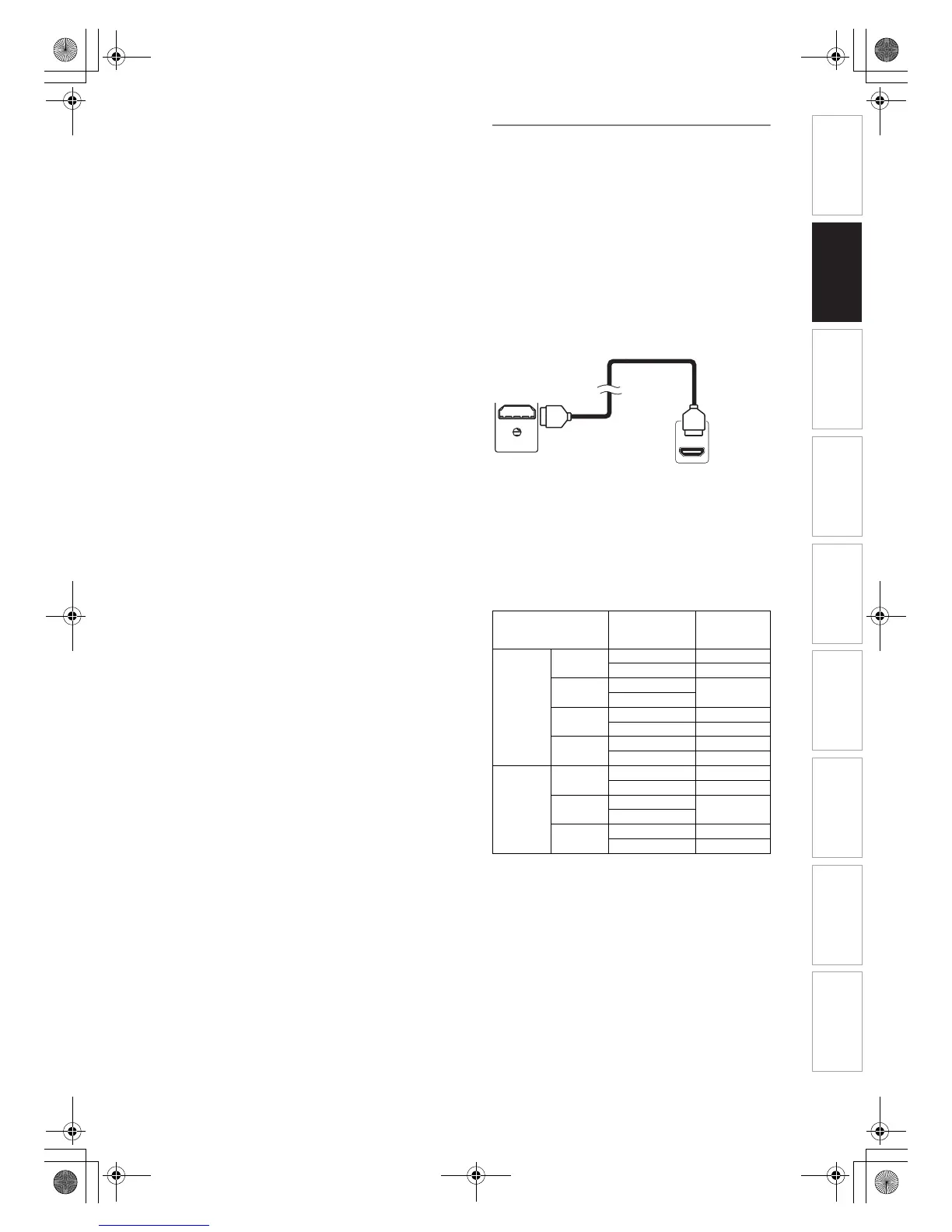

Connecting to a TV with an HDMI
Compatible Port
[HDMI CONNECTION]
A simple 1-cable connection with a device having an
HDMI (high-definition multimedia interface) connector
allows digital transfer of both digital video signals and
multi-channel audio signals. This is the best method
to connect this unit. It can minimise the deterioration
of image quality.
Use the HDMI cable (commercially available) for
connection.
Connect the HDMI output jack of this unit to the HDMI
input jack of TV.
Selecting HDMI mode
Press [HDMI] to select the HDMI output mode. The
output mode changes as follows every time [HDMI] is
pressed. 576p (PAL) / 480p (NTSC) J 720p J 1080i
J 1080p (An HDMI mode that is not supported by the
display device will be skipped.)
Actual Output Modes by Media
For Audio CD, Video CD and MP3 files, 2 channel
PCM will be output regardless of the “Dolby Digital”
setting.
If the connected device is not compatible with HDMI
BITSTREAM, audio will be output as PCM even if you
select “Stream” in “Dolby Digital” setting.
(See page 87.)
Audio recording format
of the disc
Dolby Digital /
DTS / MPEG
setting of this unit
Actual output
DVD-video
Dolby
Digital
PCM 2channel PCM
Stream Dolby Digital
LPCM
PCM
2channel PCM
Stream
DTS
ON DTS
OFF -
MPEG
PCM 2channel PCM
Stream MPEG
DivX
®
Dolby
Digital
PCM 2channel PCM
Stream Dolby Digital
MP3
PCM
2channel PCM
Stream
MP2
PCM 2channel PCM
Stream MPEG
HDMI IN
HDMI OUT
TV
To HDMI
input jack
this unit
HDMI cable (not supplied)
Introduction Connections Basic Setup Playback Editing OthersFunction SetupRecording VCR Functions
E3NG1BD_EN.book Page 21 Thursday, April 24, 2008 3:34 PM
