23
EN

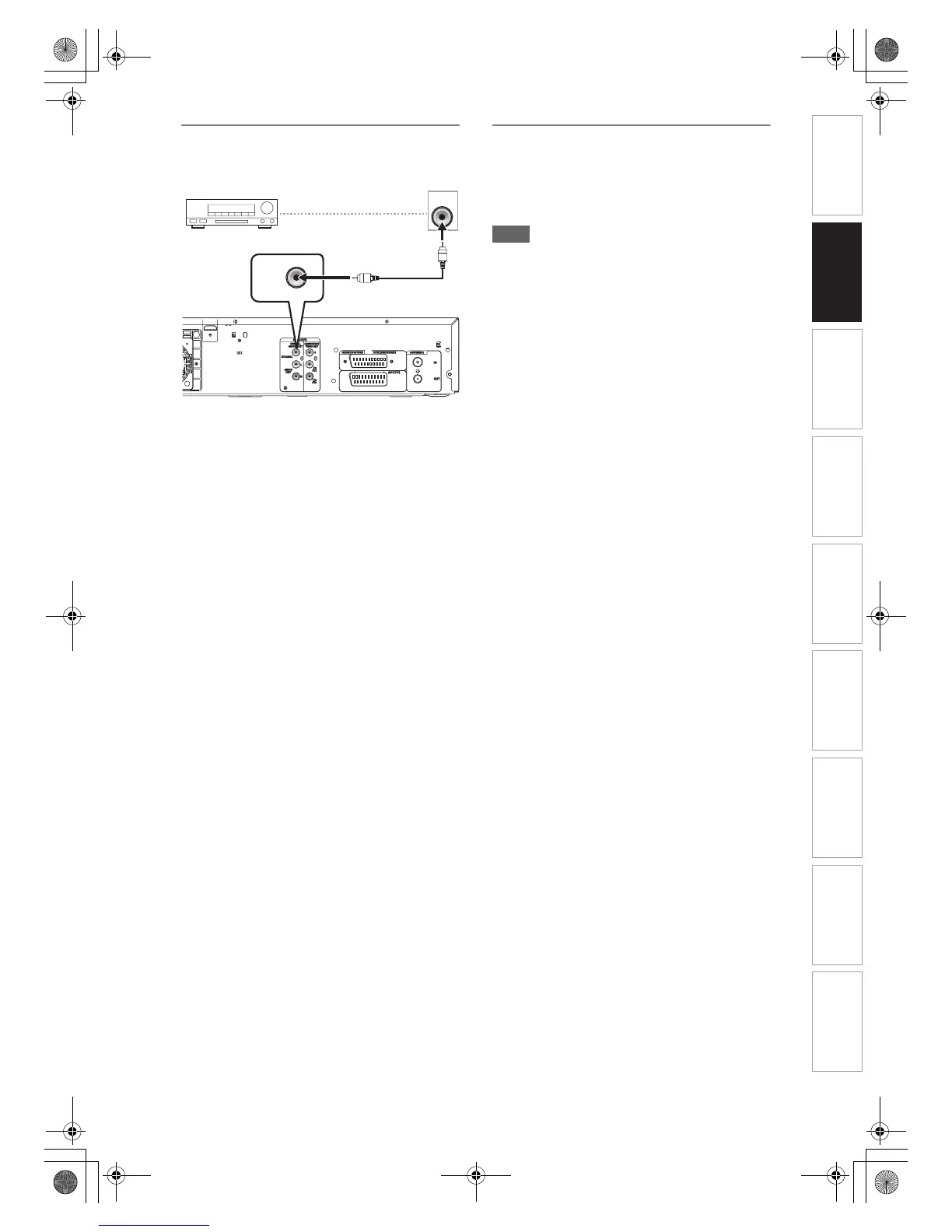

Digital Audio for Better Sound Quality
The connections illustrated above are
optional for better sound.
1 For clear digital sound quality, use
the DIGITAL AUDIO OUT (COAXIAL)
jack to connect your digital audio
equipment.
If the audio format of the digital output does not
match the capabilities of your receiver, the
receiver will produce a strong, distorted sound or
no sound at all.
Connecting a Dolby Digital™ decoder, DTS
decoder or MPEG decoder
• Connecting multi-channel Dolby Digital decoder
allows you to enjoy the Multi-channel Dolby Digital
surround system as well as DTS decoder, Multi-
channel surround system.
• After connecting to a Dolby Digital decoder, set
“Dolby Digital” to “Stream” in “Audio Out” menu.
(See pages 86 - 87.)
• After connecting to a DTS decoder, set “DTS” to
“ON” in “Audio Out” menu. (See pages 86 - 87.)
• After connecting to a MPEG decoder, set “MPEG” to
“Stream” in “Audio Out” menu. (See pages 86 - 87.)
Connecting to an MD deck or DAT deck
• The audio source recorded in Dolby Digital Multi-
channel surround format cannot be recorded using
an MD or DAT deck as a digital sound.
• If not connected to a Dolby Digital decoder, set
“Dolby Digital” to “PCM” in “Audio Out” menu.
Playing back a DVD using incorrect settings may
generate noise distortion and damage speakers.
• Set “Dolby Digital” and “MPEG” to “PCM” and set
“DTS” to “OFF” in “Audio Out” menu for connecting
to an MD or DAT deck.
• You can use AUDIO OUT (L\R) jacks for the
connection of your audio system.
After You Have Completed
Connections
Switch the input selector on your TV to an appropriate
external input channel. For details, refer to the
Owner’s Manual of your TV.
Note
• Connect this unit directly to the TV. If the AV cables
are connected to a VCR, pictures may be distorted
due to the effects of the copy protection system.
HDMI OUT
COAXIAL
COAXIAL
Dolby Digital decoder,
DTS decoder or
MPEG decoder, etc.
Digital audio
input jacks
Coaxial cable
(not supplied)
Introduction Connections Basic Setup Playback Editing OthersFunction SetupRecording VCR Functions
E3NG1BD_EN.book Page 23 Thursday, April 24, 2008 3:34 PM
